LS163A Transmission Meter

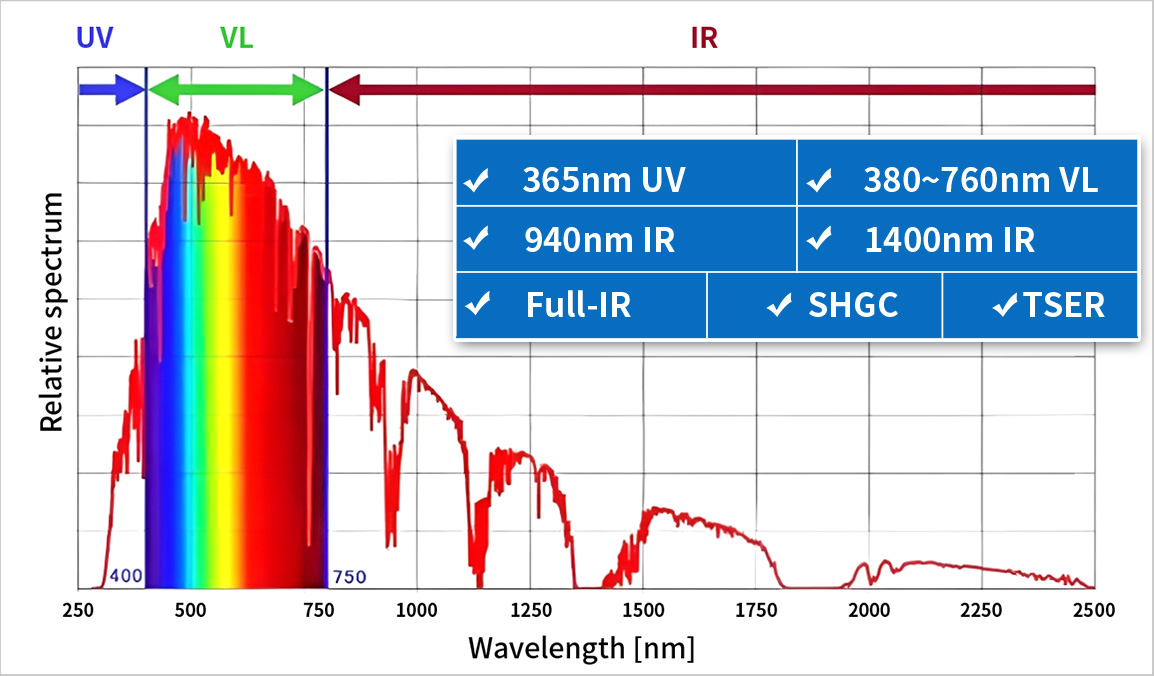

Test seven parameters: visible light, UV, IR 940nm, IR 1400nm, Full-IR, TSER, SHGC
Multiple display modes are available for free switching
6mm test slot supports testing of thick materials

Request A Quote User Manual

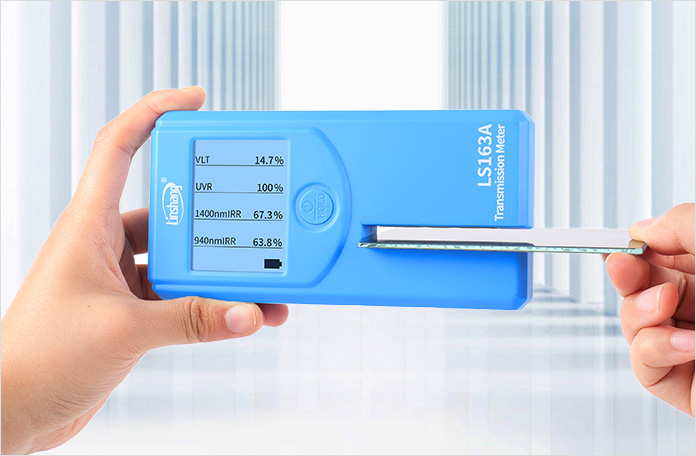

LS163A Transmission Meter is designed to measure the optical properties of uniform and transparent materials such as solar films, coated glass, insulated glass, PC materials, and automotive side windows. It is widely used in glass manufacturing, car 4S shops, and car detailing shops.

The instrument measures seven optical parameters: visible light, UV, IR 940nm, IR 1400nm, full IR, TSER, and SHGC. Displayed parameters can be freely combined according to user needs.

LS163A Transmission Meter Feature Video

Application

Parameters

Parameter Name	Parameter Value
UV Peak Wavelength	365nm
IR Peak Wavelength	Peak wavelength 940nm, 1400nm and Full IR
Visible light	380-760nm, conform to the CIE photopic luminosity function
Accuracy	±2% (Colorless and transparent material)
Resolution	0.1%
Solar Heat Gain Coefficient(SHGC)	0.000 ~ 1.000
Total Solar Energy Rejection(TSER)	0.0%-100%
Test Slot	6mm 58mm (WD)

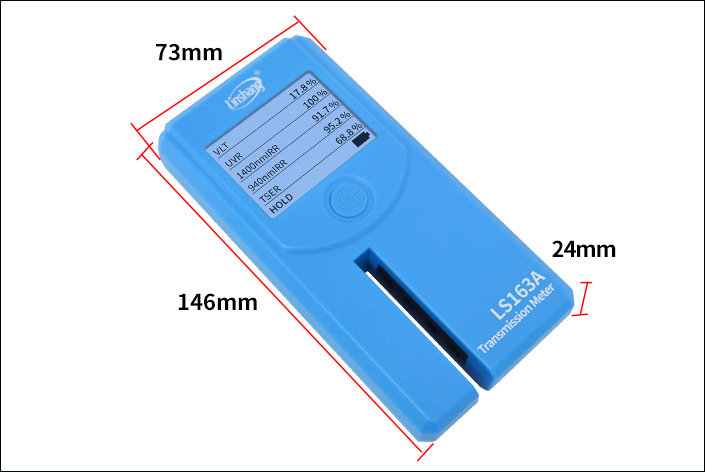

Dimension	146 mm ×73 mm ×24 mm (LWH)
Weight	187g (Include Batteries)
Display	128*128 Dot matrix LCD
Power Supply	4*AAA alkaline battery
Supply Voltage	DC5V
Operating Current	10mA
Operating Power Consumption	50mW

Feature

Measures seven optical parameters

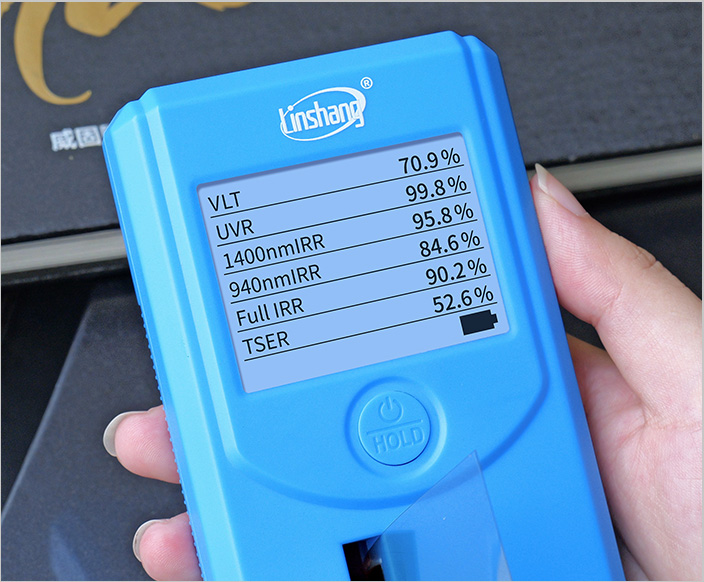

LS163A Transmission Meter measures seven optical parameters: visible light, UV, IR 940nm, IR 1400nm, full IR, Total Solar Energy Rejection (TSER), and Solar Heat Gain Coefficient (SHGC).

Easy operation, fast measurement

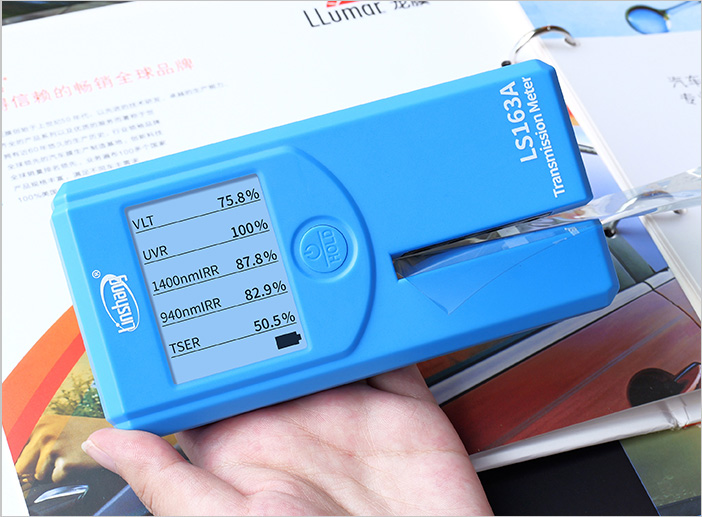

Single-button design for simple use. Just place the material into the test slot to instantly view results.

Comprehensive evaluation of heat insulation performance

By testing TSER and SHGC values, it allows a complete evaluation of the solar film’s heat insulation performance.

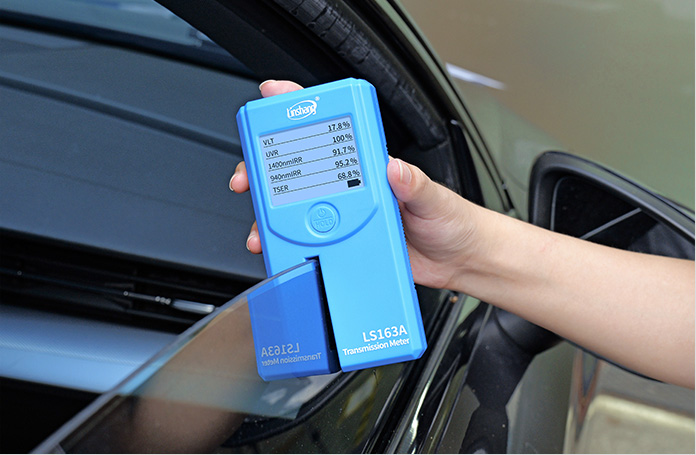

Parallel light path, side windshield can be tested

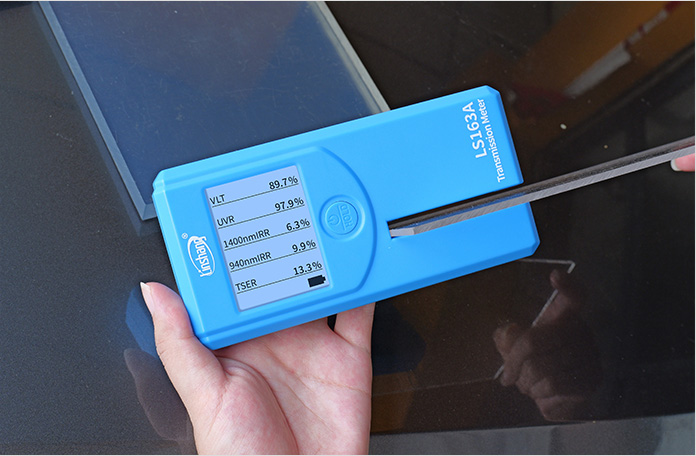

The LS163A Transmission Meter boasts parallel light path design, with a test slot wide 6mm, the instrument can also test large thickness materials such as car side windshield.

Free switching of multiple display modes

Users can freely switch between rejection rate and transmittance display modes to meet different testing needs.

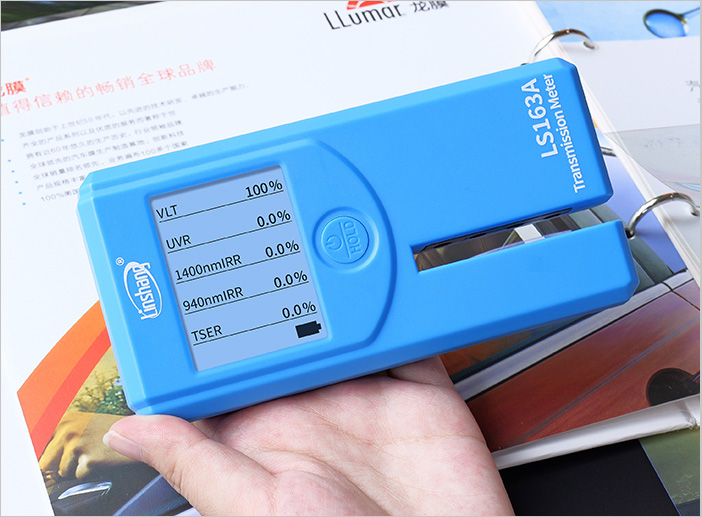

Auto-rotating display interface

The display automatically rotates according to the testing direction, making it easy to read data from any angle.

Real-time automatic calibration function

Equipped with real-time dynamic self-calibration to ensure more accurate and reliable test results.

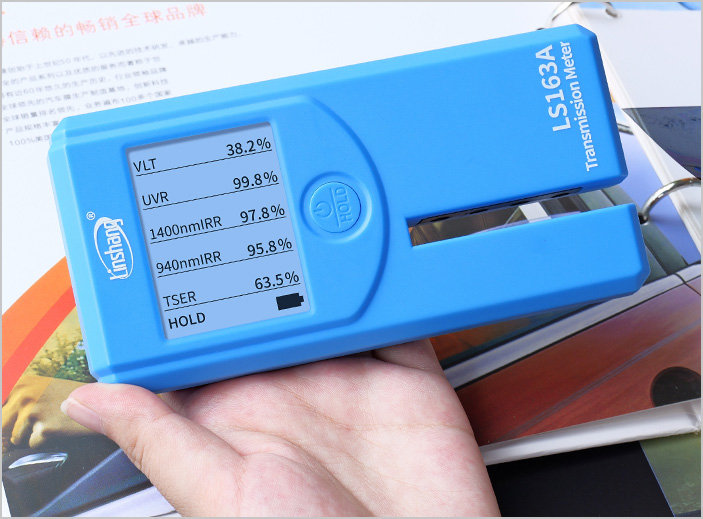

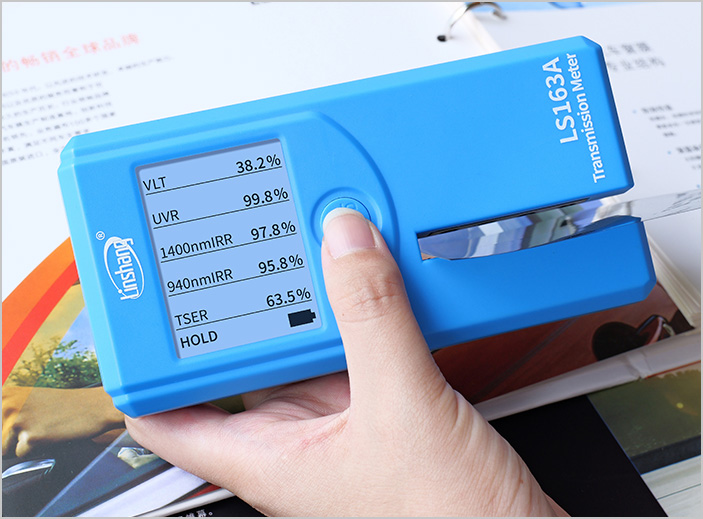

Lock testing datas by pressing "Hold" button

The window film transmission meter has data lock function. Press the "Hold" button after testing, the data will remain on the interface after taking away the tested materials.
