LS312H Wide-Range Salinometer

Name: LS312H Salinometer
Brand: Linshang
SKU: LS312H
Availability: InStock

Dedicated to large-range, high-salinity detection scenarios.

Wide measurement range, 0-26% salinity coverage

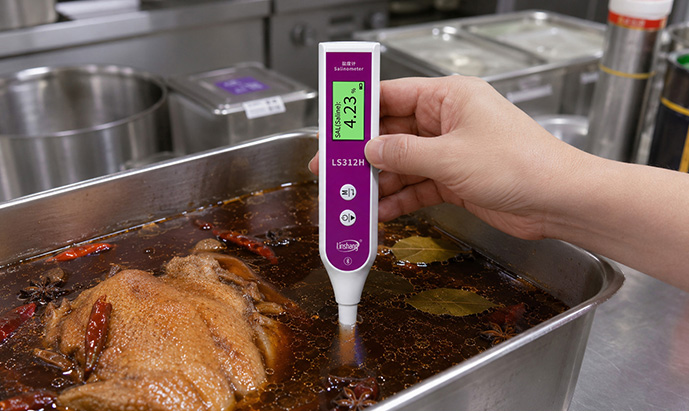

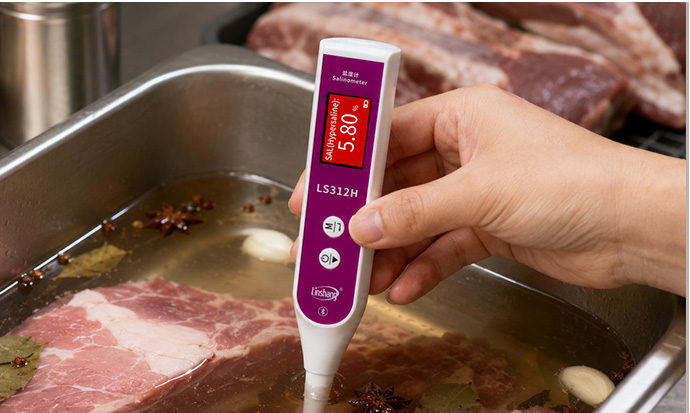

High-salinity detection for catering brine/marinating/food processing
Simultaneously measures six parameters including salinity, hardness, TDS, etc.
Three screen colors to quickly distinguish salinity levels

Request A Quote User Manual

Overview

The LS312H is a wide-range salinometer designed specifically for high-salinity scenarios, with a salinity detection range covering 0-26%, accurately measuring everything from everyday freshwater to high-concentration brine and pickling water. It is widely applicable in scenarios such as restaurant brine, pickling, and food processing. The instrument can measure six core parameters with one press: salinity, hardness, specific gravity, TDS, conductivity, and temperature. Additionally, the screen displays three different backlight colors based on salinity levels—freshwater, saline water, and hypersaline water—making the measurement results intuitive and easy to understand. Powered by dry batteries, it can be used immediately in kitchens, workshops, and outdoor sites, adapting to various testing scenarios.

LS312H Features Video

Product Applications

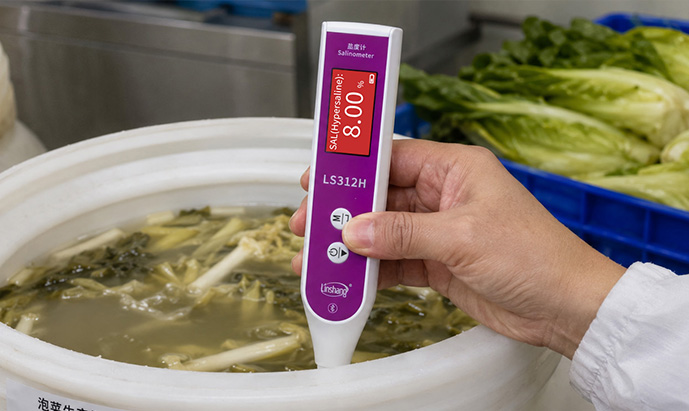

Saltiness detection in pickled vegetable processing

Product parameters

Parameter name	Parameter value
Test object	Pickling water, seawater, brine, food processing, etc.
Detection parameters	SAL (Salinity), GH (General Hardness), S.G. (Specific Gravity), TDS (Total Dissolved Solids), EC (Electrical Conductivity), T (Temperature)
Measurement range	SAL(0-26%)、GH(0-1000ppm)、S.G.(0.9800-1.2000)、 TDS(0-2000ppm)、EC(0-4000us/cm)、T(0-99℃)
Resolution	SAL(0.01%)、GH(1ppm)、S.G.(0.0001)、TDS(1ppm)、EC(1us/cm)、T(0.1℃)
Measurement accuracy	SAL：0-5%：±0.25%；5-15%：±5%H；15-26%:±10%H, H is the standard value GH：±5%H，H is the standard value S.G.：±0.002 TDS： 0-100ppm：±5ppm；100-2000ppm：±5%H，H is the standard value EC：0-200us/cm：±10us/cm；200-4000us/cm：±5%H，H is the standard value T：±2℃
Display screen	240*135 1.14-inch TFT color screen
Power supply mode	2 AA alkaline dry batteries
Size	190.328.723.0 mm
Weight	Approximately 71.1g
Operating temperature range	0~99℃
Storage temperature range	-10~60℃, 0~85%RH (no condensation)
Supply voltage	DC3V
Operating current	20mA
Operating power consumption	60mW

Product Features

0-26% wide range, high-salinity water bodies easily measured

The salinity detection range can reach 0-26%, covering measurements from freshwater, ordinary saline water to high-concentration brine and pickling water. One instrument covers the entire salinity detection process, eliminating the need for multiple instruments with different measurement ranges.

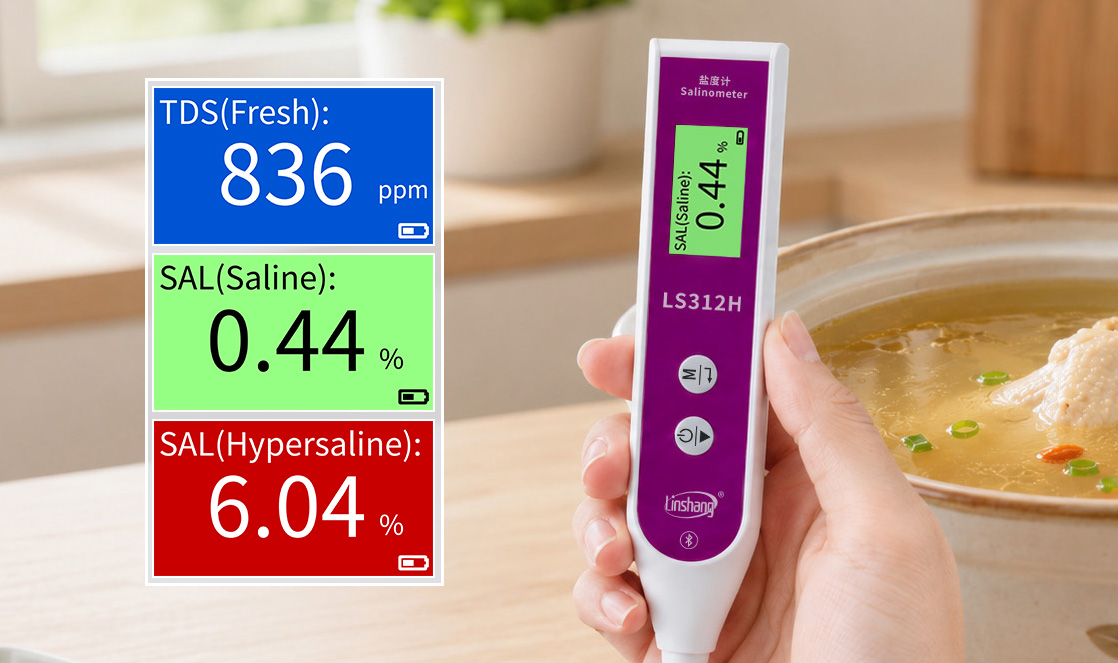

Three-color display, intelligently determines salinity level.

Automatically determines the salinity level based on the measured value and switches the screen backlight color accordingly: fresh water displays blue, salt water displays green, and hypersaline water displays red. During batch testing, it quickly determines whether salinity exceeds the standard, improving quality inspection efficiency.

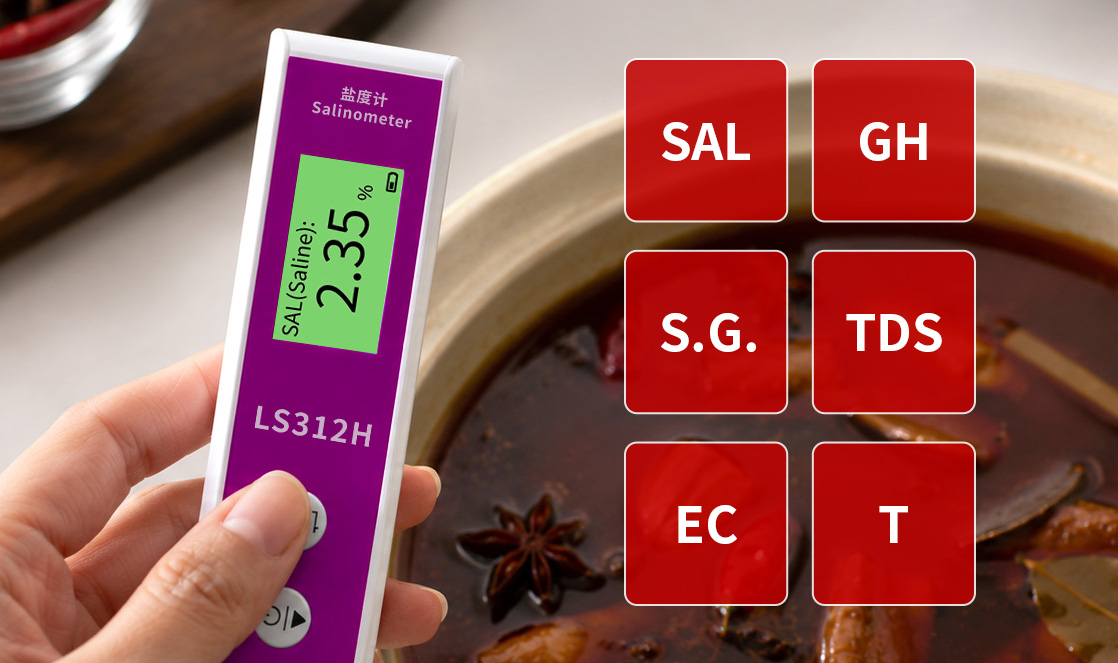

One-click measurement of multiple parameters and indicators.

With a simple press, you can measure six key parameters including salinity, hardness, specific gravity, TDS, conductivity, and temperature, helping you quickly understand the water quality and salinity conditions.

Adopts a high-temperature-resistant probe design.

The probe can withstand temperatures up to 99°C and can directly test high-temperature soup bases and similar materials.

Dry battery powered, usable anywhere.

Automatic temperature compensation ensures accurate measurement.

Regardless of how the ambient temperature changes, the instrument maintains excellent stability and measurement accuracy, eliminating errors caused by temperature fluctuations.

IP67 waterproof probe, adaptable to various environments

The probe achieves an IP67 waterproof rating, making it suitable for long-term use in high-humidity and high-salt environments while maintaining stable performance, resulting in a longer equipment service life.
