I. LS126A UV Light Meter Introduction

LS126A UV intensity meter is mainly used to measure the intensity and energy of UVA band ultraviolet LED light source. UVA band LED light sources are mainly 365nm, 375nm, 385nm, 395nm, 405nm and other bands. These light sources are mostly used in curing, exposure and other industries. LS126A UV light meter has a wide spectral response and can test any wavelength from 365nm to 405nm. In addition, it adopts an ultra-small probe design with a probe width of only 7.2mm, which is very suitable for measuring narrow spaces where conventional probes are difficult to place.

LS126A UV intensity meter display
LS126A UV intensity meter display

II. LS126A UV Light Meter Parameters

Parameters LS126A UV Light Meter
Spectral response 340nm-420nm, calibrated with 395nm UV LED light source
Measuring range 0 - 20000mW/cm2
Resolution 1mW/cm2
Energy measuring range 0-9999999mJ/cm2
Record time 0-99999s
Accuracy ±10 %
Sampling speed 2048times/second
Optional unit mW/cm2 (default), W/cm2, W/m2
Test Hole Diameter ¢=3mm
Probe size 28mm ×7.2mm ×6.5mm(L*W*H)
Host size 148mm long ×76mm wide ×26mm high
Probe wire length 0.8m
Weight About 232 (with battery)
Display 240*160 dot matrix LCD
Battery 4 AAA alkaline dry batteries
LS126A single channel UV light meter appearance
LS126A single channel UV light meter appearance

III. LS126A UV Light Meter Characteristics

1. The UV measurement device probe adopts ultra-small size design, which can measure the narrowest width of 7.2 mm.

LS126A Ultra-small Ultraviolet Radiance Meter Probe Size Display
LS126A Ultra-small Ultraviolet Radiance Meter Probe Size Display

2. High-speed acquisition, 2048 samples per second, the UV radiometer can accurately calculate UV energy.

3. Data statistics function, the maximum value, minimum value, average value, and measurement time will be displayed on the interface.

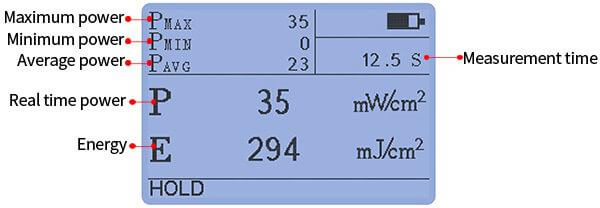

LS126A single-channel UV radiometer measurement interface
LS126A single-channel UV radiometer measurement interface

4. It is suitable for the detection of the intensity and energy value of LED light sources in narrow space of 365nm, 375nm, 385nm, 395nm, 405nm and other bands.

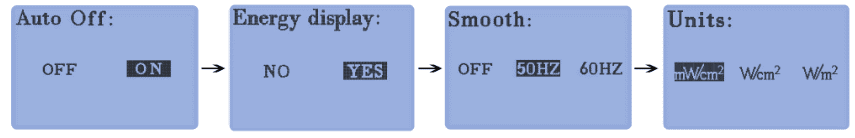

5. Long press the power button in the off state to enter into the following parameter setting interfaces. Customers can set parameters according to their needs.

IV. LS126A UV Light Meter Operation Video

V. LS126A UV Light Meter Packaging Details

No. Item Quantity Unit
1 LS126A UV light meter 1 Pcs
2 AAA battery 4 Pcs
3 User manual 1 Pcs
4 Certificate/Warranty card 1 Pcs
6 Packing box dimension 34*29*9 cm(L*W*H) 1 Pcs
LS126A UV light meter package
LS126A UV light meter package

VI. LS126A UV Light Meter After-Sales Service

  1. The meter has one-year warranty. If the gauge works abnormally, pleasesend the whole gauge to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

For more questions about the selection of the Linshang UV light meter, please click the article below for details

"UV Light Meter Selection and FAQ"

VII. FAQ about LS126A UV Light Meter

  1. 1. The difference between LS126A and LS125 UV light meters (UVALED-X0 and UVALED-X1 probe)

    The functions of the LS126A UV light meter and the LS125 UV light meter host + UVALED-X0 or UVALED-X1 probe are basically the same. The probe width of LS126A is only 7.2mm, and the diameter of the test hole is 3mm, which is suitable for UV light source detection in a narrow space; the test hole diameter of the UVALED-X0 probe is 10mm, which is suitable for the detection of UV LED plane light sources; the test hole diameter of UVALED-X1 probe is 1mm, it's suitable for the detection of UV LED point light sources.
