I. LS182 Solar Film Transmission Meter Introduction

Linshang LS182 solar film transmission meter is a device that can test the SHGC value (that is, the total solar transmittance, also called the solar heat gain coefficient) 950nm, 1400nm and Full IR rejection rate, 365nm ultraviolet rejection rate and 550nm visible light transmittance. The window tint meter is currently the most high-end solar film tester on the market. Three gears can be freely switched , the reading is convenient and easy to understand.

The testing principle of the LS182 solar film transmission meter is to use an ultraviolet light source, a visible light source and an infrared light source to illuminate the measured transparent materials. The sensor detects the incident light intensity of the light source and the light intensity after passing through the measured transparent materials. The ratio is the light transmittance, expressed as a percentage. For most solar films, the visible light is marked with the transmittance index and the infrared and ultraviolet rays are marked with the rejection rate index. The rejection rate = 100%-the transmittance.

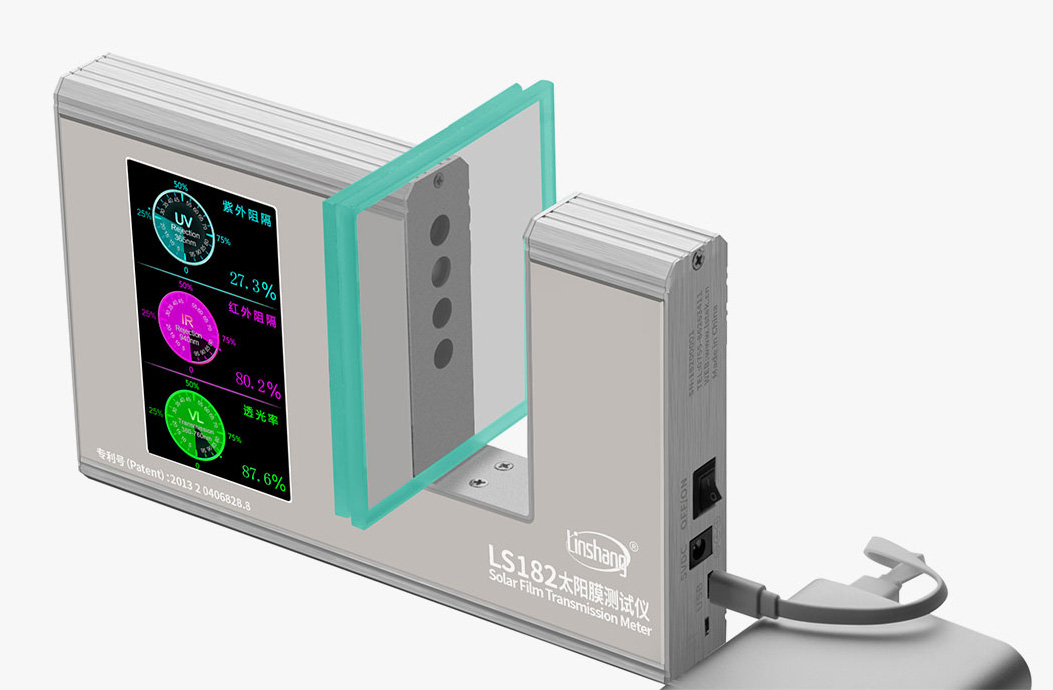

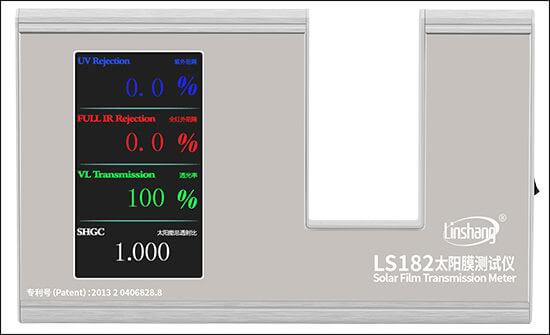

LS182 window tint meter display
LS182 window tint meter display

II. LS182 Solar Film Transmission Meter Application

The LS182 solar film transmission meter has a wide range of applications. Due to its parallel light path and wide test slot, it can be used in the solar film industry to test solar films, laminated glass, etc., as well as various large thickness materials. The SHGC transmission meter can test materials such as the glass and insulating glass and laminated glass in the building door and window industry. The instrument is suitable for using on solar film performance exhibition, production, quality inspection, inspection and other occasions.

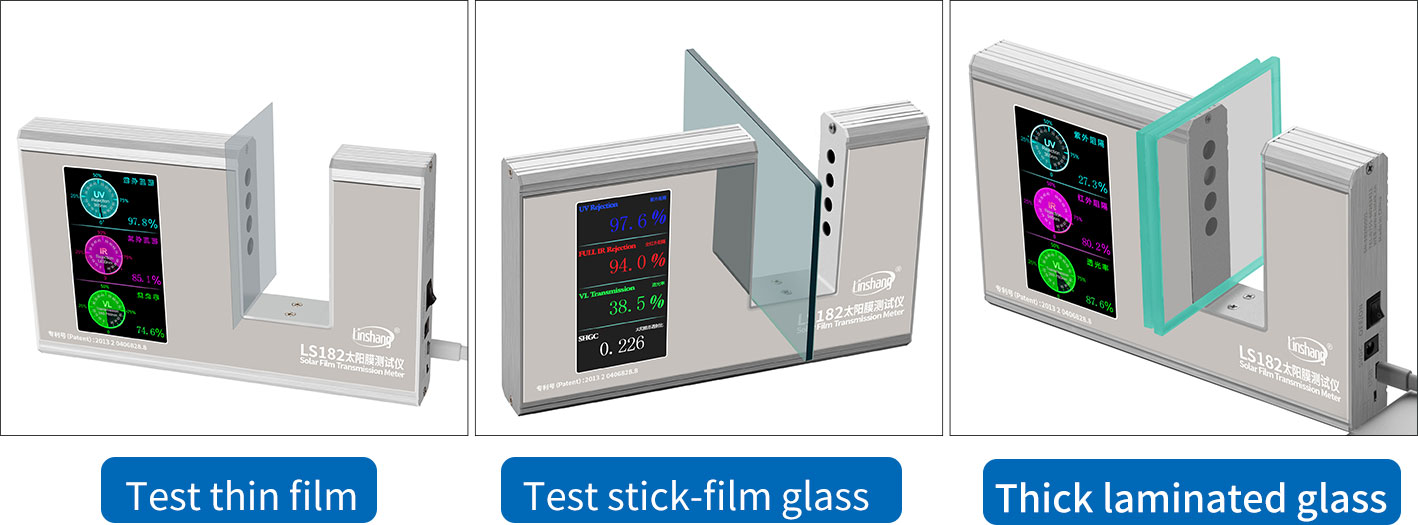

LS182 solar film tester test different materials
LS182 solar film tester test different materials

III. LS182 Solar Film Transmission Meter Parameters

UV peak wavelength 365nm
IR peak wavelength 940nm, 1400nm, Full IR and SHGC
Visible light peak wavelength  380-760nm
Resolution 0.1%
Measurement accuracy better than ± 2% (colorless and uniform transparent material)
Test card slot 47mm×91mm (W*H)
Weight about 590g
Dimension  216mm × 134mm × 29mm (L*H*W)
Power supply 5V AC/DC Adapter or mobile power (optional)

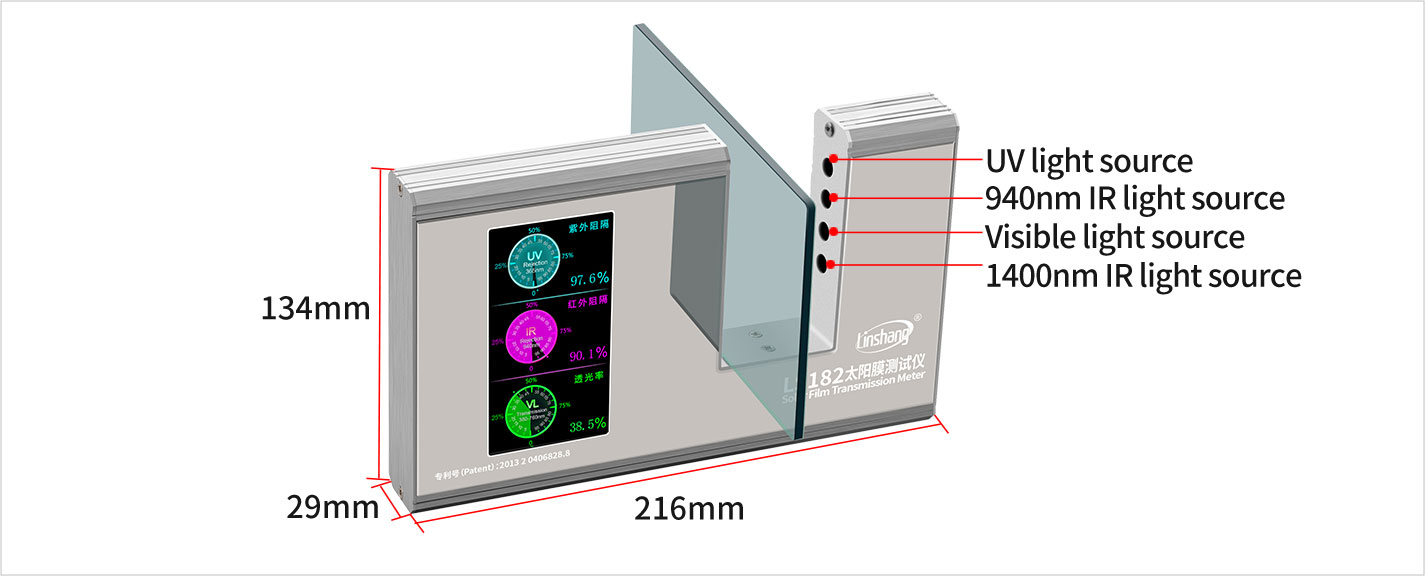

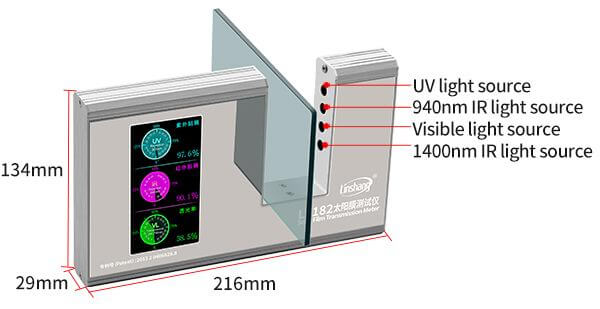

LS182 solar film transmission meter appearance
LS182 solar film transmission meter appearance

IV. LS182 Solar Film Transmission Meter Characteristics

1. The solar film transmission meter is suitable for testing the light transmittance, infrared and ultraviolet rejection rate of automobile film, explosion-proof film, architectural film, heat insulation film and stick-film glass.

2. Six parameters can be measured: 365nm UV rejection rate, 940nm, 1400nm and full infrared rejection rates, visible light transmittance and SHGC total solar transmittance.

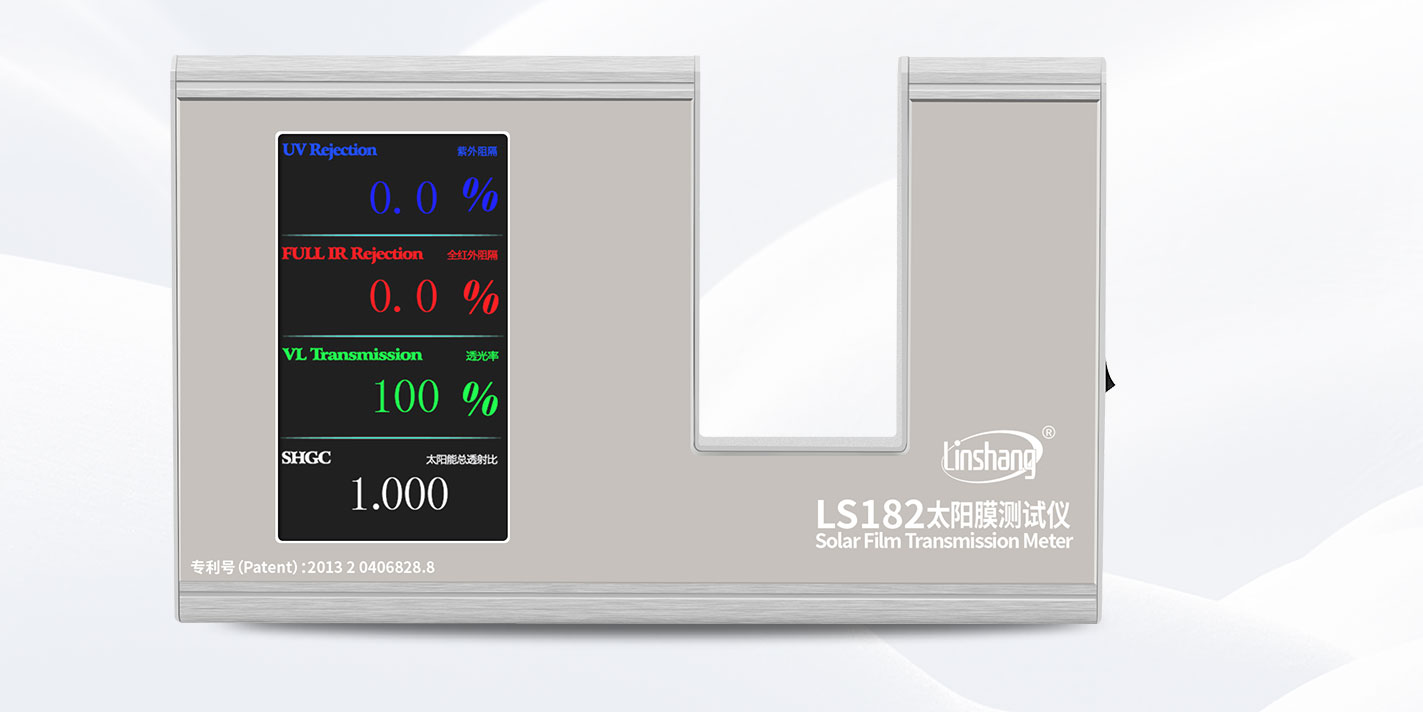

LS182 solar film tester of three gears
LS182 solar film tester of three gears

3. The solar film tester has large color LCD display interface which directly display the IR and UV rejection rate.

4. The parallel light path design is used to test large thickness glass with accurate data.

5. The solar film transmission meter has a real-time dynamic self-calibration function, which is automatically calibrated after power-on.

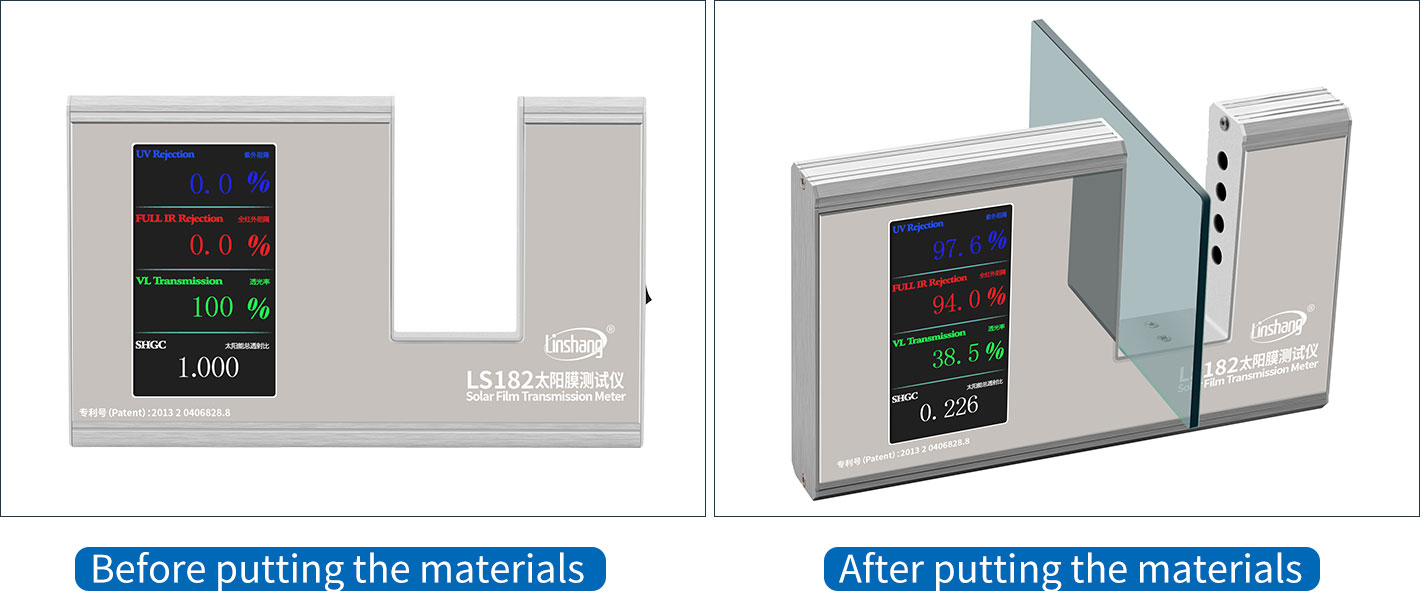

LS182 solar film tester pass self -calibration
LS182 solar film tester pass self -calibration

6. The SHGC transmission meter is powered by 5V power supply and has USB interface which can be directly connected to mobile power.

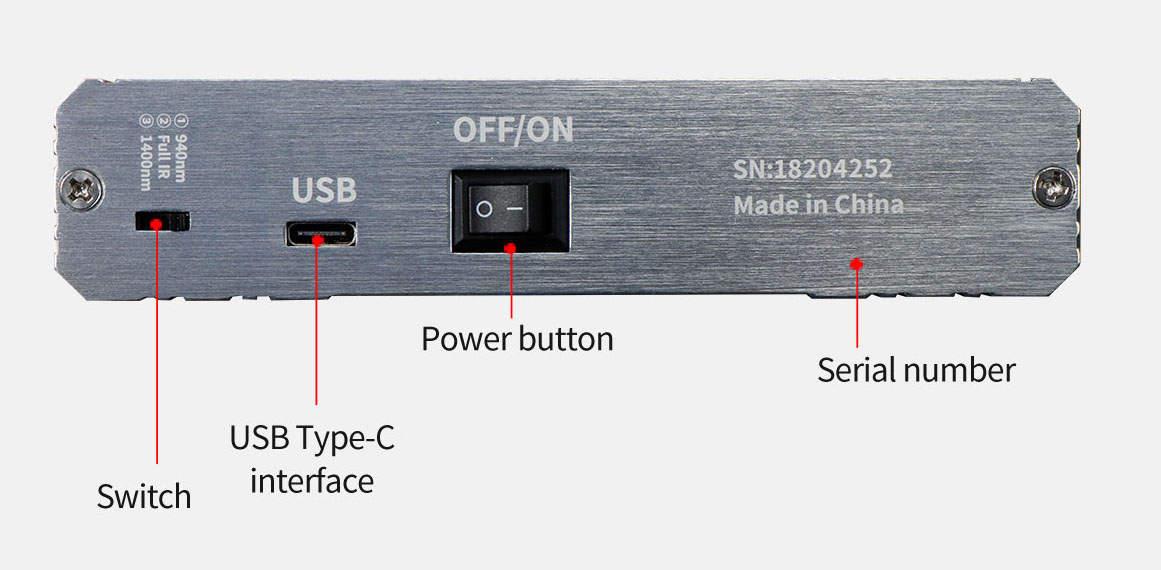

LS182 solar film tester side display
LS182 solar film tester side display

7. The SC shading coefficient can be converted by the SHGC value, SC = SHGC ÷ 0.87 (or 0.889).

8. A support rod is provided to tilt the instrument for easy reading.

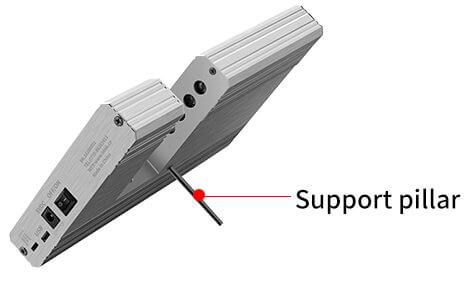

LS182 solar film tester support pillar
LS182 solar film tester support pillar

V. LS182 Solar Film Transmission Meter Qualification

Window tint meter certificate
Window tint meter certificate

VI. LS182 Solar Film Transmission Meter Operation Video

VII. LS182 Solar Film Transmission Meter Packaging Details

No. Description Quantity Unit
1 LS182 Solar Film Transmission Meter  1 pcs
2 DC5V Adapter  1 pcs
3 User Manual 1 pcs
4 Certificate / warranty card  1 pcs
5 Support pillar 1 pcs
6 Packing box dimension 34*29*9 cm(L*W*H) 1 pcs
window film transmission meter package
window film transmission meter package

VIII. LS182 Solar Film Transmission Meter After-Sales Service

  1. The meter has one-year warranty. If the instrument works abnormally, please send the whole instrument to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: https://www.linshangtech.com/

Service hotline: 0755-86263411 Email: sales21@linshangtech.com

For more information about the solar film transmission meter selection, please click article below for details

Window Film Transmission Meter Selection and FAQ

IX. FAQ about LS182 Solar Film Transmission Meter

  1. 1. Why is LS182 so expensive and what advantages does it have compared to other window film transmission meters?

    LS182 can measure six parameters: UV rejection rate, visible light transmittance, infrared 940nm and infrared 1400nm rejection rate, full infrared rejection rate and SHGC. Other instruments can only measure three of these parameters, so there is a difference in price;

    SHGC is the total transmittance of solar energy, through which the SC shading coefficient can be calculated;

    LS182 uses a large color LCD screen, which can switch between graphic display and percentage data, making the reading more intuitive.

  2. 2. The difference between LS182 window film transmission meter and LS183 spectrum transmission meter

    LS182 can measure six parameters of visible light 380-760nm, ultraviolet 365nm, infrared 940nm, 1400nm, full infrared and SHGC.

    LS183 can measure visible light 380-760nm, ultraviolet 365nm, infrared 940nm.
