FS3150 Solar Film Sales Kit

FS3150 Solar Film Sales Kit

Details

I. FS3150 Solar Film Sales Kit

The FS3150 solar film sales kit is specialized in demonstrating the heat insulation, UV protection and reflective heat insulation effects of light-transmitting materials such as window film and heat insulation glass. It can directly show the blocking effect through the percentage data and the speed of the blades in the glass radiometer. The effect is intuitive and easy to understand.

The window film sales kit is equipped with ultraviolet flashlights and genuine Philips infrared lamps which can adjust the light intensity, which are used to simulate infrared and ultraviolet rays in outdoor sunlight, respectively. The instrument is also equipped with a plexiglass booth and a special aluminum box for easy installation and carrying.

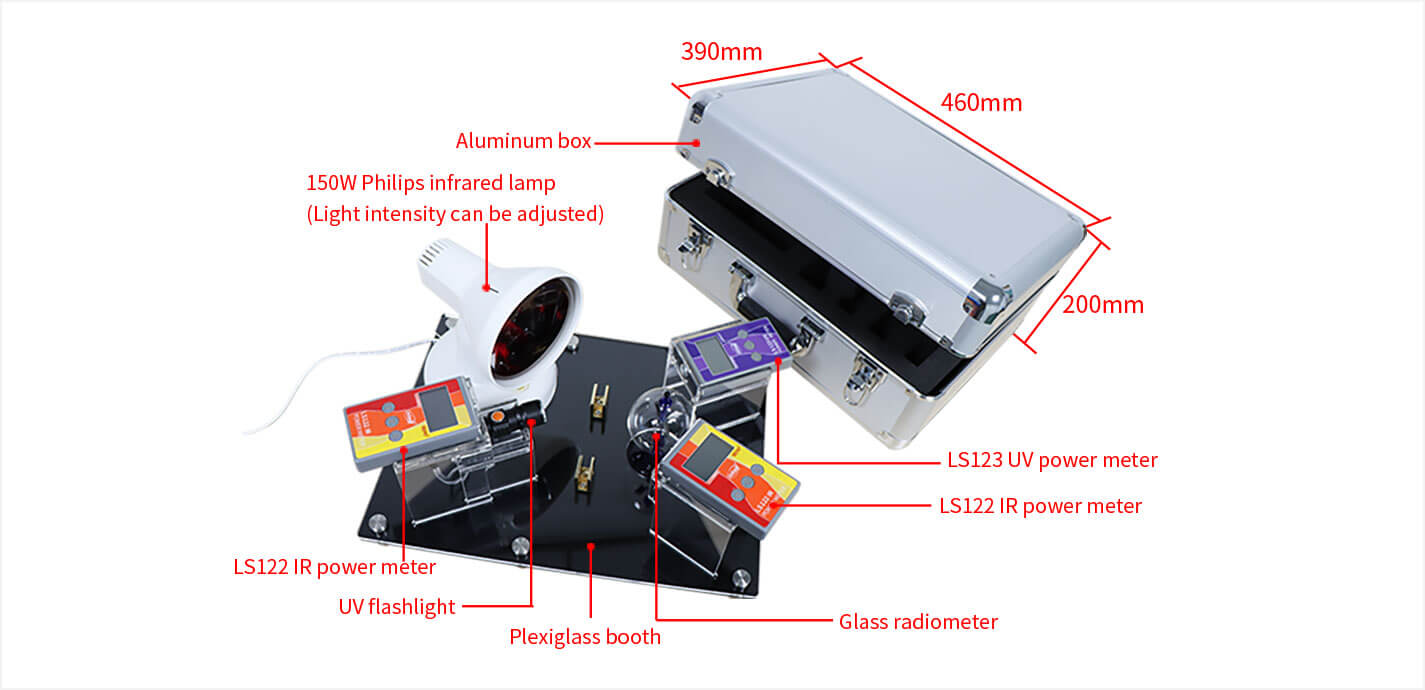

window film sales kit composition
window film sales kit composition

II. FS3150 solar film sales kit function analysis

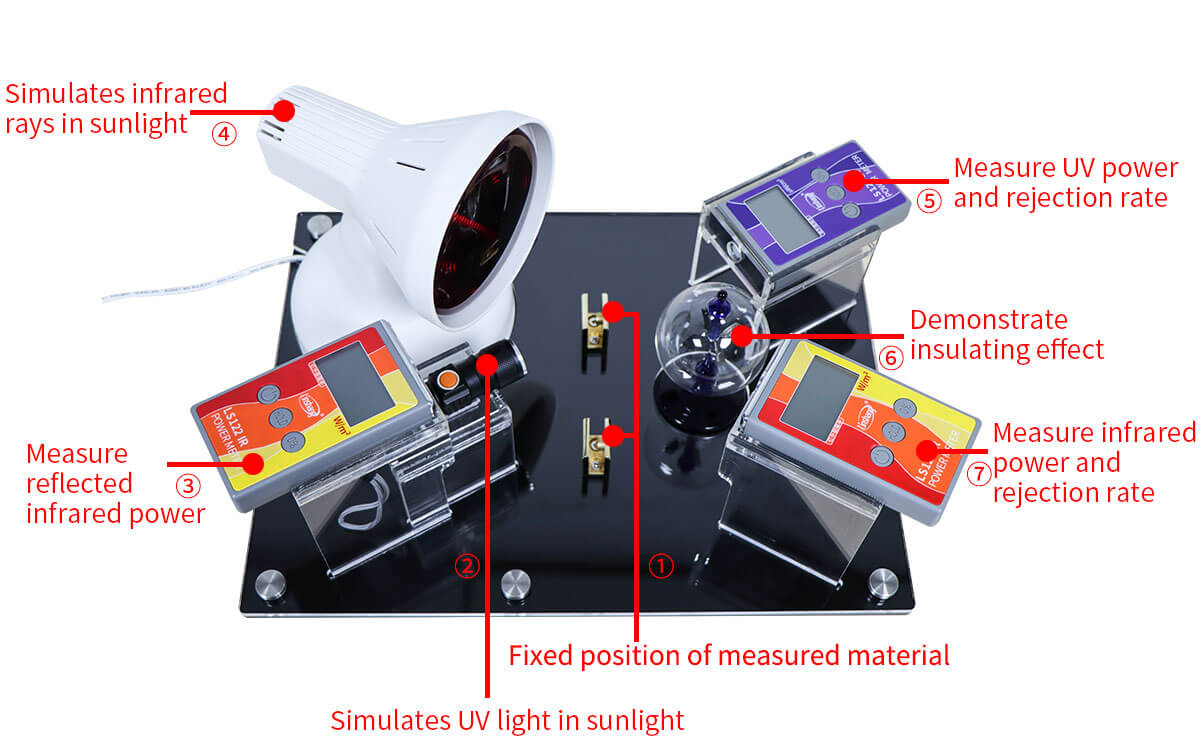

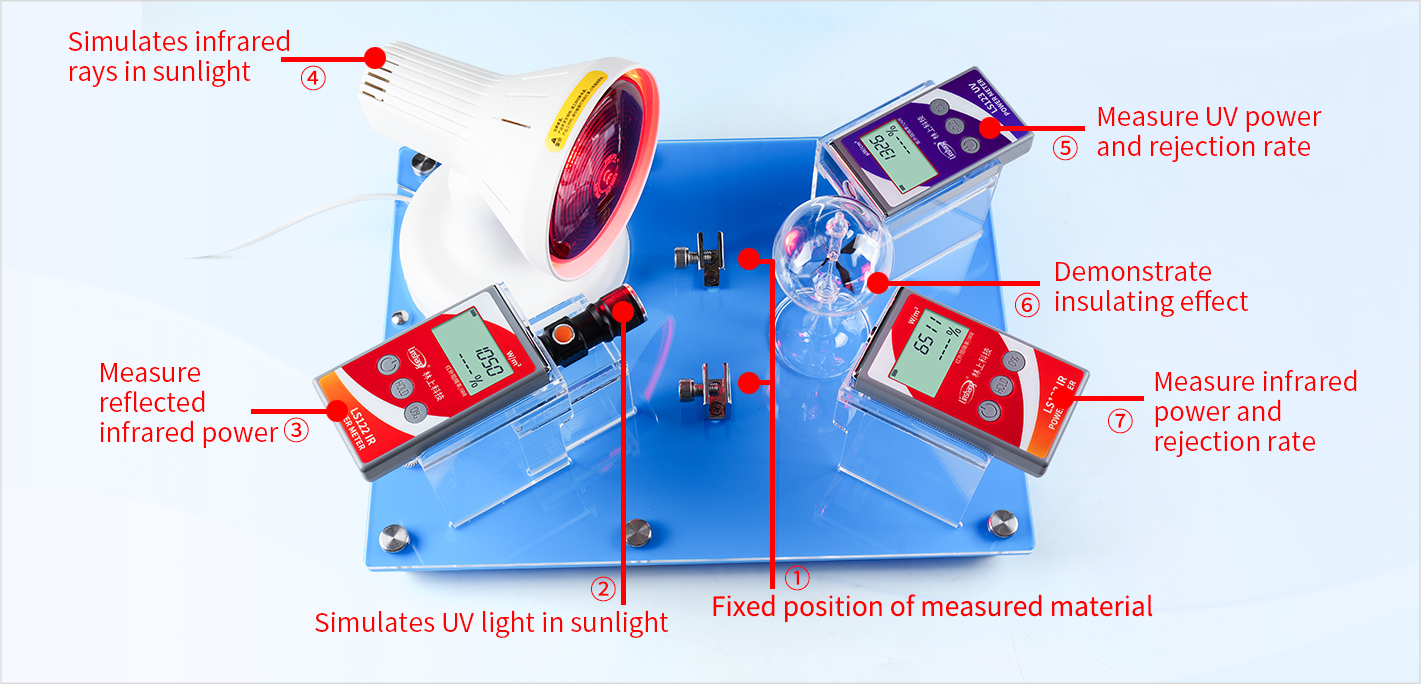

After unpacking, please place the accessories according to the picture below. The name and function of each accessory are as follows. The serial number below corresponds to the serial number in the figure.

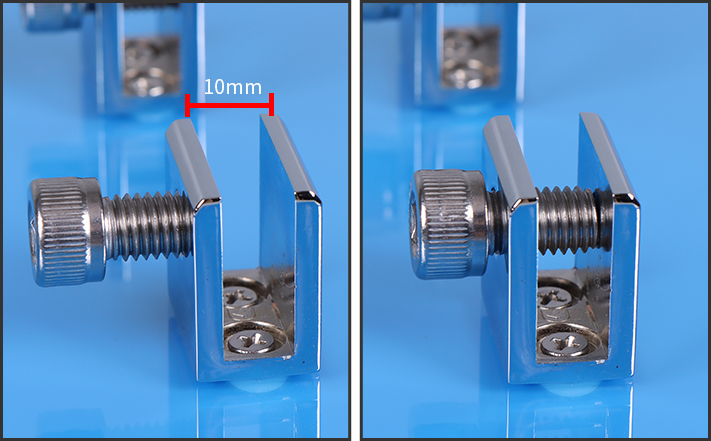

1. Glass test slot. It can be used to fix materials such as heat insulation glass and stick-film glass. The width can be adjusted by screws (≤10mm).

test slot of the window film meter
test slot of the window film meter

2. 150W Philips infrared light. After turning on the light, the intensity of infrared light can be manually adjusted through the knob switch, which is used to simulate infrared light in the sun.

Phillips infrared light
Phillips infrared light

3. UV flashlight. It is used to simulate ultraviolet rays in sunlight and supports USB charging.

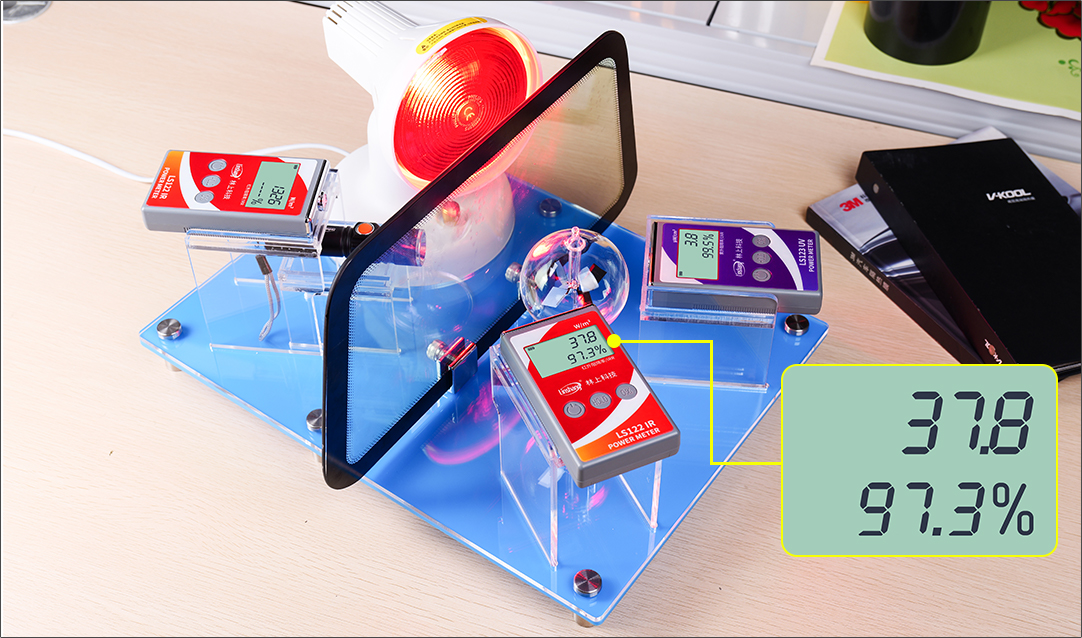

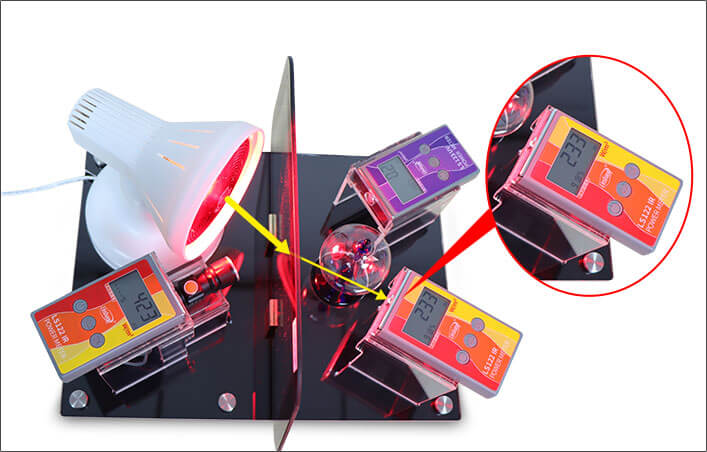

4. LS122 infrared power meter (next to infrared light). Placed on the same side of the infrared lamp, it is developed to measure the reflection and heat insulation effect of the measured material. The higher the measured infrared intensity, the better the reflection and heat insulation effect.

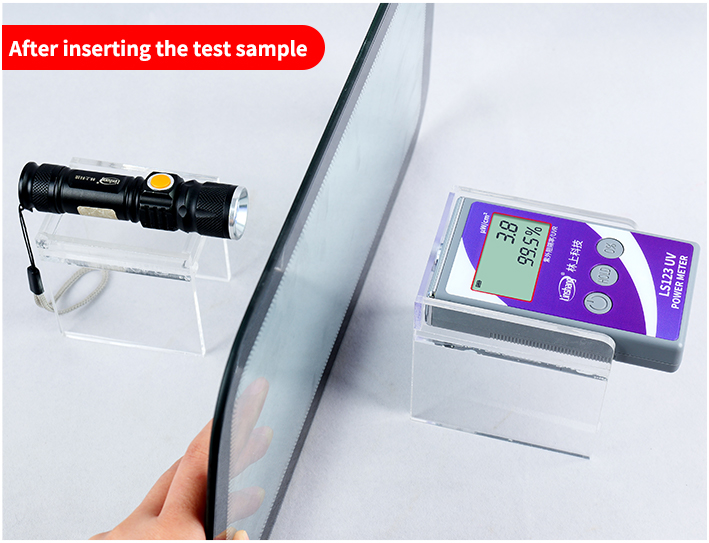

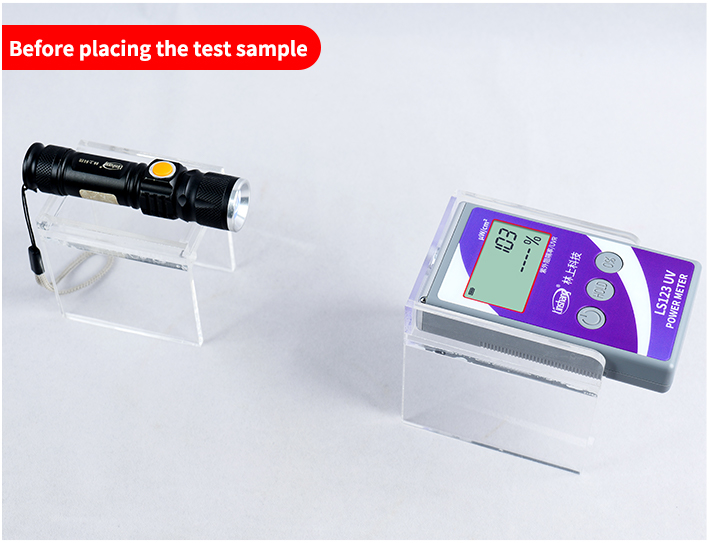

5. LS123 UV power meter. Measure the intensity of ultraviolet light passing through the measured material and calculate the ultraviolet rejection rate of the sample by using the data before and after the material is inserted.

ultraviolet power meter
UV power meter

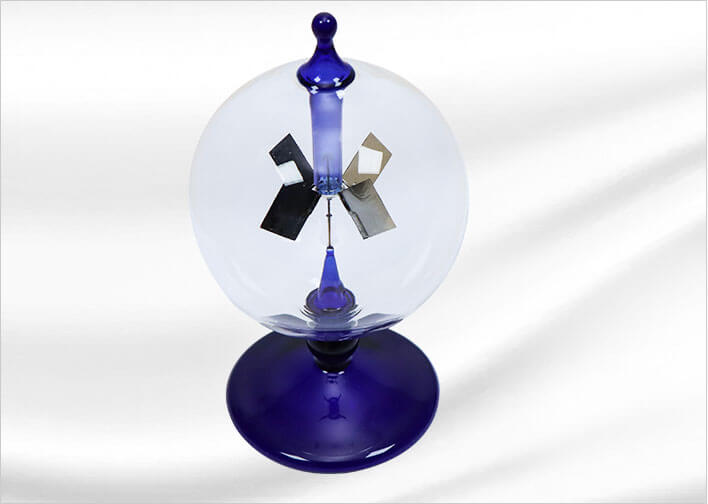

6. Glass radiometer. When infrared rays irradiate the glass radiometer, the blades will rotate. The speed is proportional to the intensity of the infrared rays. If a material with better heat insulation is used to block the infrared rays, the speed of the blade rotation will be significantly reduced.

glass radiometer
glass radiometer

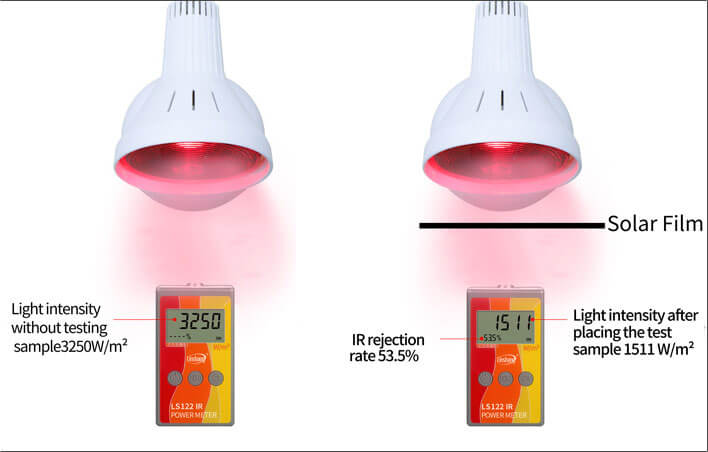

7. LS122 infrared power meter (opposite the infrared light). Measure the intensity of infrared rays passing through the measured material and calculate the infrared rejection rate of the sample through the data before and after the material is inserted.

IR power meter
Infrared power meter

III. FS3150 Solar Film Sales Kit Packing Details

No. Product Quantity Unit
1 Plexiglass booth 1 pcs
2 150W Philips infrared light 1 pcs
3 UV flashlight 1 pcs
4 LS123 UV power meter 1 pcs
5 Glass radiometer 1 pcs
6 LS122 IR power meter 2 pcs
7 Packing box dimension 46 * 39 * 20 cm(L * W * H) 1 pcs
8 User Manual 1 pcs
9 Certification card 1 pcs
window film transmission meter
window film transmission meter

IV. FS3150 solar film sales kit operation video

V. Recommended Products

● Measure the irradiance intensity of infrared light source
● Measure the rejection rate of window film, heat insulation glass and other materials to infrared rays
● Power measurement range: 0-40000 W /m²
● Spectral response range: 1000nm-1700nm
● Measure the radiation intensity of ultraviolet light source
● Measure the rejection rate of window film, heat insulation glass and other materials to ultraviolet rays
● Power measurement range: 0-40000 μW /cm²
● Spectral response range: 260nm-380nm, λp=365nm

VI. FS2150 Solar Film Sales Kit After-Sales Service

1. The meter has one-year warranty. If the instrument works abnormally, please send the whole instrument to our company for maintenance.

2. Provide users with spare parts and lifelong maintenance services

3. Provide the users with the meter inspection service

4. Free technical support for long term
