LS195 Gloss Meter

Cost-effective gloss meter

Put and test, easy to operate
Support QC mode to improve measurement efficiency
High precision, and conform to Chinese Grade 1 gloss meter standards

Request A Quote User Manual

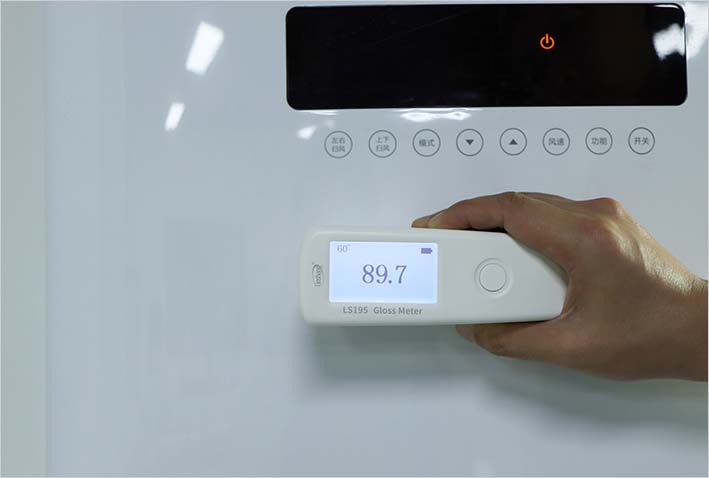

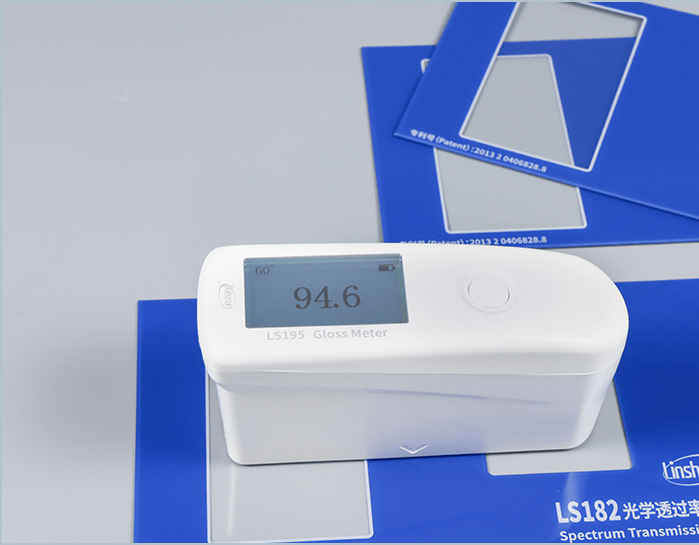

LS195 is a handheld gloss meter with a range of 0-200GU. It is professionally used for the surface gloss measurement of paint, coating, ink, plastic, paper, ceramics, stone, metal and other materials. The operation of the device is simple. You can just put the device on the materials and start to measure under normal mode, and there is no need to wait normal mode. In addition, the device can also be set to QC mode, which can realize quick QC measurement to improve efficiency.

LS195 gloss meter four major characteristic

Application

ls195 measures wooden furniture

LS195 measures wooden furniture

LS195 measures printing sample

LS195 measures printing sample

LS195 measures paint

LS195 measures paint

LS195 measures marble

LS195 measures marble

Parameters

Parameter Value
Measuring Angle 60°
Measuring Light spot 9mm*15mm
Minimum Test Material Size 20mm*10mm
Measuring Range 0-200GU
Resolution 0.1GU
Repeatability 0-100GU:±0.2GU
100-200GU:±0.2%
Reproducibility 0-100GU:±0.5GU
100-200GU:±0.5%
Zero Error 0.1GU
Indication Error 0-100GU:±1.5GU
100-200GU:±1.5%
Power Supply Lithium rechargeable battery 3.7V@650mAh
Display 240×128 Dot Matrix
Language Simplified Chinese, English
Charge Port USB(Type-C)
Data Transmission USB
Size 140*48*75mm
Weight About 237g
Working Temperature 10~45℃,0~85%RH (no condensation)
Storage Temperature -10~60℃,0~85%RH (no condensation)

Features

Low price, High quality

In order to meet the needs of different customer groups. LS195 breaks through the bottom line in price and hits a record low. In terms of quality, it strives for excellence.
Each and every Linshang gloss meter has passed:
634 calibration tests
67,300 stability tests
260 hrs of the accelerated aging test
12,000 vibration tests

Good repeatability of 0.2GU ensures stable measurement data

Use advanced chips and sensors with the unique 50-point linear fitting algorithm. Repeatability reaches ±0.2GU, and resolution reaches 0.1GU. All these have contributed to unimaginable user experiences.

Adopting the D65 light source to make sure the accurate measurements

The instrument uses the D65 light source and the spectral response curve of receivers conforms to the fuction of photopic vision V(λ), ensuring more accurate measurements of colored objects

Our device conforms to Grade 1 gloss meter standards
Not all gloss meters can do it

The accuracy of the device in the full range meets the Grade 1 gloss meter standards, which ensures that it passes the inspection of the authoritative Chinese metrology organization. Not all gloss meters can do it.

Just put and measure, Refuse to wait

After the device is turned on, there is no need of button operations. You can get results in 0.5s after measuring

QC mode for auto qualification

In addition to normal mode, the device also supports QC mode. In this mode, the user can set the upper and lower limits for qualification judgment. This mode is suitable for batch testing

LS195 mode selection interface

LS195 mode selection interface

LS195 normal mode

LS195 normal mode

LS195 QC mode

LS195 QC mode

LS195 measure plastic sample in QC mode

LS195 measure plastic sample in QC mode

LS195 measure plastic sample in normal mode

LS195 measure plastic sample in normal mode

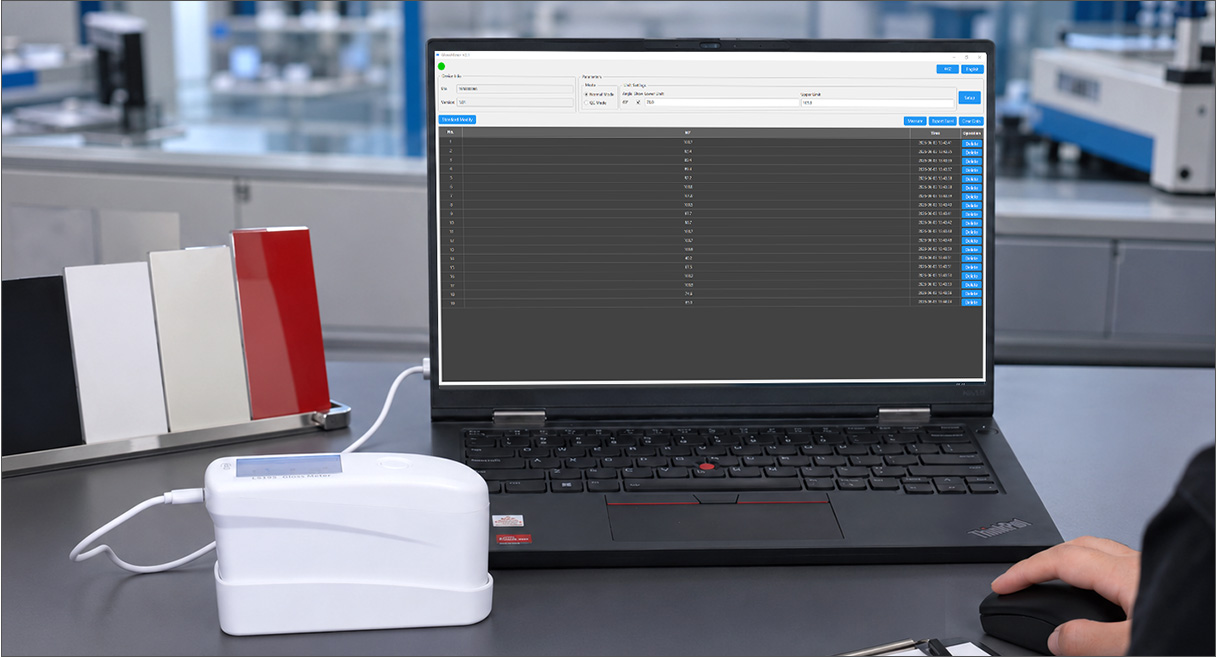

Support PC software to generate test reports

The device provides pc software and supports online measurement. The computer can perform intelligent statistics on the data and generates measurement reports, which makes the measurement more professional

Smooth appearance, comfortable grip

It adopts ivory white engineering plastic housing with smooth appearance and ergonomic design. It fits closely with every thread in your palm, which gives you a comfortable grip.

Long battery life, energy-saving and environmental

The device has an auto shutdown function. It has a built-in lithium battery characteristic of a long-lasting battery life and continuous measurement of 115,200 times when fully charged

60° universal angle design is widely used in many fields

0-200GU measurement range to meet most measurement needs

Environment temperature compensation. No frequent calibrations are required

Upon power on, short press the button and calibration is complete

Qualifications and Standards

Product Standards

The LS195 gloss meter complies with the standards: ISO2813, ISO7668, ASTM D523, ASTM D2457, DIN 67530, GB/T9754, GB/T13891, GB/T7706, GB/T8807. All device indices have reached the first-class working machine standards as stipulated in Chinese JJG 696-2015 Verification Regulation of Specular Gloss Meters and Gloss Plates.

Product qualifications

The qualification and certificate of LS195
The qualification and certificate of LS195

Software Installation

Software download

The device can be controlled by the PC gloss meter software after connection with the computer via USB (The software only supports Windows). The software can realize functions such as online measurement, parameter setting, report generation and printing.

The PC gloss meter software can be installed in the following ways:

  • The PC software packed with the device. No need to install, just run directly.

  • Download the software to the local computer, and run it directly after decompression.Click to download

Videos

Please watch the video as above to learn more about features and operation.

Gloss meter measures marble gloss

Gloss meter measured the gloss of lacquered boards

Gloss meter measuring frosted glass

Gloss meter repeatability demonstration

Gloss meter on-site measurement of car gloss

Gloss meter model selection

More about Linshang gloss meter price, product model selection, parameter comparison and QA

More details
