LS225+F500 Plating Thickness Gauge

LS225+F500 Plating Thickness Gauge

Details

I. LS225+F500 Plating Thickness Gauge Introduction

LS225+F500 is a plating thickness gauge with separate host and probe. It consists of LS225+F500 multi-probe coating thickness gauge host and F500 probe.

LS225+F500 plating thickness gauge is specially used to detect copper, zinc, tin, chromium and non-magnetic coatings on iron and other ferromagnetic metal substrates. The plating thickness gauge has ultra-high measurement accuracy and repeatability. It can be used to measure the thickness of ultra-thin coatings below 10μm.

The LS225+F500 plating thickness gauge is particularly suitable for testing small-sized materials with a minimum measurement area diameter of only 7 mm. We provide professional test fixtures for users to buy, especially suitable for the measurement of thin coating thickness of small workpieces such as screws and bolts and various irregual shaped materials.

plating thickness gauge test small materials with test fixture

II. LS225+F500 Plating Thickness Gauge Application

LS225+F500 plating thickness gauge is widely used in metal processing industry, hardware and other industries. The following pictures are a few examples of the practical application. (the following measurements are for reference only, not all)

plating thickness gauge test different materials
plating thickness gauge test different materials

III. LS225+F500 Plating Thickness Gauge Parameters

1. LS225 plating thickness gauge host parameters

Display 240×160 dot matrix LCD
Power supply 4pcs of 1.5V AAA alkaline battery
Operation temperature
range
0℃-50℃
Storage temperature
range
-20℃-60℃
Host size 148*76*26 mm (L*W*H)
Weight (include battery) 194g

2. F500 probe parameters

Measuring principle Magnetic Induction
Measuring range 0.0-500μm
Resolution 0.1μm:(0μm - 99.9μm)
1μm:(100μm - 500μm)
Repeatability ≤ ± (0.8% of reading + 0.1μm)
Test with fixture
Accuracy ≤±(2%reading+0.3μm) after calibration
of 1-5 points
Unit μm / mil
Measuring interval 1.5s
Minimum measuring area Ø = 7mm
Minimum curvature Convex:1.5mm / Concave:10mm
Minimum substrate thickness 0.1mm
Calibration Support zero reference adjustment
and 1 to 5-points calibration
Probe size 110*15 mm (Without connecting cable)
Probe weight (include battery) 81g
plating thickness gauge
plating thickness gauge

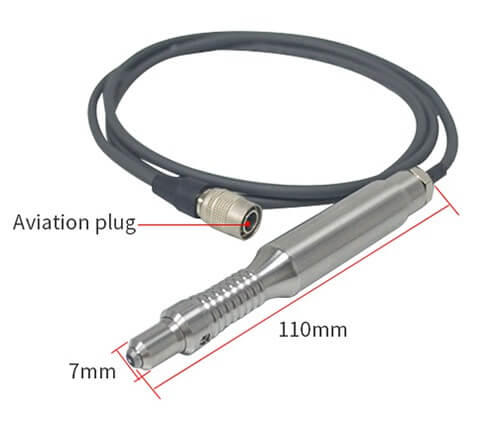

plating thickness gauge probe

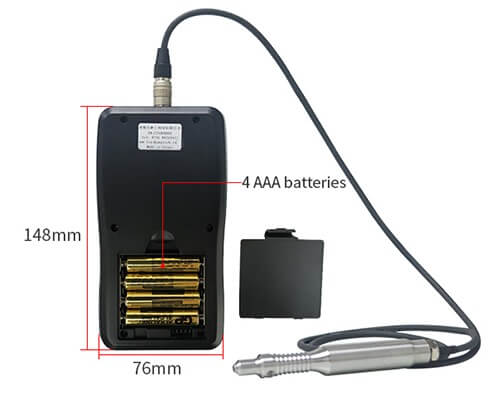

plating thickness gauge back

IV. LS225+F500 Plating Thickness Gauge Characteristics

1. LS225+F500 plating thickness gauge use ultra-small probe, which is especially suitable for measuring coatings on small workpieces such as screws and bolts.

Plating thickness gauge test bolt
Plating thickness gauge test bolt

2. The probe adopts digital oscillation technology and high-speed ADC acquisition to ensure the ultra-high stability of the plating thickness gauge. It can measure ultra-thin coatings.

Plating thickness gauge test ultra-thin plating thickness
Plating thickness gauge test ultra-thin plating thickness

3. Using advanced digital probe technology, digital signal processing is done directly on the probe. The probe is not easily interfered and provides excellent test accuracy. Even if the temperature change does not affect the measurement, the data remains stable to ensure very good repeatability throughout the measurement process. Make sure to pass the inspection of Chinese authoritative metrology agencies.

4. Supports zero adjustment and multi-point calibration (up to 5 points). It is equipped with 7 pieces of standard films of different thicknesses. The curve can be modified according to the standard film or the actual workpiece to make the measurement data more accurate.


5. With data statistics function, it can store up to 9 measurement values. The plating thickness gauge can automatically calculate the maximum, minimum, average and standard deviation of the measured data.

LS225+F500 plating thickness gauge measurement data
LS225+F500 plating thickness gauge measurement data

6. The hard probe ensures long-term effective use of the instrument.

7. Dedicated test fixtures are provided for users to purchase, which can make the measurement more convenient and eliminate the measurement errors caused by human factors.

8. Two languages can be switched -Chinese and English and two units can be switched(μm and mil). Customers can set the auto-off time within 1-9 minutes without any operation.

Three display interfaces of plating thickness gauge
Three display interfaces of plating thickness gauge

V. Product Qualification and Standards

1. LS225+F500 plating thickness gauge conforms to the following standards:

(1) GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method

(2) DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness

(3) JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness

VI.LS225+F500 Plating thickness gauge Operation Video

VII.LS225+F500 Plating Thickness Gauge Packing Details

No. Description Quantity pcs
1 LS225+F500 Plating thickness gauge 1 pcs
2 F500 probe 1 pcs
3 Fe zero-adjustment plate 1 pcs
4 Standard films 7 pcs
5 User manual 1 pcs
6 Certificate / Warranty card 1 pcs
7 1.5V AAA alkaline battery 1 pcs
8 Plastic engineering case 1 pcs
plating thickness gauge package
plating thickness gauge package

VIII. LS225+F500 Plating Thickness Gauge After-sales Service

  1. The plating thickness gauge has one-year warranty. If the gauge works abnormally, please send the whole digital paint thickness gauge to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

IX. FAQ about LS225+F500 Plating Thickness Gauge

  1. 1. The difference between LS225 and other coating thickness gauges

    Compared with several other coating thickness gauges, LS225 has higher measurement accuracy and data repeatability. With a special test fixture, it can be used to accurately measure ultra-thin coatings below 10μm, small size and special-shaped workpieces. It supports zero adjustment and multi-point calibration. The measurement results can be more accurate after calibration through standard films or uncoated workpieces.

    If you want to know more about the Linshang coating thickness gauge, Please click "Coating Thickness Gauge Selection and FAQ".
