I.IR Power Meter Introduction

Linshang LS122 infrared power meter is the same model of Weigu energy tester, also called infrared energy receiver. This is an instrument with a wide receiving range. It is mainly used to measure the infrared blocking rate of materials. It is suitable for the display of thermal insulation effects of thermal insulation glass, solar film and other materials. It can also be used to measure the radiant energy power density of various light sources, that is, the radiant energy power per square meter, the unit is W / m².

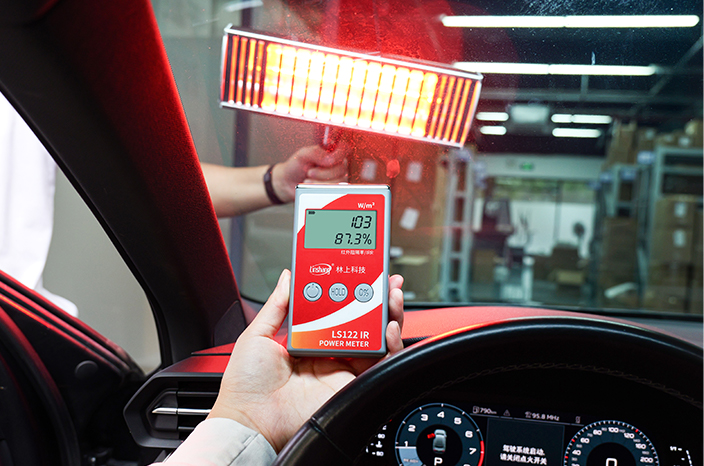

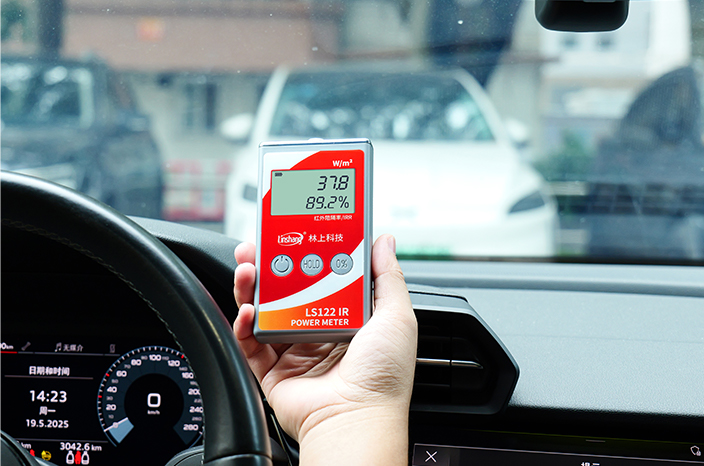

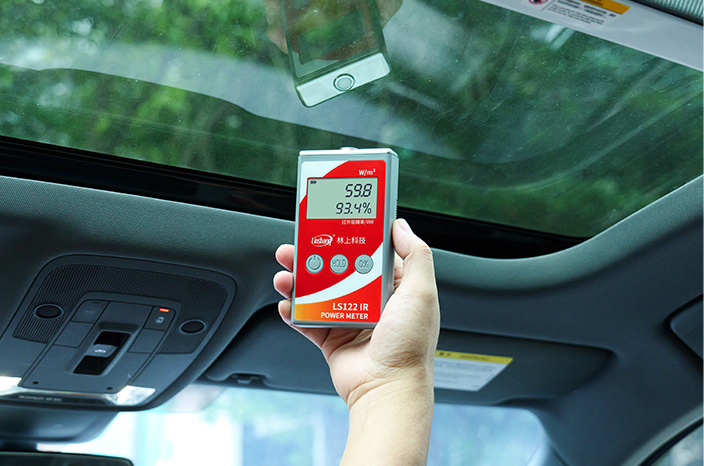

LS122 infrared power meter function display
LS122 infrared power meter function display

II.IR Power Meter Parameters

Power range  0-40000 W / m²
Measurement accuracy ± 10%
Infrared rejection rate -999%-100%
Spectral response 1000nm-1700nm
Photosensitive aperture  10mm
Dimension  125mm × 69mm × 24.5mm (L*W*H)
Weight about 140 g (including battery)
Working temperature  -20 ° C-+ 70 ° C
Power supply AAA alkaline dry batteries

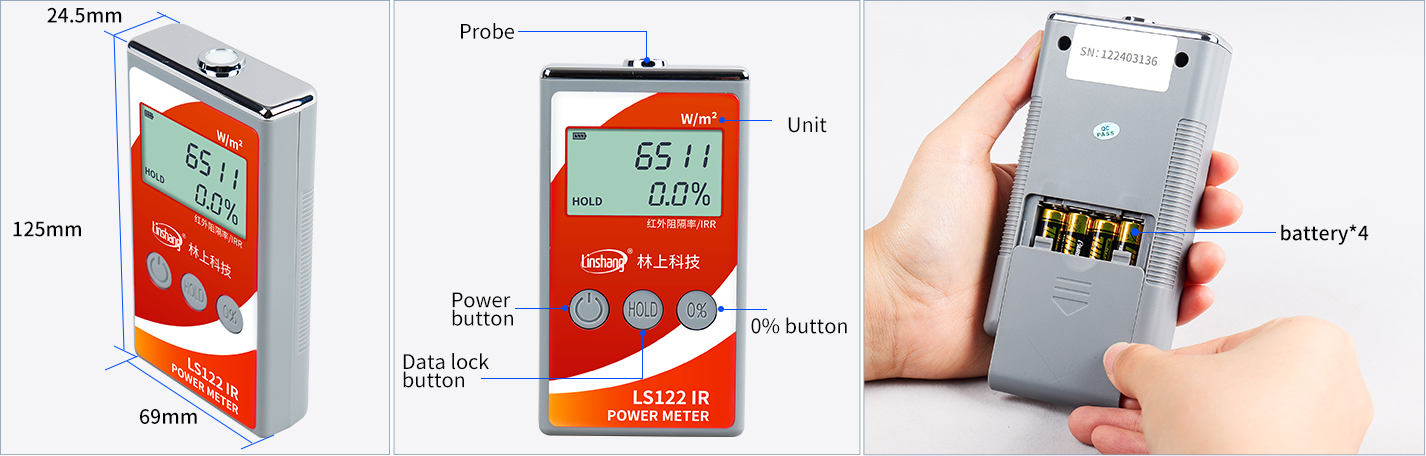

LS122 solar power meter appearance
LS122 solar power meter appearance

III.IR Power Meter Characteristics

1. The LS122 solar power meter is suitable for testing the infrared rejection performance of architectural film, automobile thermal insulation film, solar film, thermal insulation glass and solar equipment.

2. It can be used to measure the radiation intensity (infrared power density) of infrared light sources (sun, infrared lamps, etc.).

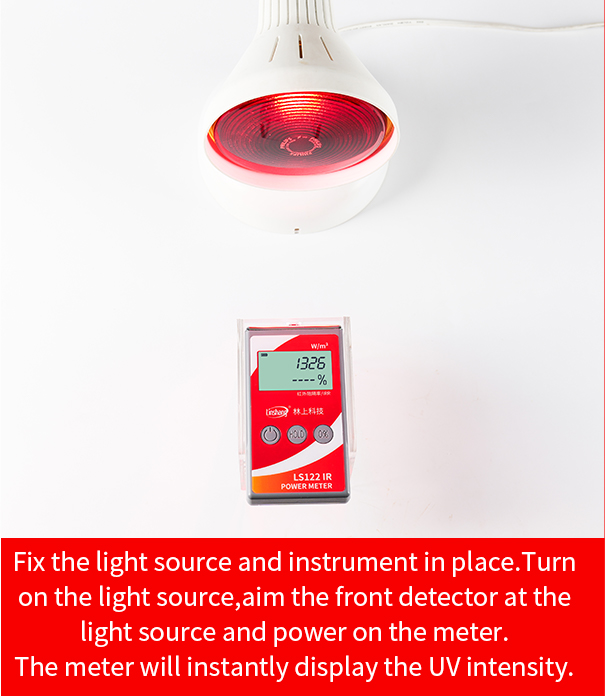

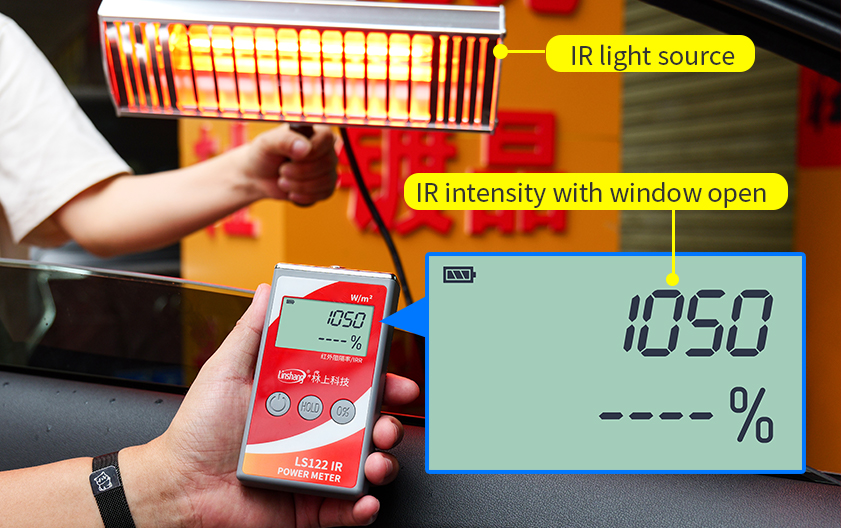

LS122 infrared power meter measure light intensity
LS122 infrared power meter measure light intensity

3. The infrared power meter has a fast measurement speed which can automatically convert the infrared rejection rate of the material. The rejection rate will be displayed on the interface directly for easy reading.

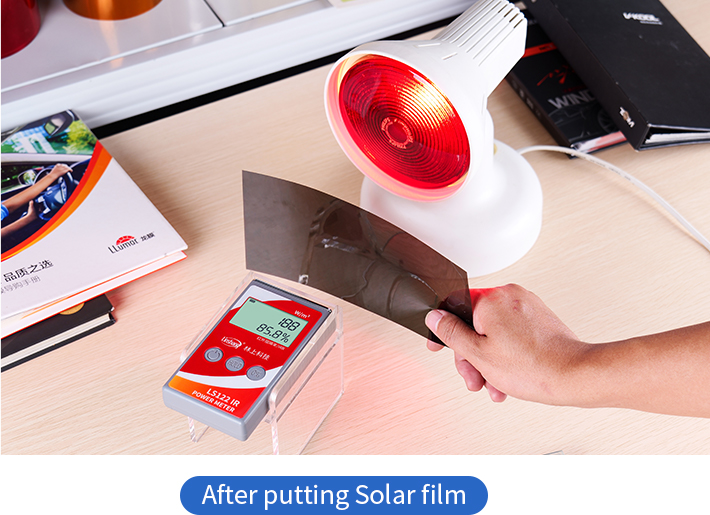

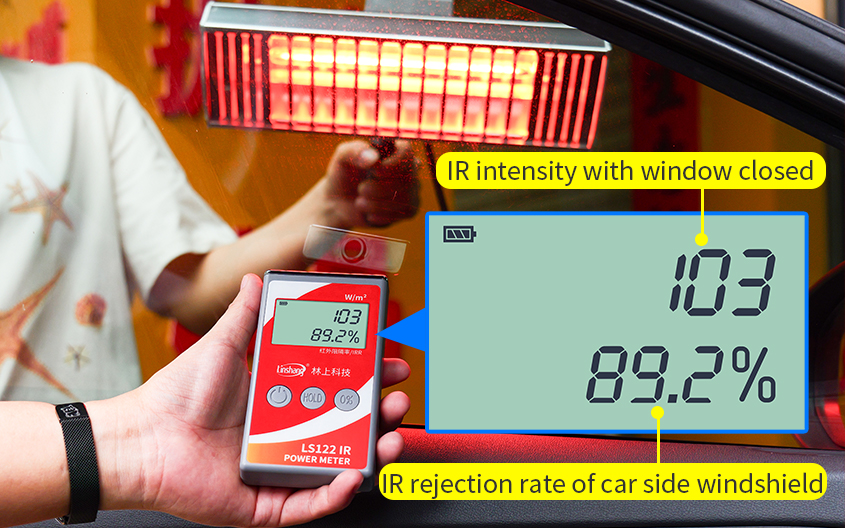

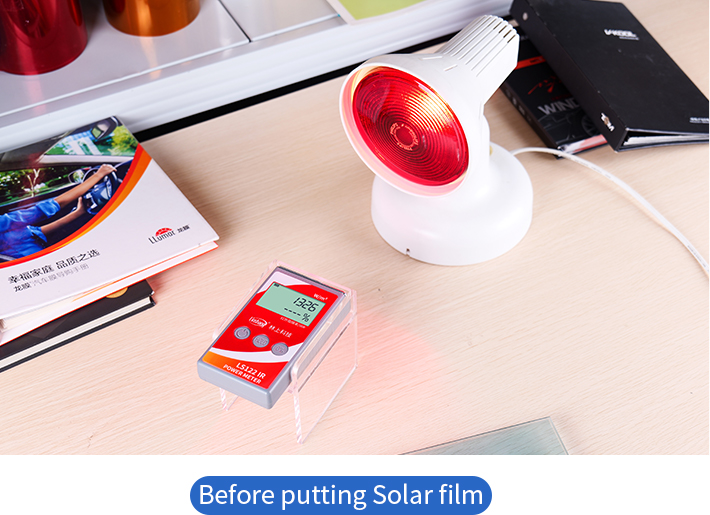

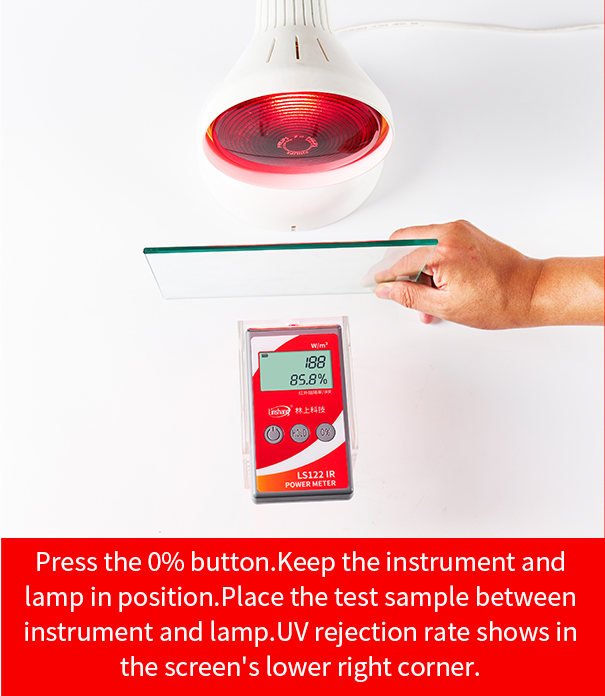

LS122 infrared power meter measure rejection rate
LS122 infrared power meter measure rejection rate

4. The solar power meter has wide spectral response which can test the infrared intensity from 1000nm-1700nm wavelength.

LS122 infrared power meter spectral response curve
LS122 infrared power meter spectral response curve

IV.IR Power Meter Operation Video

V.IR Power Meter Packing Details

No. Description Quantity  Unit
1 LS122 Infrared Power  Meter   1 pcs
2 AAA battery   4 pcs
3 User Manual 1 pcs
4 Certificate / warranty card 1 pcs
5 Packing box dimension21*13*6 cm(L*W*H) 1 pcs
LS122 IR power meter package
LS122 IR power meter package

VI. IR Power Meter After-Sales Service

  1. The meter has one-year warranty. If the instrument works abnormally, pleasesend the whole instrument to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: https://www.linshangtech.com/

Service hotline: 0755-86263411 Email: sales21@linshangtech.com

For more information about the window film transmission meter selection, please click on the article below for details

Window Film Transmission Meter Selection and FAQ.

VII. FAQ about LS122 IR power meter

  1. 1. The difference between LS122 infared power meter and window film transmission meters

    LS122 infrared power meter can test the power (irradiation intensity) of infrared rays, as well as the infrared rejection rate of solar film, glass and other materials.

    The infrared response band of LS122 is 1000-1700nm and the peak value is 1400nm. The infrared rejection rate calculated by the LS122 infrared power meter is the infrared rejection rate in this response wavelength range; while the window film transmission meter (1400nm) tests the infrared rejection rate at 1400nm, so the test data of the two instruments are different. The size is related to the sensitivity of the solar film's transmittance to wavelength changes.
