I.LS125 and UVALED-X3 Probe Introduction

The LS125 UV light meter is a smart host that can support 9 different types of probes. Its main function is data display. The UVALED-X3 probe is one of the 9 probes equipped with the LS125 host. The probe's spectral response range is 340nm-420nm, calibrated at 395nm. The UV light meter is suitable for detecting the intensity and energy of UVA or UVV light sources, as well as the intensity and energy of low power UVA LED light sources.

If you want to know about other types of probes supported by the LS125 UV light meter host, please click "LS125 Multi-Probe UV light meter Host" for details.

II.UVALED-X3 Probe Parameters

Parameters UVALED-X3 Probe
Spectral response 340nm-420nm, calibrated with 395nm UV LED
Power measuring range 0 - 200000μW / m²
Resolution 0.1μW / m²
Energy measuring range 0-9999999μJ/cm²
Record time 0-99999s
Measuring accuracy ±10%
Sampling speed 6 times/second
Optional unit μW / cm² (default), mW / m², W / m²
Test Hole Diameter ¢=10mm
Probe size 39mm ×  32mm × 15mm (L * W * H)
Packing box dimension 24 * 6 * 5 cm (L * W * H)
UVALED-X3 probe spectral response curve
UVALED-X3 probe spectral response curve

III.UVALED-X3 Probe Characteristics

1. The intensity of ultraviolet radiation can be measured to the micron level, which is suitable for the intensity and energy detection of low-power UVA light sources.

2. The Linshang LS125 UV radiometer + UVALED-X3 probe has rich statistical functions, real-time power value, maximum value, minimum value, average value, measurement time and energy value are displayed at the same time.

LS125 host with UVALED-X3 probe measurement display interface
LS125 host with UVALED-X3 probe measurement display interface

3.Adopting advanced digital probe technology, all data collection and processing are completed inside the probe. Data transmission through digital signals with stronger anti-interference ability can ensure more stable test data.

4.Three measurement units can be switched, namely mW / cm², W / cm², W / m². Data conversion between different units does not require manual calculation.

LS125 host unit with UVALED-X3 probe unit setting interface
LS125 host unit with UVALED-X3 probe unit setting interface

IV.LS125 Host + UVALED-X3 Probe Qualification

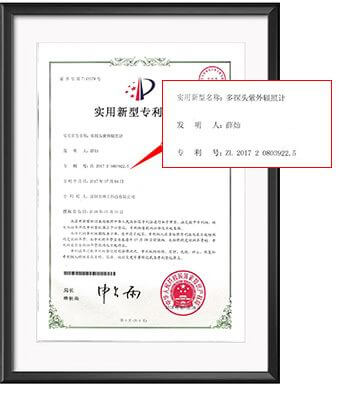

Patent Certificate for LS125 UV radiometer
Patent Certificate for LS125 UV radiometer

V.LS125 Mutil-Probe UV Light Meter Operation Video

VI.LS125 Host + UVALED-X3 Probe After-Sales Service

  1. The meter has one-year warranty. If the UV light meter works abnormally, please send the whole UV light meter to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: www.linshangtech.com

Service hotline: 0755-86263411        Email: sales21@linshangtech.com

For more information about the selection of Linshang UV light meters, please click the article below for details.

UV Light Meter Selection and FAQ".

VII. FAQ about LS125 Host + UVALED-X3 Probe

  1. 1. The difference between UVALED-X0, UVALED-X1 and UVALED-X3 UV probe for LS125 UV light meter host

    The test aperture of the UVALED-X0 probe is 10mm, which is mainly used to detect UVA LED plane light sources used in curing and exposure industries;

    The test aperture of the UVALED-X1 probe is 1mm, which is mainly used to detect UVA LED point light sources used in curing and exposure industries;

    The UVALED-X3 probe is mainly used for the detection of low-power UVA LED light sources, such as nail art lamps.

  2. 2. What's the working temperature of the UV probes?

    The 9 probes of the LS125 UV light meter are not heat-resistant. The probe can be used for a long time at 80℃ or lower. If the temperature is higher than 80℃, it is recommended to use UV energy meter for UVA light source detection.

  3. 3. Which probe is recommended if I need to measure both mercury lamp and LED light source?

    It is recommended to use the LS125 UV light meter host and UVA-X0, UVALED-X0 probes.

  4. 4. Whether a traceable calibration certificate is included?

    UVA-X0 and UVA-X1 are mainly used to detect 365nm high-pressure mercury lamps, which can be ensured to pass the inspection of the Metrology Institute and obtain a calibration certificate (approved by CNAS and ilac-MRA). The cost of the calibration certificate is about US$180 ; but the UVALED-X0, UVALED-X1 and UVALED-X3 probes are professionally used to detect UVA LED light sources. There is no unified inspection standard for LED light sources, each light source and UV energy meter manufacturer has their own calibration standards. We can provide the factory calibration reports for these three probes special for UV LED, but no calibration certificates can be provided.
