LS136 UV Energy Meter

Suitable for high pressure mercury lamp

For high pressure mercury lamp, halogen lamp
7.6mm thickness and 102mm diameter, simple operation
Long-term for high temperature resistance

Request A Quote User Manual

LS136 UV Energy Meter Features and Operation

LS136 UV energy meter is a professional ultraviolet measurement tool for detecting UV energy and intensity in high pressure mercury lamp, halogen lamp and other light sources. It can be used to measure UV intensity, energy and temperature in a variety of UV curing machine, UV coating machine, exposure machine, dryer, printing machine and other equipment. The UV energy meter can be measured in narrow spaces with 7.6mm thick. Equipped with a high temperature protective cover, still operate in high temperature environment.

LS136 UV energy meter is specialized for high pressure mercury lamp halogen lamp and other light source, if you need to measure UVLED light source, please choose LS137 UV energy meter.

ls136 uv energy meter application
ls136 apply to exposure machine
ls136 apply to dryer
ls136 apply to UV coating machine

Parameter

Parameter LS136 UV Meter
Spectral range 315nm-400nm, λp = 365nm
Power measuring range 0-2000mW/cm²
Power resolution 0.1mW/cm²
Energy measuring range 0-999999mJ/cm²
Measuring accuracy
(H is the standard value)
H<5mW/cm²:±0.5mW/cm²
H>=5mW/cm²:±10%H, ±5% (typical)
Sampling speed 2048 times/second
Recording period 32 min
Power supply Rechargeable lithium battery 3.7V@400mAh
Display 128X64 Dot matrix OLED
Dimension Diameter 102mm* thickness 7.6mm
Weight 136g
composition of ls136
detail of ls136
Spectral response curve

Feature

Energy, power and temperature are measured simultaneously

Real-time power value and real-time temperature value can be dynamically displayed during measurement.The energy accumulation value, maximum power value and maximum temperature value are displayed after the measurement.

ls136 spectral response curve

Suitable for high pressure mercury lamp and halogen lamp

The content spectral range is 315nm-400nm, and the peak wavelength is 365nm. Professional high pressure mercury lamp, halogen lamp and other light source used for the uv energy measurement.

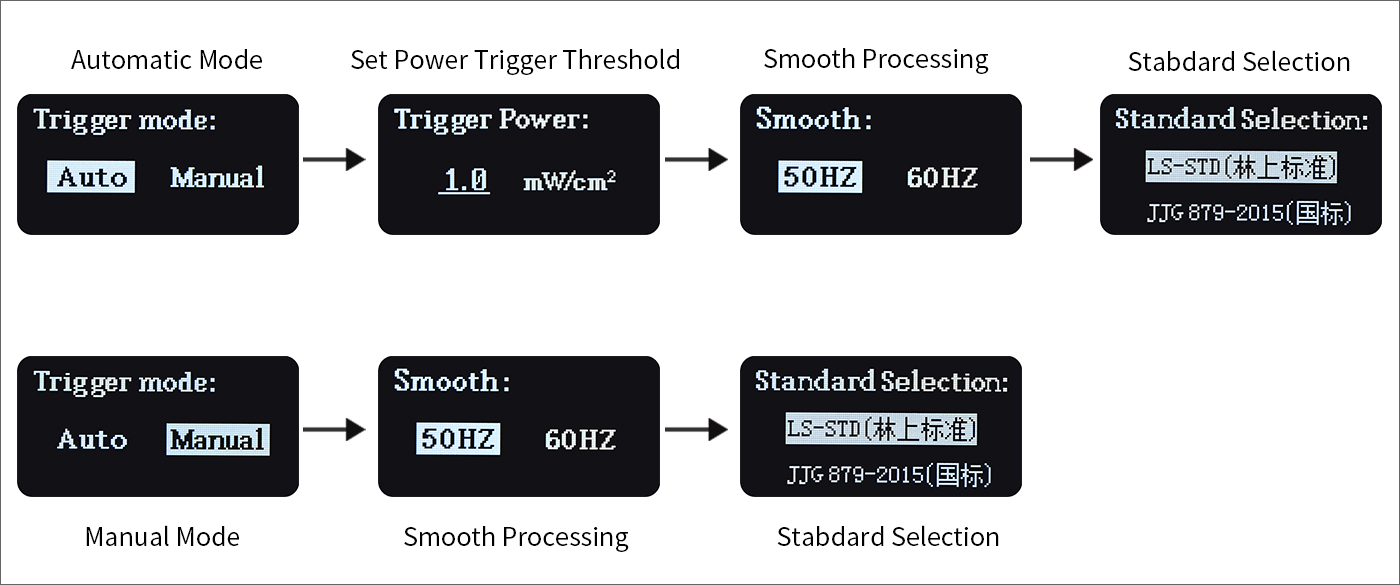

Two measurement modes available

In automatic mode, trigger and end measurement automatically, measure curing time and energy value accurately; In manual mode, energy value of multiple curing light sources can be measured.

ls136 two measurement modes

Portable and compact

With the thickness of 7.6mm and 102mm of diameter, LS136 is suitable for narrow measuring space.

ls136 real picture
7.6mm thickness

High temperature protection cover

With high temperature protection cover which is factory-equipped, long-term operate under high temperature resistance.

2048 times/second high-speed sampling,provide more accurate data

The high-precision temperature detector dynamically displays actual temperature in real time, and the timer accurately records measurement time

With high temperature protection cover which is factory-equipped, long-term operate under high temperature resistance

The last test data is automatically displayed after power-on, so there is no need to worry about data loss

Qualifications and Standards

LS136 UV energy meter conforms to the following standard:

"JJG 879-2015 Verification Regulations of Ultraviolet Radiometers"

Ultraviolet energy meter calibration report
Ultraviolet energy meter calibration report

Packing

No. Description Quantity Unit
1 LS136 UV Energy Meter 1 pcs
2 USB cable 1 pcs
3 DC5V power adapter 1 pcs
4 User manual 1 pcs
5 Certificate/Warranty card 1 pcs
6 High temperature protective cover 1 pcs
7 Calibration Report 1 pcs
8 Plastic engineering box 1 pcs
LS136 packing
LS136 packing
