ls137  UV energy meter

LS137 UV Energy Meter

Suitable for UVLED light sources

Response range: 340nm-420nm, calibrated at 395nm LED
7.6mm thickness and 102mm diameter , simple operation
Long-term for high temperature resistance

Request A Quote User Manual

LS137 UV energy meter can simultaneously display UV intensity, UV energy and temperature value, suitable for measuring wavelength of 365nm, 375nm, 385nm, 395nm, 405nm and other UVALED light source. Mainly used for UV drying machine, curing machine, mobile phone UV coating machine, exposure machine, printing machine and other equipment of UV radiation intensity and energy detection. The instrument has a measuring range of up to 40000mW/cm2, and can measure UV intensity, energy and temperature at the same time. The UV energy meter can be measured in narrow spaces with simple operation. Equipped with a high temperature protective cover, still operate in high temperature environment.

LS137 UV energy meter is specialized for UVLED light source , if you need to measure high pressure mercury lamp halogen lamp and other light source, please choose LS136 UV energy

Parameter

Parameter LS137 UV Energy Meter
Spectral range 340nm - 420nm, calibrated at 395nm LED light source
Power measuring range 0-40000mW/cm²
Power resolution 1mW/cm²
Energy measuring range 0-999999mJ/cm²
Measuring accuracy
(H is the standard value)
H<50mW/cm²: ±5mW/cm²
H>=50mW/cm²: ±10%H,±5%H (typical)
Sampling speed 2048 times/second
Recording period 32 min
Power supply Rechargeable lithium battery 3.7V@400mAh
Display 128X64 Dot matrix OLED
Dimension Diameter 102mm* thinkness 7.6mm
Weight 136g

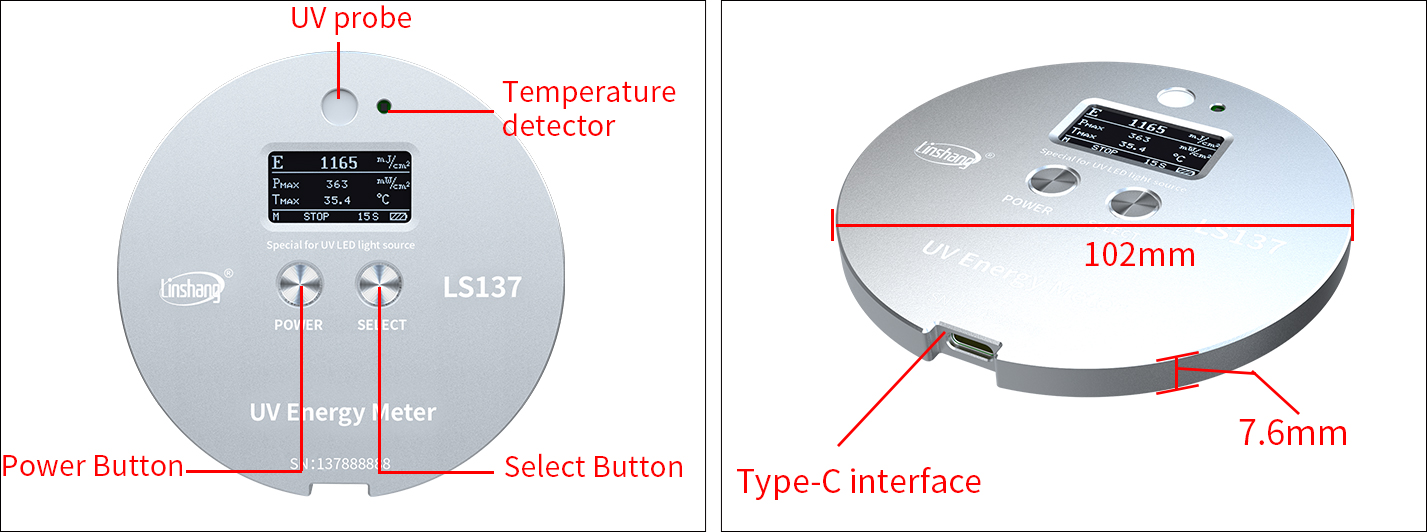

ls137 UV energy meter size

Feature

Wide spectral response range

LS137 has a wide spectrum response range of 340nm-420nm, suitable for measuring 365nm, 385nm, 395nm, 405nm and other wavelengths of UV LED light source.

Energy, power and temperature are measured simultaneously

Real-time power value and real-time temperature value can be dynamically displayed during measurement.The energy accumulation value, maximum power value and maximum temperature value are displayed after the measurement.

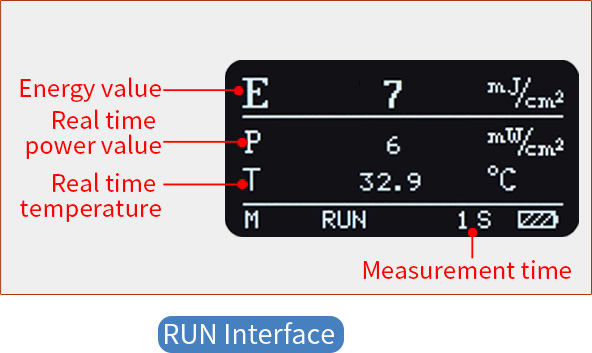

ls137 run interface
ls137 stop interface

Portable and compact

With the thickness of 7.6mm and diameter of 102mm, LS137 is suitable for narrow measuring space.

ls137 physical display
ls137 thickness display

Two measurement modes available

In automatic mode, trigger and end measurement automatically, measure curing time and energy value accurately; In manual mode, energy value of multiple curing light sources can be measured.

ls137 two measurement modes

High temperature protection cover

With high temperature protection cover which is factory-equipped, long-term operate under high temperature resistance.

2048 times/second high-speed sampling,provide more accurate data

The high-precision temperature detector dynamically displays actual temperature in real time, and the timer accurately records measurement time

With high temperature protection cover which is factory-equipped, long-term operate under high temperature resistance

The last test data is automatically displayed after power-on, so there is no need to worry about data loss

Qualifications and Standards

UV integrator patent certification report
UV integrator patent certification report

Packing

No. Description Quantity Unit
1 LS137 UV Energy Meter 1 pcs
2 USB cable 1 pcs
3 DC5V power adapter 1 pcs
4 User manual 1 pcs
5 Certificate/Warranty card 1 pcs
6 Calibration Report 1 pcs
7 High temperature protective cover 1 pcs
8 Plastic engineering box 1 pcs
LS137 packing
LS137 packing

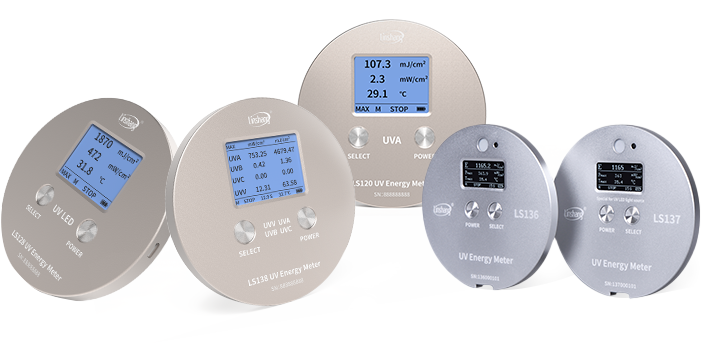

Linshang uv energy meter

UV Energy Meter Selection

More about UV Energy Meter price, product selection, parameter comparison and FAQ
