I. LS116 Light Transmittance Meter Introduction

Linshang LS116 light transmittance tester is a professional instrument for testing the light transmittance of uniform light-transmitting materials. It uses a parallel light path design and can also be used to detect large thickness materials with an accuracy of ± 1%. Function standard to ensure the passing of testing by the Metrology Institute.

Light transmittance is an important technical indicator of many optical products, such as glass, solar film, laminated glass, PC plastic, etc. The test principle of the light transmittance meter is to use a visible light source to illuminate the measured substance. The sensor detects the incident light intensity of the light source and the light intensity after passing through the measured substance. The ratio of the transmitted light intensity to the incident light intensity is transmitted. Rate, expressed as a percentage.

LS116 light transmission meter advantage video

II. LS116 Light Transmittance Meter Application

The LS116 light transmittance meter can be used to test the light transmittance of glass products, solar films, laminated glass, coating materials, organic material panels and other materials. Suitable for display, production, quality inspection, inspection and other occasions.

LS116 visible light transmittance meter test different materials
LS116 visible light transmittance meter test different materials

III. LS116 Light Transmittance Meter Parameters

Light source 380nm-760nm full wavelength, in line with
CIE photopic luminosity function
Measurement accuracy better than ± 1% (colorless and uniform transparent materials)
Resolution 0.001% (0% --- 10%); 0.01% (10% --- 100%)
Test sample thickness <100mm
Test sample diameter 10mm
Weight about 622 g (without battery)
Dimension 148mm × 76mm × 26mm (L*W*H)
Power supply 4 AAA alkaline dry battery
LS116 light transmission meter appearance
LS116 light transmission meter appearance

IV. LS116 Light Transmittance Meter Characteristics

1. The light transmittance meter adopts the parallel light path of the light source and the light collecting design of the receiver, so that it can measure large thickness materials.

LS116 light transmittance tester for large thickness glass
LS116 light transmittance tester for large thickness glass

2. Equipped with a fixed base, with two measurement methods; that is, it is suitable for testing such as on-site measurement of automobile front glass, and it is also suitable for fixed-point light transmission measurement such as a fixed station in a factory.

two measurement methods of LS116 light transmittance meter
two measurement methods of LS116 light transmittance meter

3. Adopt high-resolution acquisition chip, which can realize high-precision data acquisition, fast response and real-time dynamic calibration, high measurement accuracy and fast test speed.

4. The instrument can measure high-transmittance samples. The transmittance measurement range is 0.001% -99.8%, and the highest resolution can reach 0.001%.

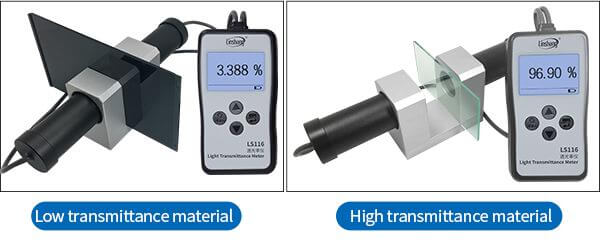

LS116 light transmittance meter test low and high transmittance materials
LS116 light transmittance meter test low and high transmittance materials

V. LS116 Light Transmittance Meter Qualification and Standard

1. The LS116 light transmittance meter conform to the following standard “JJF1225-2009 Calibration Specification for Transmittance Meter of Automobile”.

2. Calibration report

VI. LS116 Light Transmittance Meter Operation Video

VII. LS116 Light Transmittance Meter Packaging Details

No. Description Quantity Unit
1 LS116 Light Transmittance Meter 1 pcs
2 AAA battery 4 pcs
3 User Manual 1 pcs
4 Certificate / warranty card 1 pcs
5 Pedestal 1 pcs
6 Packing box dimension 34*29*9 cm(L*W*H) 1 pcs
LS116 Light Transmittance Meter package
LS116 Light Transmittance Meter package

VIII. LS116 Light Transmittance Meter After-Sales Service

  1. The meter has one-year warranty. If the instrument works abnormally, please send the whole instrument to our company for maintenance

  2.  Provide users with spare parts and lifelong maintenance services

  3.  Provide the users with the meter inspection service

  4. Free technical support for long term

Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: https://www.linshangtech.com/

Service hotline: 0755-86263411 Email: sales21@linshangtech.com

For more information about the Light Transmittance Meter  selection, please click article below for details

Light Transmittance Meter Selection and FAQ.

IX. FAQ about LS116 Light Transmittance Meter

  1. 1. The difference between LS116 and LS110 light transmittance meters

    LS110 light transmittance meter use the design of main and auxiliary machine separation, no connecting line and contains three independent light sources. The measured light transmittance value is the average of the three data. The size of the measured material needs to be greater than 40*40mm. It is suitable for measuring car front windshield and installed architectural glass, etc.

    The LS116 light transmittance meter has a connecting wire and a fixed base. The accuracy is higher than that of the LS110. It is mainly used for the light transmittance detection of glass, organic materials, window films and other transparent materials. It can test transparent materials with a diameter greater than 10mm.

  2. 2. The difference between LS116 and LS117 light transmittance meters

    LS116 is suitable for measuring the light transmittance of transparent and regular materials. The diameter of the tested material must be greater than 10mm;

    LS117 is mainly suitable for measuring the light transmittance of opalescent, frosted fog, diffuse transmission materials and low-transmittance materials (at the same time it can measure the optical density value).The diameter of the measured material should be greater than 2mm.

  3. 3. How to calibrate the LS116 light transmittance meter and how often do I need to calibrate?

    The LS116 light transmittance meter has a real-time dynamic self-calibration function, without the need for other tools such as standard films to assist calibration. Without placing any material under test, as long as the instrument passes self-calibration and displays 100%, the light transmittance test can be performed. The instrument accuracy is also guaranteed to meet the factory standards.
