I.UV Power Meter Introduction

Linshang LS123 portable UV power meter, also known as UV lamp intensity meter. This is an instrument with a wide spectrum receiving range. It is mainly used for measuring the UV rejection rate of materials. It is suitable for displaying the UV rejection performance of materials such as explosion-proof films, solar films and insulating glass. The ultraviolet power meter is also used for the measurement of radiated energy power density measurement, that is, radiant energy power per square meter, in microwatts per square centimeter (uW / cm2). The detector is located at the front of the instrument and is easy to use.

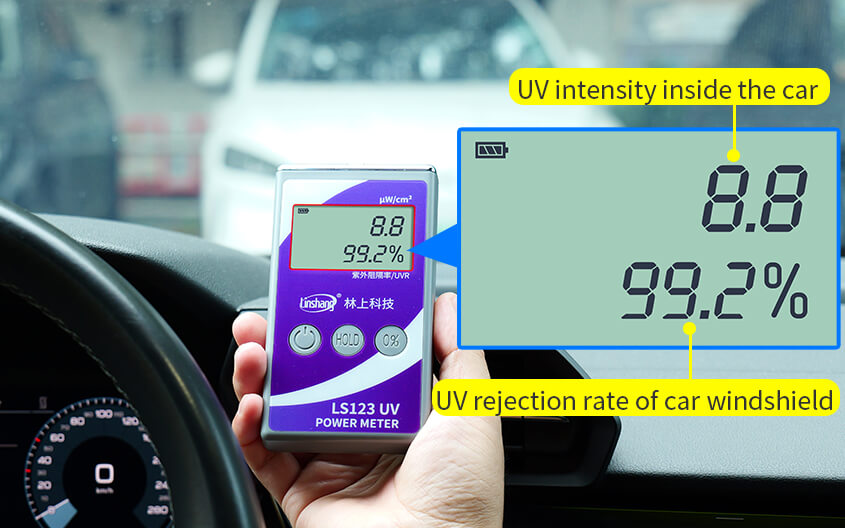

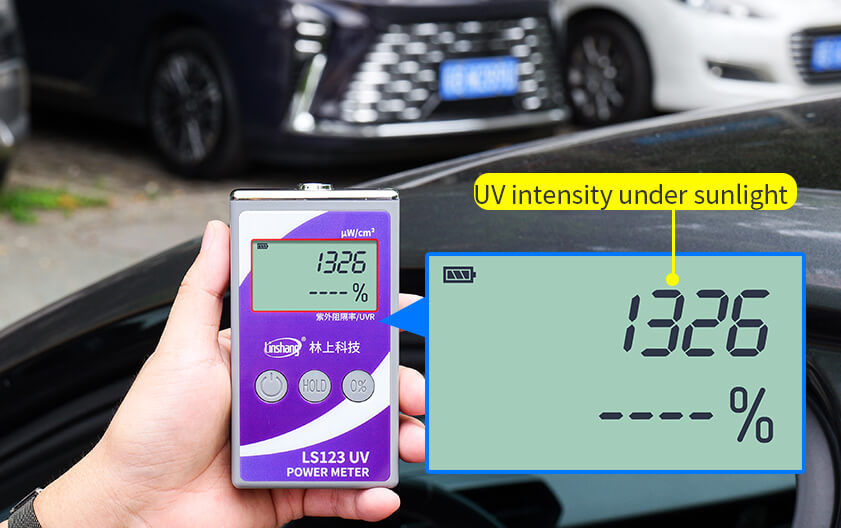

LS123 ultraviolet power meter function display
LS123 ultraviolet power meter function display

II.UV Power Meter Parameters

Power range 0-40000 μW / cm²
Measurement accuracy ± 10%
Ultraviolet rejection rate -999%-100%
Spectral response 260nm-380nm, λp=365nm
Photosensitive aperture 10mm
Dimension 125mm × 69mm × 24.5mm (L*W*H)
Weight about 140 g (including battery)
Working temperature -20 ° C-+ 70 ° C
Power supply AAA alkaline dry batteries

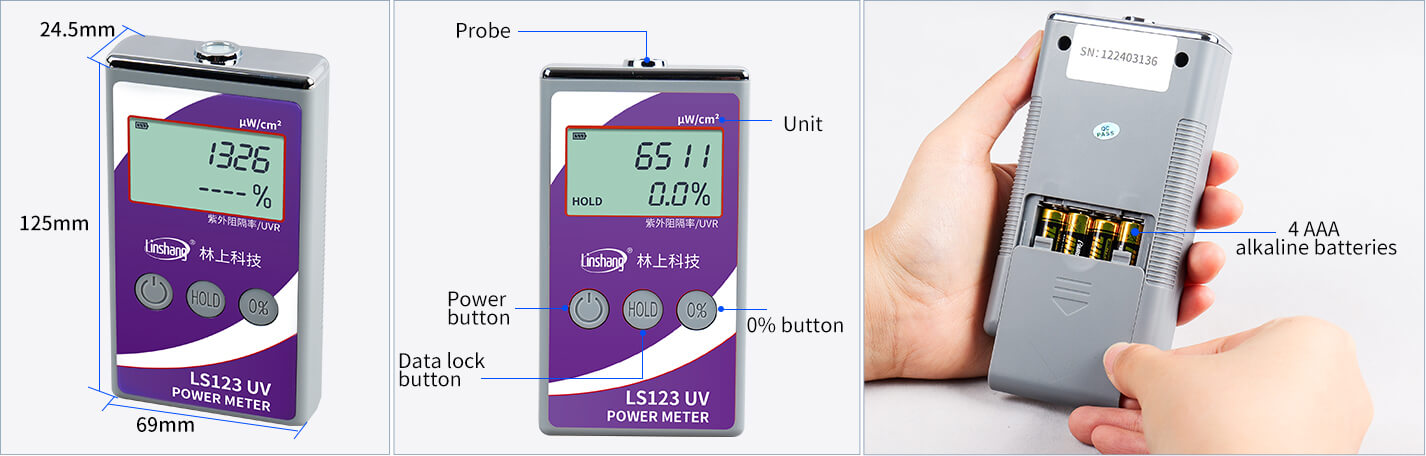

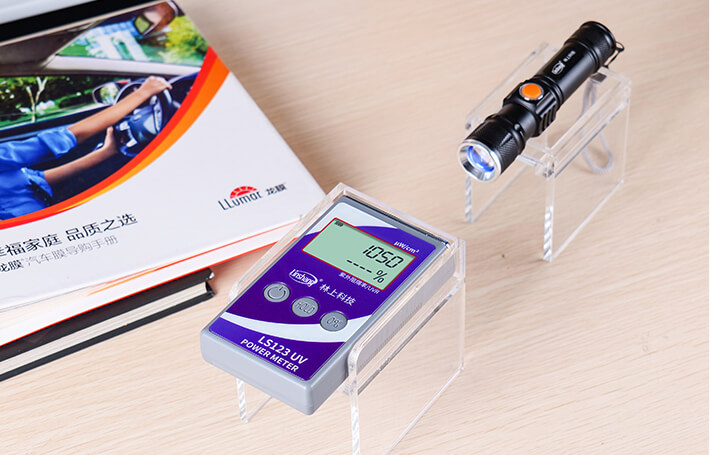

LS123 UV lamp intensity meter appearance
LS123 UV lamp intensity meter appearance

III.UV Power Meter Characteristics

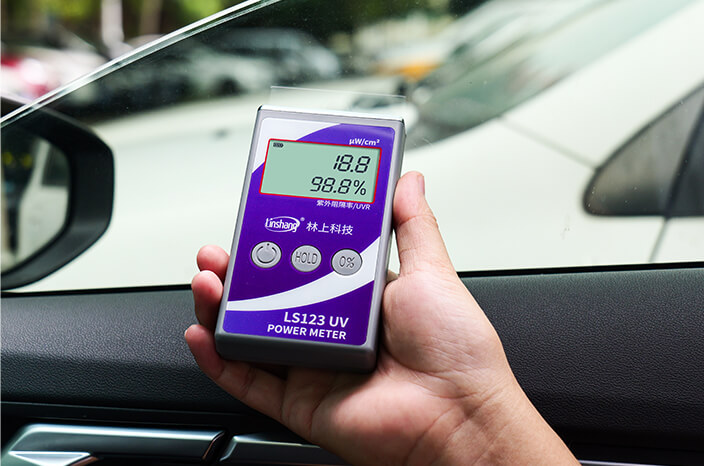

1. The LS123 UV power meter is suitable for testing the ultraviolet rejection performance of explosion-proof films, automotive insulation films, solar films and insulating glass.

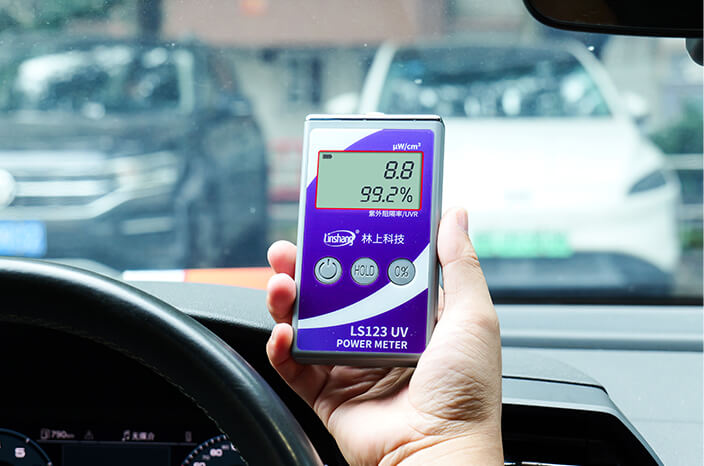

2. It can be used to measure the radiation intensity (ultraviolet power density) of ultraviolet light sources (sunlight, ultraviolet flashlight, etc.).

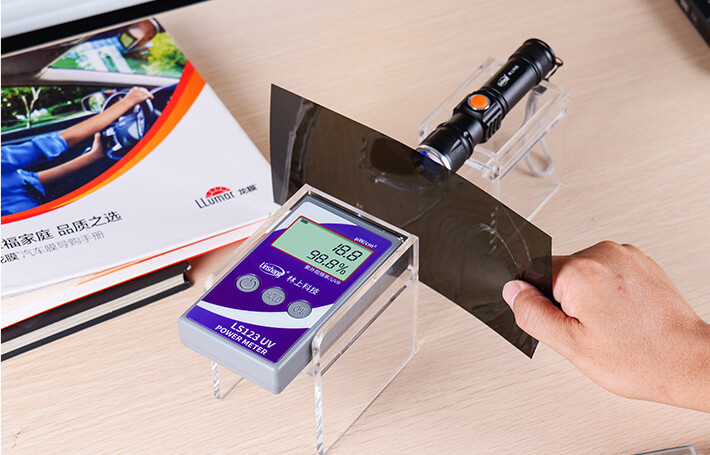

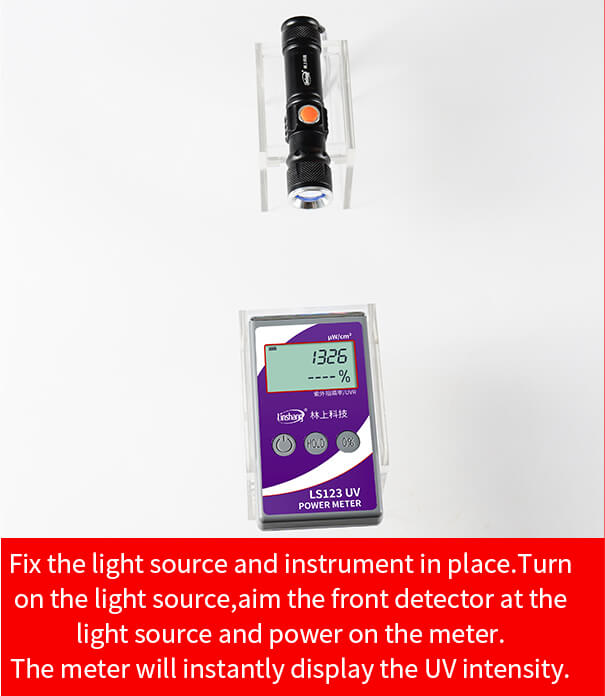

LS123 ultraviolet power meter measure light intensity
LS123 ultraviolet power meter measure light intensity

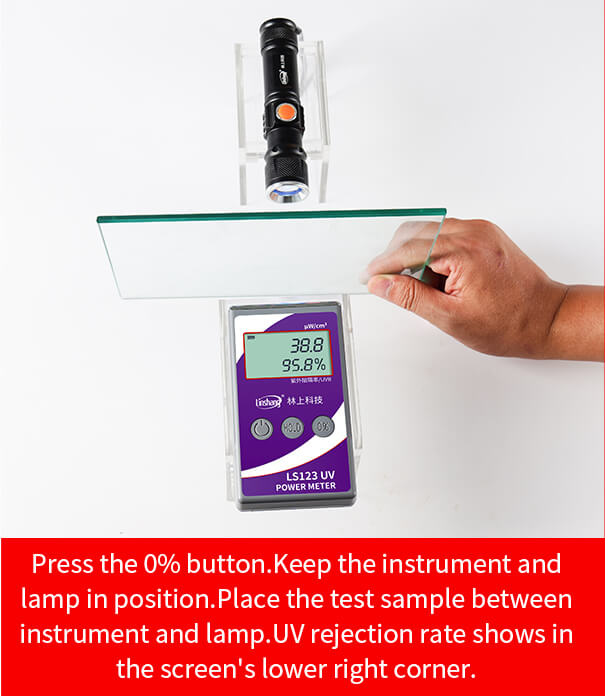

3. The ultraviolet power meter has a fast measurement speed which can automatically convert the ultraviolet rejection rate of the material. The rejection rate will be displayed on the interface directly for easy reading.

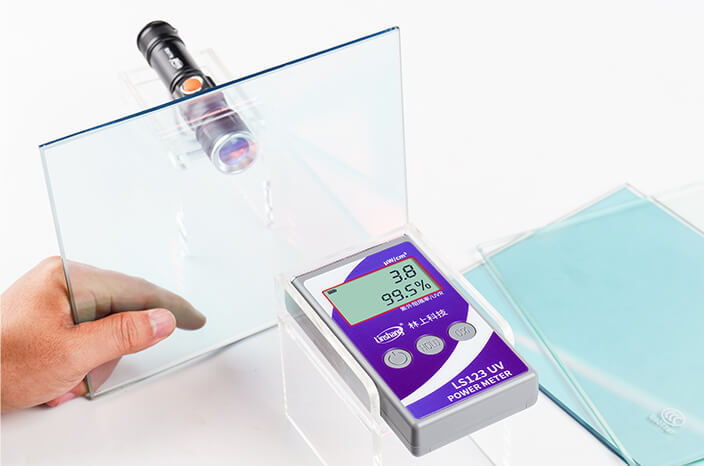

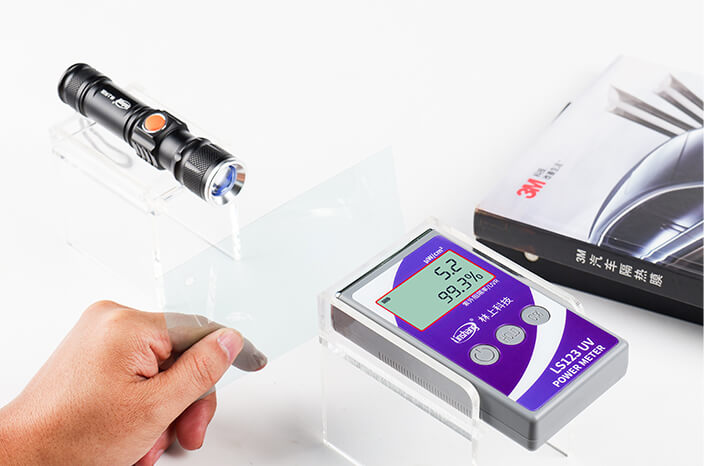

LS123 ultraviolet power meter measure rejection rate
LS123 ultraviolet power meter measure rejection rate

4. The UV lamp intensity meter has wide spectral response which can test the ultraviolet intensity from 260nm-380nm wavelength.

LS123 ultraviolet power meter spectral response curve
LS123 ultraviolet power meter spectral response curve

IV.UV Power Meter Operation Video

V.UV Power Meter Packing Details

No. Description Quantity Unit
1 LS123 UV Power  Meter  1 pcs
2 AAA battery 1 pcs
3 User Manual   1 pcs
4 Certificate / warranty card  1 pcs
5 Packing box dimension21*13*6 cm(L*W*H) 1 pcs
LS123 UV power meter package
LS123 UV power meter package

VI. UV Power Meter After-Sales Service

  1. The meter has one-year warranty. If the instrument works abnormally, please send the whole instrument to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: https://www.linshangtech.com/

Service hotline: 0755-86263411 Email: sales21@linshangtech.com

For more information about the window film transmission meter selection, please click on the article below for details

Window Film Transmission Meter Selection and FAQ.

VII. FAQ about LS123 UV Power Meter

  1. 1. Can LS123 measure UVA curing lamps?

    LS123 UV power meter is mainly used to test the radiation intensity of UV light sources such as sunlight and low-intensity flashlights.

    It can't be used to measure UV lamps in professional industries such as UV curing, sterilization, PCB exposure, etc. The range, accuracy and spectral response range of the instrument are not suitable.

  2. 2. The difference between LS123 UV power meter and window film transmission meter

    LS123 UV power meter can test the power (irradiation intensity) of UV rays, as well as the UV rejection rate of solar film, glass and other materials.

    The UV response band of LS123 is 260-400nm and the peak value is 365nnm. The UV rejection rate calculated by the LS123 UV power meter is the UV rejection rate in this response wavelength range; while the window film transmission meter tests the UV rejection rate at 365nm, so the test data of the two instruments are different. The difference is related to the sensitivity of window film transmittance to wavelength changes.
