LS130 UV Energy Meter

LS130 UV Energy Meter

Details

I. LS130 UV Energy Meter Introduction

Linshang LS130 UV energy meter is a domestic ultraviolet energy meter that can measure UV energy and UV intensity at the same time. Suitable for measuring UV intensity and energy of high-pressure mercury lamps, halogen lamps and other light sources. Suitable for UV curing machine, printing machine, exposure machine, UV dryer and other equipment.

  • A Chinese UV energy meter which ensure to pass the detection by the Chinese National Metrology Institute

  • An UV light integrator for simultaneous measurement of UV energy and UV intensity

  • Simultaneously display real-time power value, maximum power value, energy value and measurement time

  • An UV energy meter that can read data and graphs through special computer software and print test reports

LS130 UV energy meter
LS130 UV energy meter

II. LS130 UV Energy Meter Parameters

Spectral range 315nm-400nm, λp = 365nm
Irradiance measuring range 0-2000mW/cm²
Irradiance resolution 0.1mW/cm²
Energy measuring range 0-999999mJ/cm²
Energy measuring accuracy ±10%,±5% (typical)
Sampling speed 2000 times/second
Irradiance data storage interval 32 times/second
Recording period 32 minutes
Power supply 4 AAA alkaline dry batteries
Display 240*160 Dot matrix LCD
Dimension 160mm× 75mm×13mm(L*W*H)
Weight 303 g
LS130 UV energy meter response curve
LS130 UV energy meter response curve
LS130 UV energy meter display
LS130 UV energy meter display

III. LS130 UV Energy Meter Characteristics

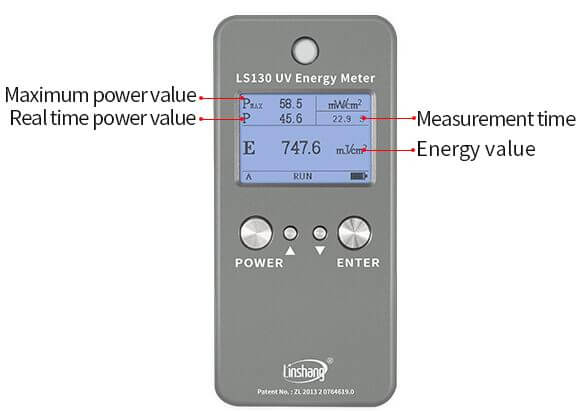

1. Intelligent ultraviolet energy meter, which can measure UV power and energy at the same time. The meter can display real-time power value, maximum power value, energy value and measurement time. The measurement time can accurately show the UV curing time.

LS130 UV energy tester statistics function display
LS130 UV energy tester statistics function display

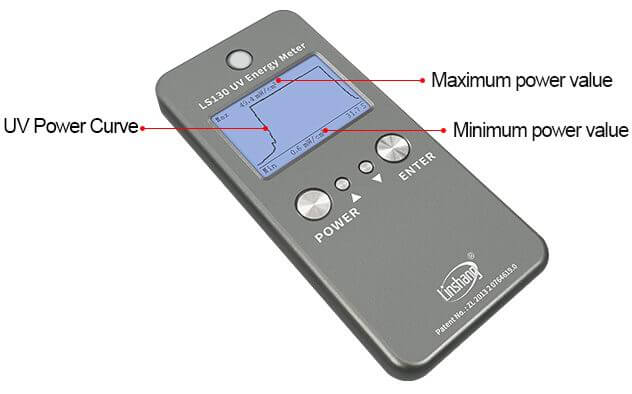

2. The large liquid crystal screen directly displays the power curve. The power curve can be used to analyze the intensity distribution of the light source. The front detector design facilitates the reading of data.

LS130 UV energy meter power curve interface
LS130 UV energy meter power curve interface

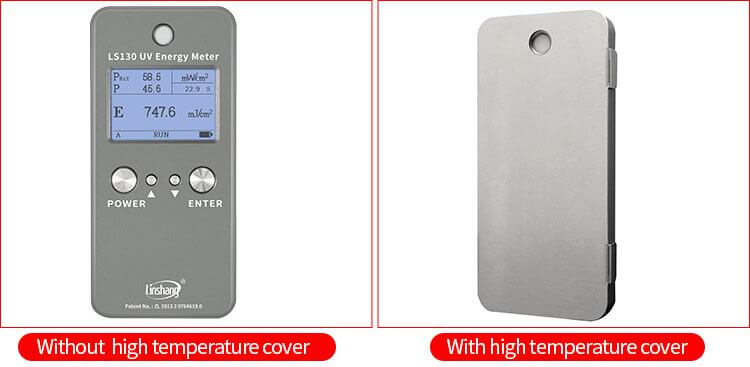

3.Adopting metal shell and high temperature resistant design, the UV light integrator can run in the environment of 100 degrees Celsius for a long time. In addition, the instrument also provides a high temperature cover for users to choose (the high temperature cover is not included as standard). The method of using the high temperature cover is shown in the figure below. Click the article below for details of high temperature experiments: "Use Time of Linshang UV Energy Meter at Different High Temperature"

LS130 ultraviolet energy meter high temperature cover display (optional)
LS130 ultraviolet energy meter high temperature cover display (optional)

4.Built-in timer can accurately record the UV curing time. The ultraviolet energy meter has a built-in large-capacity memory that can record up to 60,000 sets of power data.

5.Automatically display the last test data after power on. Avoid data loss due to power failure.

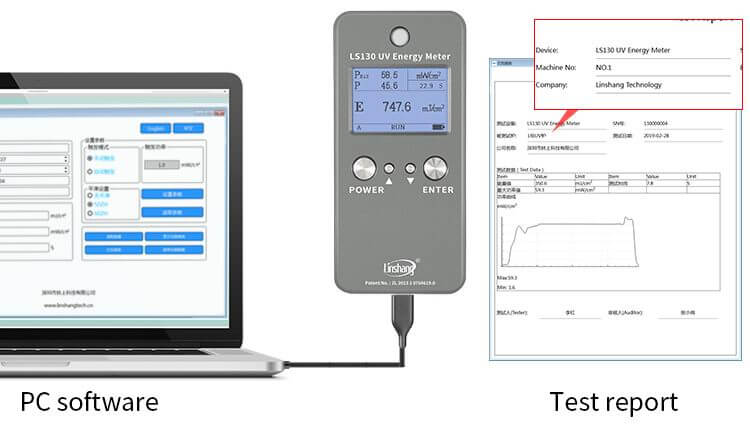

6.Complimentary computer software. The instrument is connected to the computer through a USB interface. We can read detailed test data and print a test report.

LS130 UV energy tester connected to a computer to export the report
LS130 UV energy tester connected to a computer to export the report

7.The detector is located on the same side of the screen and we can read data during the test.

LS130 UV energy meter front detector position display
LS130 UV energy meter front detector position display

8.High accuracy. Fast-speed data collection at 2048 times / second to make the measurement data more accurate. The UV light integrator has passed and obtained test certificates from many authoritative testing agencies.

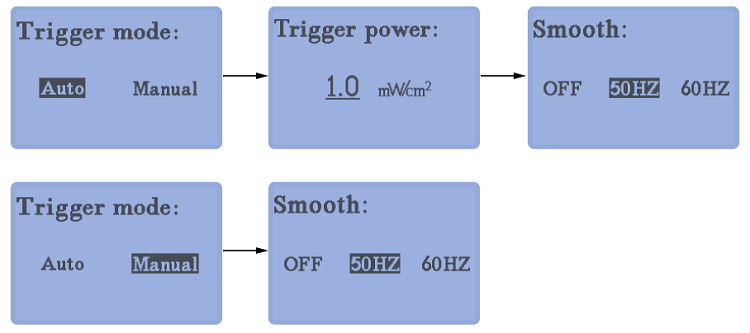

9. Long press the power button in the off state to enter into the parameters setting mode, the setting steps are shown as below:

IV. Product Qualification and Standards

1. Standard

JJG 879-2015 Verification Regulation of Ultraviolet Radiometer

2. Qualification of LS130 UV energy meter

img-alt

CE certificate

patent certificate

patent certificate

calibration report
calibration report

V. LS130 UV Energy Meter Operation Video

LS130 PC software operation

LS130 Operation video

VI. LS130 UV Energy Meter Packing Details

No. Description Quantity Unit
1 LS130 UV Energy Meter 1 pcs
2 USB cable 1 pcs
3 Software USB flash disk 1 pcs
4 AAA battery 4 pcs
5 Small cross screwdriver 1 pcs
6 User Manual 1 pcs
7 Certificate/Warranty card 1 pcs
8 Plastic box dimension 25*21*7
cm(L*W*H)
1 pcs
UV energy meter package
UV energy meter package

VII. LS130 UV Energy Meter After Sales Service

  1. The meter has one-year warranty. If the instrument works abnormally, please  send the whole instrument to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: https://www.linshangtech.com/

Service hotline: 0755-86263411 Email: sales21@linshangtech.com

For the UV energy meter selection, please click “UV Energy Meter Selection and FAQ”.

VIII. FAQ about LS130 UV Energy Meter

  1. 1. The difference between LS130 and LS131 UV energy meters

    LS130 UV energy meter is mainly used to detect 365nm UV high pressure mercury lamp, while LS131 UV energy meter is mainly used to detect 365nm, 385nm, 395nm and 405nm UV LED light sources.

  2. 2. The difference between LS120 and LS130 UV energy meters

    Both LS120 and LS130 are UV energy meters used to detect 365nm high pressure mercury lamps. They can measure the power value (irradiation intensity) of the UV lamp, the energy value and display the power curve; in addition, LS120 can also measure the temperature in the curing machine and display temperature curve, but LS130 does not have this function.

  3. 3. Whether a traceable calibration certificate is included?

    LS120 and LS130 are professional UV energy meters used to detect 365nm high-pressure mercury lamps, which can be ensured to pass the inspection of the Metrology Institute and obtain a calibration certificate (approved by CNAS and ilac-MRA). The cost of the calibration certificate is about US$180 ; LS128 and LS131 are UV energy meters that are professionally used to detect UV LED light sources. There is no unified inspection standard for LED light sources, each light source and UV energy meter manufacturer has their own calibration standards. We can provide the factory calibration reports for these two UV LED energy meters, but no calibration certificates can be provided.

    LS130 and LS131 have certified to CE.

  4. 4. How to calibrate UV energy meter, how often do I need to calibrate and how much does it cost?

    To calibrate the UV energy meter, please send the instrument back to the manufacturer. Generally, it is recommended to calibrate it once a year. If the storage environment is good and the frequency of use is not high, the calibration period can also be extended according to user needs. The first calibration is free, and the cost of each subsequent calibration is US $30.
