I. LS300 Solar Film Temperature Meter Introduction

Linshang LS300 solar film temperature meter is a professional instrument for the demonstration of thermal insulation effects of materials such as automotive films, thermal insulation glass and thermal insulation coatings. It can simultaneously test the thermal insulation effects of two different materials and directly display the temperature difference. This meter is also a solar film temperature measuring box that you can feel the temperature with your hands.

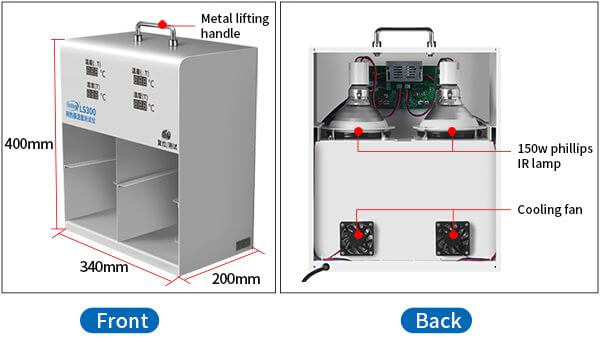

LS300 solar film temperature meter appearance
LS300 solar film temperature meter appearance

II. LS300 Solar Film Temperature Meter Parameters

Unilateral temperature measurement accuracy

± 0.5 °C

Temperature unevenness of double lamps

2°C

Temperature measurement range

-55°C to + 125°C

Temperature test time

1 minute

Test glass size (not included)

200mm × 160mm
Weight about 13 kg
Dimension

340mm ×200mm × 400 mm(L*W*H)

Power supply  220V AC


LS300 automotive window tint meter
LS300 automotive window tint meter

III. LS300 Solar Film Temperature Meter Characteristics

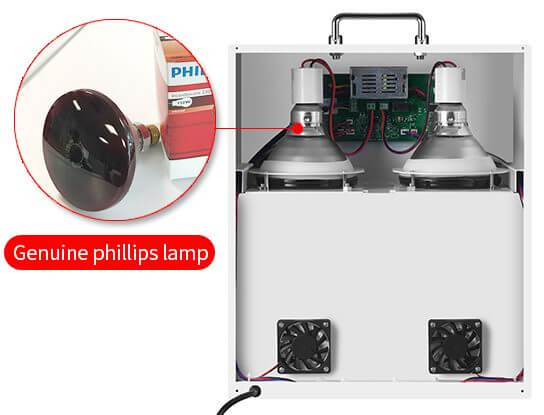

1. Using 150W genuine Philips infrared light with better insulation effect.

LS300 solar film temperature meter back
LS300 solar film temperature meter back

2. The LS300 solar film temperature meter can simultaneously display the real-time temperature value and the rising temperature difference during the test. You can directly touch the temperature inside the box with both hands. We use the following figure as an example to explain how to read and understand the test data.

(1) The temperatures on the left and right sides before the test are 35.8℃and 35.8℃, respectively.

(2) After turning on the light, the left temperature rise 16℃, the temperature difference (16℃) = the temperature after the test (51.8℃)-the temperature before the test(35.8℃).

(3) After turning on the light, the right temperature rise 2.8℃, the temperature difference (2.8℃) = the temperature after the test (38.6℃)-the temperature before the test(35.8℃).

(4) Test results: The smaller the temperature difference, the better the insulation effect of the material.

LS300 solar film temperature meter working process
LS300 solar film temperature meter working process

IV. LS300 Solar Film Temperature Meter Qualification

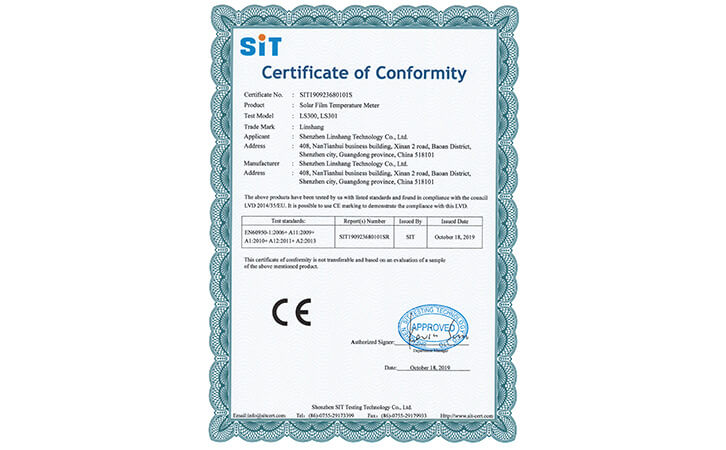

CE certificate

CE certificate

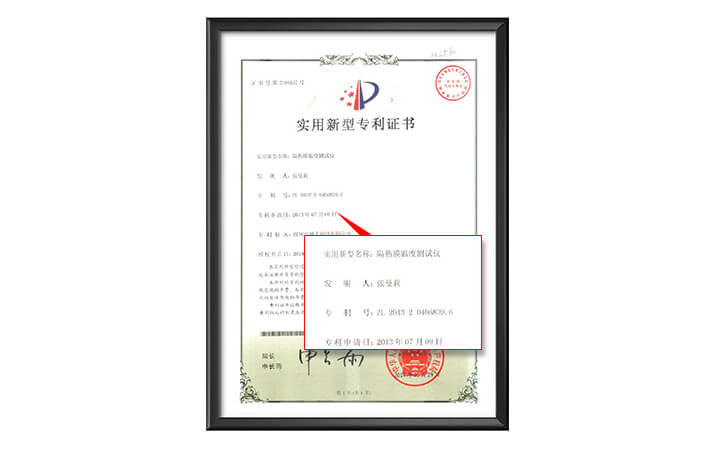

patent certificate

patent certificate

V. LS300 Solar Film Temperature Meter Operation Video

VI. LS300 Solar Film Temperature Meter Packaging Details

No. Description Quantity  Unit
1 LS300Solar Film Temperature Meter 1 pcs
2 User Manual 1 pcs
3 Certificate/warranty card 1 pcs
4 Packing box dimension29*49*41
cm(L*W*H)
1 pcs

VII. LS300 Solar Film Temperature Meter After-Sales Service

  1. The meter has one-year warranty. If the instrument works abnormally, please send the whole instrument to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: https://www.linshangtech.com/

Service hotline: 0755-86263411 Email: sales21@linshangtech.com

For more inforamtion about the window film transmission meter, please click the article below

Window Film Transmission Meter Selection and FAQ.

VIII. FAQ about LS300 Solar Film Temperature Meter

  1. 1. Why is the shipping cost of this device so expensive?

    The device is made of stainless steel, with a net weight of 13kg, so the freight is relatively high.

  2. 2. What is the difference between LS300 and LS301?

    LS300 can display the real-time temperature and temperature difference before and after powering on the IR lamps.

    LS301 can display the real-time temperature and heat rejection rate. (Actually it's the 950nm IR rejection rate of the sample)

  3. 3. What is the suitable glass size for LS300 and LS301?

    The glass size is 20*16cm, the thickness should not exceed 5mm.

  4. 4. What is the specification of the plug? Can you provide plugs of other specifications?

    It uses a three-wire socket, which is a 220V power socket for household appliances in China. Currently, plugs of other specifications are not provided, please purchase adapters or transformers yourself.
