LS125 UV Light Meter+UVA-X1 Probe

LS125 UV Light Meter+UVA-X1 Probe

Details

I.LS125 and UVA-X1 Probe Introduction

The LS125 UV light meter is a smart host that can support 9 different types of probes. Its main function is data display. The UVA-X1 probe is one of the 9 probes equipped with the LS125 host. The probe's spectral response range is 260nm-400nm, calibrated at 365nm. The UV light meter is suitable for detecting the intensity and energy of aging test and sunlight.

If you want to know about other types of probes supported by the LS125 UV light meter host, please click "LS125 Multi-Probe UV light meter Host" for details.

II.UVA-X1 Probe Application

The LS125 UV light meter host with UVA-X1 probe is widely used in the detection of ultraviolet light sources such as sunlight, aging test chamber and welding arc light.

III.UVA-X1 Probe Parameters

Parameters UVA-X1 Probe
Spectral response Spectral response: 260nm-400nm, λp = 365nm
Power measuring range 0 - 200000μW/cm²
Resolution 0.1μW/cm²
Energy measuring range 0-9999999μJ/cm²
Record time 0-99999s
Measuring accuracy ±10%
Sampling speed 6 times/second
Optional unit μW/cm² (default), mW / cm², W / m²
Test Hole Diameter ¢=10mm
Probe size 39mm × 32mm × 15mm(L*W*H)
Packing box dimension 24 * 6 * 5 cm (L * W * H)

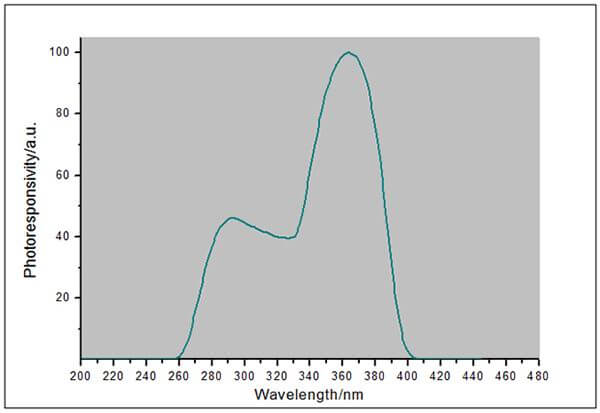

UVA-X1 probe spectral response curve
UVA-X1 probe spectral response curve

IV.UVA-X1 Probe Characteristics

1. It is suitable for ultraviolet detection of light sources such as sunlight, aging test and welding arc light. It can measure energy value and power value at the same time.

2. The Linshang LS125 UV radiometer + UVA-X1 probe has rich statistical functions, real-time power value, maximum value, minimum value, average value, measurement time and energy value are displayed at the same time.

LS125 host with UVA-X1 probe measurement display interface
LS125 host with UVA-X1 probe measurement display interface

3. Adopting advanced digital probe technology, all data collection and processing are completed inside the probe. Data transmission through digital signals with stronger anti-interference ability can ensure more stable test data.

4. With high-speed acquisition characteristics of 6 times / second, the test data is more accurate.

5.Three measurement units can be switched, namelyμW/cm², mW / cm², W / m². Data conversion between different units does not require manual calculation.

LS125 host unit with UVA-X1 probe unit setting interface
LS125 host unit with UVA-X1 probe unit setting interface

V.LS125 Host + UVA-X1 Probe Qualification and Standard

The UV light meter LS125 host + UVA-X1 probe conform to the following standard:

JJG 879-2015 Verification Regulation of Ultraviolet Radiometers

Certificates for LS125 UV radiometer host +UVA-X1 probe
Certificates for LS125 UV radiometer host +UVA-X1 probe

VI. LS125 Mutil-Probe UV Light Meter Operation Video

VII. LS125 Host + UVA-X1 Probe After-Sales Service

  1. The meter has one-year warranty. If the meter works abnormally, pleasesend the whole gauge to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: www.linshangtech.com

Service hotline: 0755-86263411        Email: sales21@linshangtech.com

For more information about the selection of Linshang UV light meters, please click the article below for details.

UV Light Meter Selection and FAQ

VIII. FAQ about LS125 Host + UVA-X1 Probe

  1. 1. The difference between UVA-X0 and UVA-X1 UV probe for LS125 UV light meter host

    1) UVA-X0 probe is mainly used to detect the radiation intensity and energy of 365nm high pressure mercury lamp, the spectral response range is 315-400nm, the power measuring range is 0-2000mW/cm2;

    2) The UVA-X1 probe is mainly used to detect the radiation intensity and energy of low-power UVA light sources, the spectral response range is 260-400nm, the power measuring range is 0-200000μW/cm2.

  2. 2. What's the working temperature of the UV probes?

    The 9 probes of the LS125 UV light meter are not heat-resistant. The probe can be used for a long time at 80℃ or lower. If the temperature is higher than 80℃, it is recommended to use UV energy meter for UVA light source detection.

  3. 3. Which probe is recommended if I need to measure both mercury lamp and LED light source?

    It is recommended to use the LS125 UV light meter host and UVA-X0, UVALED-X0 probes.

  4. 4. Whether a traceable calibration certificate is included?

    UVA-X0 and UVA-X1 are mainly used to detect 365nm high-pressure mercury lamps, which can be ensured to pass the inspection of the Metrology Institute and obtain a calibration certificate (approved by CNAS and ilac-MRA). The cost of the calibration certificate is about US$180 ; but the UVALED-X0, UVALED-X1 and UVALED-X3 probes are professionally used to detect UVA LED light sources. There is no unified inspection standard for LED light sources, each light source and UV energy meter manufacturer has their own calibration standards. We can provide the factory calibration reports for these three probes special for UV LED, but no calibration certificates can be provided.
