LS125 UV Light Meter+UVB-X0 Probe

LS125 UV Light Meter+UVB-X0 Probe

Details

I.LS125 and UVB-X0 Probe Introduction

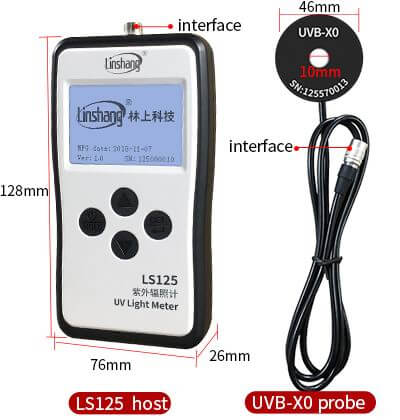

The LS125 UV light meter is a smart host that can support 9 different types of probes. Its main function is data display. The UVB-X0 probe is one of the 9 probes equipped with the LS125 host. The probe's spectral response range is 280nm-315nm, suitable for detecting the intensity and energy of UVB light sources of 297nm,308nm,313nm.

If you want to know about other types of probes supported by the LS125 UV light meter host, please click "LS125 Multi-Probe UV light meter Host" for details.

II.UVB-X0 Probe Application

The handheld LS125 + UVB UV radiometer with UVB-X0 is an instrument for detecting the intensity and energy of UVB band ultraviolet, such as UV light source in the aging test box, plant growth lamp, reptile lamp, phototherapy lamp, welding arc light, etc.

III.UVB-X0 Probe Parameters

Parameters UVB-X0 Probe
Spectral response 280-315nm,suitable for UVB
light source 297nm, 308nm, 313nm etc.
Power measuring range 0 - 200000μW/cm²
Resolution 0.1μW/cm²
Energy measuring range 0-9999999μJ/cm2
Record time 0-99999s
Measuring accuracy ±10%
Sampling speed 6 times/second
Optional unit μW/cm² (default), mW/cm², W/m²
Test Hole Diameter ¢=10mm
Probe size Diameter 46mm × thickness 16.5mm
Packing box dimension 24 * 6 * 5 cm (L * W * H)
UVB-X0 probe spectral response curve
UVB-X0 probe spectral response curve

IV.UVB-X0 Probe Characteristics

1. The UV radiometer is suitable for the intensity and energy test of UVB light source detection in 297nm, 308nm, 313nm and other 280-315nm wavelength range.

2. The Linshang LS125 UV radiometer + UVB-X0 probe has rich statistical functions, real-time power value, maximum value, minimum value, average value, measurement time and energy value are displayed at the same time.

LS125 host with UVB-X0 probe measurement display interface
LS125 host with UVB-X0 probe measurement display interface

3.Adopting advanced digital probe technology, all data collection and processing are completed inside the probe. Data transmission through digital signals with stronger anti-interference ability can ensure more stable test data.

4. With high-speed acquisition characteristics of 6 times / second, the test data is more accurate.

5.Three measurement units can be switched, namelyμW/cm², mW / cm², W / m². Data conversion between different units does not require manual calculation.

LS125 host unit with UVB-X0 probe unit setting interface
LS125 host unit with UVB-X0 probe unit setting interface

V.LS125 Host + UVB-X0 Probe Qualification and Standard

The UV light meter LS125 host + UVB-X0 probe conform to the following standard:

JJG 879-2015 Verification Regulation of Ultraviolet Radiometers

Certificates for LS125 UV radiometer host +UVB-X0 probe
Certificates for LS125 UV radiometer host +UVB-X0 probe

VI. LS125 Mutil-Probe UV Light Meter Operation Video

VII.LS125 Host + UVB-X0 Probe After-Sales Service

  1. The meter has one-year warranty. If theUV light meter works abnormally, please send the whole UV light meter to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: www.linshangtech.com

Service hotline: 0755-86263411        Email: sales21@linshangtech.com

For more information about the selection of Linshang UV light meters, please click the article below for details.

"UV Light Meter Selection and FAQ "

VIII. FAQ about LS125 Host + UVB-X0 Probe

  1. 1. If I need to measure UVA, UVB and UVC radiation intensity, which probe is recommended?

    It is recommended to use the LS125 UV light meter host and UVA-X0, UVB-X0, UVC-X0 three probes together.
