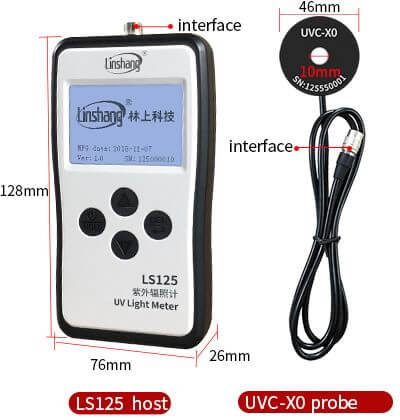

I.LS125 and UVC-X0 Probe Introduction

The LS125 UV light meter is a smart host that can support 9 different types of probes. Its main function is data display. The UVC-X0 probe is one of 9 probes equipped with the LS125 UV radiometer host. The response wavelength of the probe is 230nm-280nm. It is a digital probe that professionally detects the intensity and energy of 253.7nm high-power UVC germicidal lamps.

If you want to know about other types of probes supported by the LS125 UV light meter host, please click "LS125 Multi-Probe UV light meter Host" for details.

II.UVC-X0 Probe Application

Ultraviolet disinfection and sterilization are widely used in hospitals, disease control centers, pharmaceutical factories, food factories, schools, nurseries, cinemas, buses, offices, homes, etc. It can purify the air and prevent bacteria from spreading through the air or passing through the surface of objects propagation. For these places, people need to use UV sterilization will use the UVC-X0 probe to detect UV intensity. For the low pressure mercury lamp detection using LS125+UVC-X0 Probe ,please refer to the following video:

III.UVC-X0 Probe Parameters

Parameters UVC-X0 Probe
Spectral response 230nm-280nm, λp = 254nm
Power measuring range 0 - 200000μW/cm²
Resolution 0.1μW/cm²
Energy measuring range 0-9999999μJ/cm²
Record time 0-99999s
Measuring accuracy ±10%
Sampling speed 6 times/second
Optional unit μW/cm²(default), mW/cm², W/m²
Test Hole Diameter ¢=10mm
Probe size Diameter 46mm × thickness 16.5mm
Packing box dimension 24 * 6 * 5 cm (L * W * H)
UVC-X0 probe spectral response curve
UVC-X0 probe spectral response curve

IV.UVC-X0 Probe Characteristics

1. Large-scale measurement, the maximum power can be measured to 200,000 μW / cm².

2. The instrument can measure energy value and power value at the same time.

3. Adopting advanced digital probe technology, all data collection and processing are completed inside the probe. Data transmission through digital signals with stronger anti-interference ability can ensure more stable test data.

4. The Linshang LS125 UV radiometer + UVC-X0 probe has rich statistical functions, real-time power value, maximum value, minimum value, average value, measurement time and energy value are displayed at the same time.

LS125 host with UVC-X0 probe measurement display interface
LS125 host with UVC-X0 probe measurement display interface

5.Three measurement units can be switched, namely μW/cm², mW / cm², W / m². Data conversion between different units does not require manual calculation.

LS125 host unit with UVC-X0 probe unit setting interface
LS125 host unit with UVC-X0 probe unit setting interface

V.LS125 Host + UVC-X0 Probe Qualification and Standard

The UV light meter LS125 host + UVB-X0 probe conform to the following standard:

JJG 879-2015 Verification Regulation of Ultraviolet Radiometers

Certificates for LS125 UV radiometer host +UVC-X0 probe
Certificates for LS125 UV radiometer host +UVC-X0 probe

VI.LS125 Mutil-Probe UV Light Meter Operation Video

VII.LS125 Host + UVC-X0 Probe After-Sales Service

  1. The meter has one-year warranty. If the UV light meter works abnormally, pleasesend the whole UV light meter to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: www.linshangtech.com

Service hotline: 0755-86263411        Email: sales21@linshangtech.com

For more information about the selection of Linshang UV light meters, please click the article below for details.

"UV Light Meter Selection and FAQ ".

VIII. FAQ about LS125 Host + UVC-X0 Probe

  1. 1. The difference between LS126C and LS125+UVC-X0 UV light meter

    The LS126C UV light meter can only measure the radiation intensity of the germicidal lamp, while the LS125+UVC-X0 can not only measure the radiation intensity, but also the UV dose (energy);

    The radiation intensity measurement range of LS126C is 0-2000μW/cm2, and the radiation intensity measurement range of LS125+UVC-X0 is 0-200000μW/cm2;

    LS126C is equipped with a 1-meter test hook, which can be connected to the mobile phone APP via Bluetooth and the radiation intensity of the germicidal lamp can be monitored in real time through the APP. It can also be connected to PC software to export test data and print reports.LS125+UVC-X0 UV light meter doesn't have the functions described above.

  2. 2. The difference between UVC-X0, UVCWP-X1 and UVCLED-X0 UV probes for LS125 UV light meter host

    UVC-X0 and UVCWP-X1 probes are suitable for detecting 254nm low-pressure mercury germicidal lamps, while UVCLED-X0 is suitable for UVC LED light source; the UVCWP-X1 probe is a waterproof probe with 1m waterproof depth.

  3. 3. Can I use LS125+UVC-X0 UV light meter to measure the wavelength of UV lamps?

    No, the LS125+UVC-X0 UV light meter can only measure the UV radiation intensity and energy (dose) of the germicidal lamp, and cannot measure the wavelength. If you need to measure the wavelength, you need to use more professional equipment,such as spectrometer.

  4. 4. Which probe is recommended if I need to measure both 254nm low-pressure mercury lamp and UVC LED light course?

    It is recommended to use the LS125 UV light meter host and UVC-X0, UVCLED-X0 probes.

  5. 5. Whether a traceable calibration certificate is included?

    UVC-X0 and UVCWP-X1 are mainly used to detect 254nm low-pressure mercury germicidal lamps, which can be ensured to pass the inspection of the Metrology Institute and obtain a calibration certificate (approved by CNAS and ilac-MRA). The cost of the calibration certificate is about US$180 ; but the UVCLED-X0 probe is professionally used to detect UVC LED light sources. There is no unified inspection standard for LED light sources, each light source and UV energy meter manufacturer has their own calibration standards. We can provide the factory calibration reports for UVCLED-X0 probe, but no calibration certificates can be provided.

  6. 6. What's the working temperature of the UV probes?

    The 9 probes of the LS125 UV light meter are not heat-resistant. The probe can be used for a long time at 80℃ or lower. If the temperature is higher than 80℃, it is recommended to use UV energy meter for UVA light source detection.
