LS196 Gloss Meter

Large range, high precision, excellent quality

60° universal angle design and maximum measuring range up to 1000GU
High precision, and conform to Chinese Grade 1 gloss meter standards
Support QC mode to improve measurement efficiency

Buy Now Request A Quote

LS196 is a handheld gloss meter. Thanks to its ivory white engineering housing, its appearance is simple and generous. It features 60° universal angle design, measuring range up to 1000GU, simple operation, and instant testing without waiting. The device supports normal mode and QC mode. In QC mode, it can automatically determine whether the gloss of the material is qualified, thus the measurement efficiency is improved.  The device is professionally used for the surface gloss measurement of paints, coatings, inks, plastics, ceramics, stones, metals and other materials.

Video

Please watch the video as above to learn more about features and operation.

Parameter

Parameter Value
Measuring Angle 60°
Measuring Aperture 9mm*15mm
Minimum Test Material Size 20mm*10mm
Measuring Range 0-1000GU
Resolution 0.1GU
Repeatability 0-100GU:±0.2GU
100-1000GU:±0.2%reading
Reproducibility 0-100GU:±0.5GU
100-1000GU:±0.5%reading
Zero Error 0.1GU
Indication Error 0-100GU:±1.5GU
100-1000GU:±1.5%reading
Weight About 237g
Power Supply Lithium rechargeable battery 3.7V@650mAh
Display 240×128 Dot Matrix
Language Simplified Chinese, English
Charge Port USB(Type-C)
Data Transmission USB
Working Temperature 10~45℃,0~85%RH (no condensation)
Storage Temperature  -10~60℃,0~85%RH (no condensation)

Feature

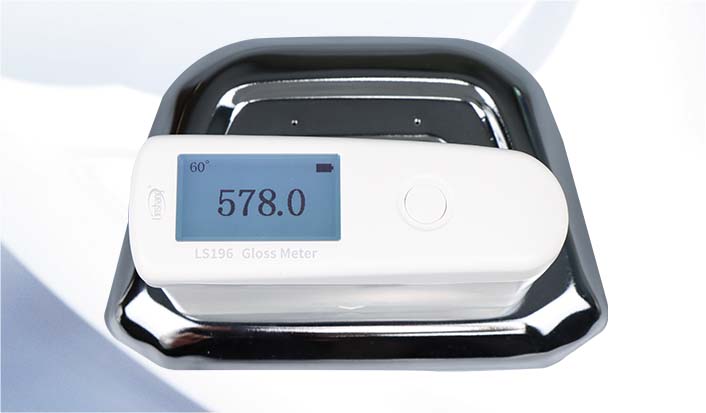

1000GU large range design

The range of LS196 gloss meter reaches 1000GU, which makes it easy to measure various high gloss materials such as metal products and electroplated workpieces.

60° universal angle design to meet 98% of measurement requirements

The 60° universal angle design is suitable for the surface gloss measurement of most materials. It has a wide range of applications.

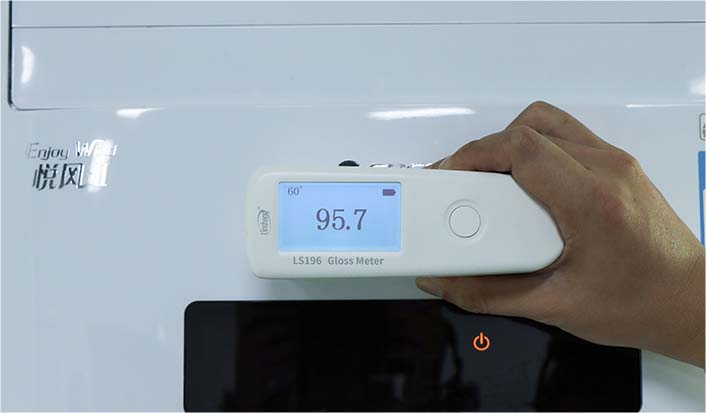

LS196 gloss meter measure computer enclosure

LS196 gloss meter measure computer enclosure

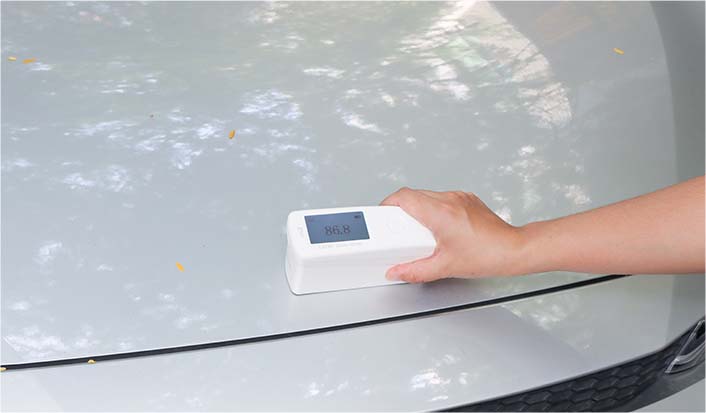

LS196 gloss meter measure car panel

LS196 gloss meter measure car panel

LS196 gloss meter measure plastic

LS196 gloss meter measure plastic

LS196 gloss meter measure metal

LS196 gloss meter measure metal

Our device conforms to Grade 1 gloss meter standards, not all gloss meters can do it

The accuracy of the device in the full range meets the first-class Chinese working machine standards, which ensures that it passes the inspection of the authoritative Chinese metrology organization. Not all gloss meters can do it.

The repeatability is only 0.2GU, and the data is consistent

Use the imported chips and sensors with the unique 50-point linear fitting algorithm. Repeatability reaches ±0.2GU, and resolution reaches 0.1GU. The data remain consistent in the repeated measurement at the same position.

Just put and test, refuse to wait for 0.5s

After the device is turned on, there is no need of button operations. You just put and test and don't have to wait for even 0.5s.

QC mode for auto qualification

In addition to normal mode, the device also supports QC mode. In this mode, the user can customize the upper and lower limits for qualification judgment. This mode is suitable for batch testing.

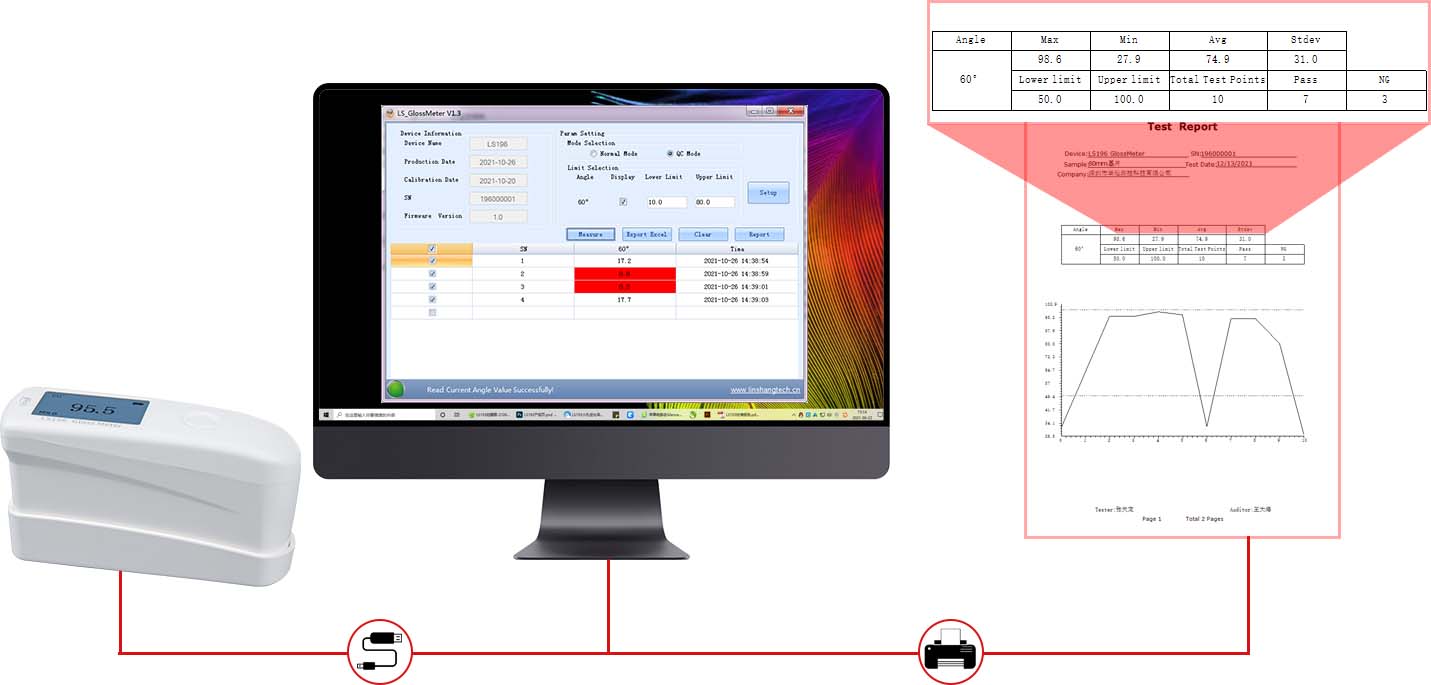

Support PC software to generate test reports

The device is supported by powerful PC software, which realizes online measurement and generates reports. The measurement results are clear at a glance.

Smooth appearance and comfortable grip

Thanks to the ivory white engineering plastic housing, the device features smooth appearance, ergonomic design, comfortable grip, and effortless long-term measurement.

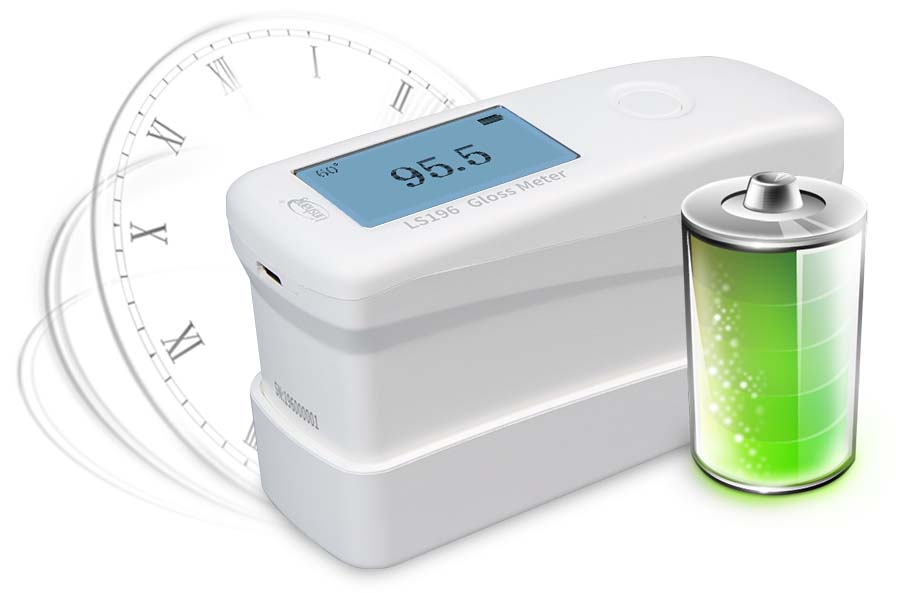

Long battery life, energy saving and environmental protection

The device has an auto shutdown function. It has a built-in lithium battery characteristic of a long-lasting battery life and continuous measurement of 115,200 times when fully charged.

Strive for perfection, and pursue excellent quality

634 calibration tests
67,300 stability tests
260 hrs of the accelerated aging test
12,000 vibration tests.

Environment temperature compensation

The device features the function of the environment temperature compensation. So measurement values are stable, and no frequent calibrations are required

One-button calibration for accurate measurement

Upon power on, press the button for only one time, and calibration is complete. Thus the measurement accuracy is ensured

Qualifications and Standards

Product Standards

LS196 gloss meter meets the following standards:ISO2813, ISO7668, ASTM D523, ASTM D2457, DIN 67530, GB/T9754, GB/T13891, GB/T7706, GB/T8807

It also meeting all the requirements of 1st class working machine calibration in JJG 696-2002 Verification Regulation of Specular Gloss Meters and Gloss Plates LS192 gloss meter certificates.

Product Qualifications


Software and Installation

Software download

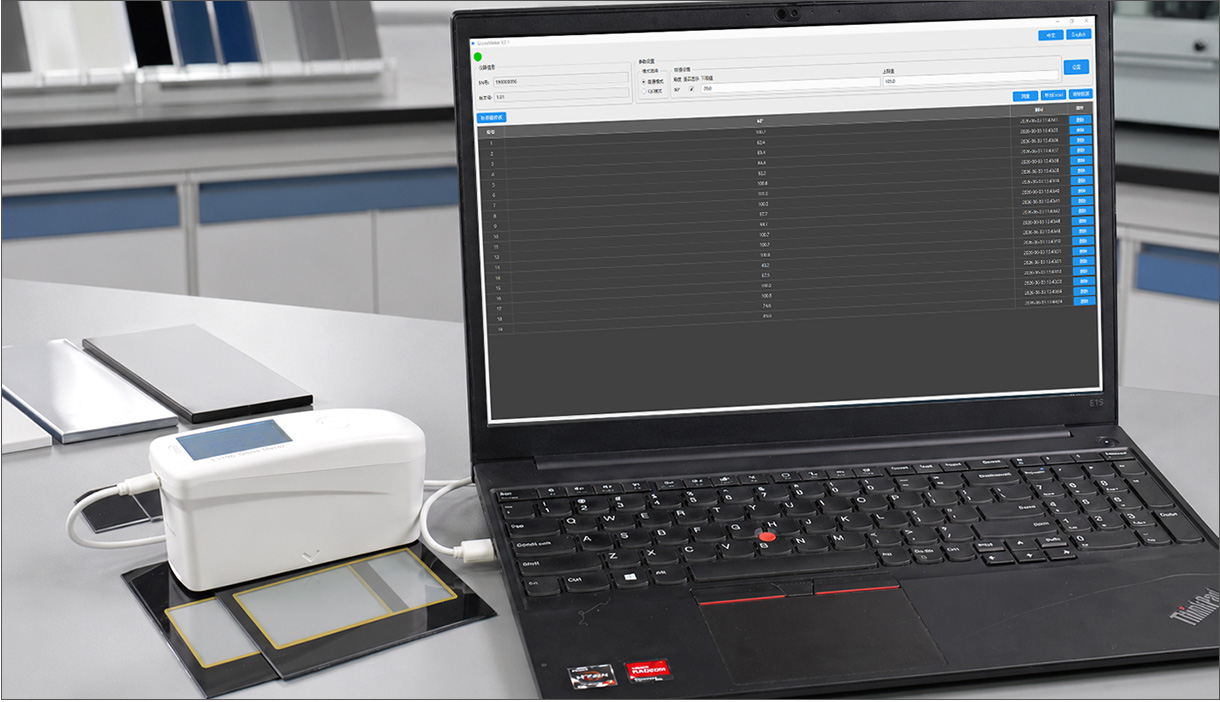

Use software to measure, set parameters, generate report and print test report by Connecting PC via USB cable( PC software only support Windows system).

Software can be installed by the options as following:

  • run the PC software in the U-disk in the packing, no need of installation

  • download online to save in the local disk, and run after unzipping Click to download

Gloss meter model selection

More about Linshang gloss meter price, product model selection, parameter comparison and QA
