I. LS108 Spectrum Transmission Meter Introduction

LS108 spectrum transmission meter is a professional optical transmittance tester for measuring the spectacle lenses, coating materials, organic materials, anti-blue light materials and other materials. The meter combines the three measured light paths into one. Users can select to measure the transmission rate or rejection rate. Four display interfaces can be selected: visible light/blue light/purple light transmission+UV400, visible light/blue light transmission+UV400, visible light/blue light/purple light transmission, visible light/blue light/purple rejection+UV400 .

The LS108 spectrum transmission meter use 395nm purple light source, 430nm blue light source and a visible light source to illuminate the transparent material under test. The sensor detects the incident light intensity of the three light sources and the light intensity after passing through the transparent material under test. The transmitted light intensity and the incident light intensity is the transmittance, expressed as a percentage. Rejection rate=1- transmission rate. The meter is exquisite, small and beautiful.

spectrum transmission meter test lens

spectrum transmission meter test lens

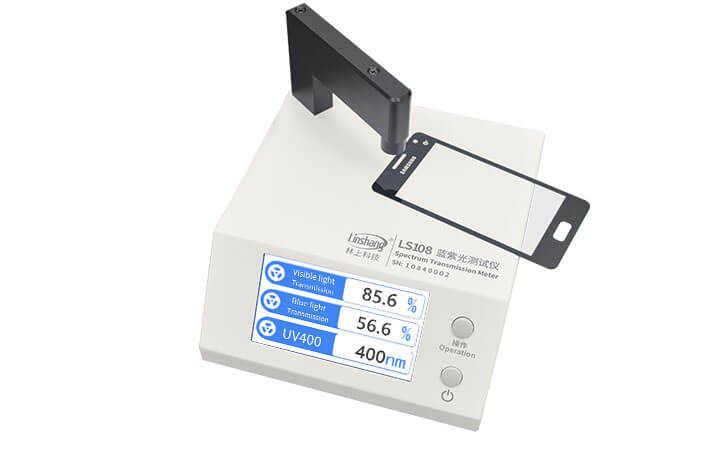

spectrum transmission meter test ir ink hole

spectrum transmission meter test ir ink hole

transmission meter test lens

transmission meter test lens

transmission meter test glasses

transmission meter test glasses

II. LS108 Spectrum Transmission Meter Parameters

Purple light peak wavelength 395nm
Blue light peak wavelength 430nm
Visible light 380nm-760nm full wavelength, in line withCIE photopic luminosity function
Minimum test sample size ¢1mm
Resolution 0.1%
Measurement accuracy better than ± 2% (colorless and uniform transparent material)
Weight about 1570g
Dimension 170mm × 180mm × 144mm(L*H*W)
Power supply 5V AC/DC Adapter or mobile power (optional)
spectrum transmission meter dimension

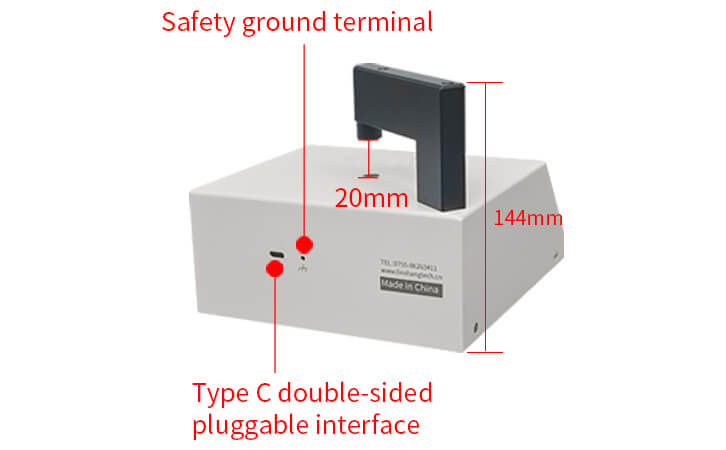

spectrum transmission meter reverse view

III. LS108 Spectrum Transmission Meter Features

1. The spectrum transmission meter has a wide range of applications, suitable for the transmission and rejection rate test of glasses, glass, anti-blue light materials, mobile phone lenses, etc.

2. The light transmission meter can simultaneously measure the transmission value and rejection rate of 430nm blue light /395nm purple light /380nm-760nm visible light and UV400 (the maximum ultraviolet rejection wavelength).

spectrum transmission meter test glassess
spectrum transmission meter test glassess

3. The meter uses one light path. Three transmission values can be obtained by measuring one time.

4. The meter has a real-time dynamic self-calibration function, the transmission meter will be automatically calibrated to 100% transmission or 0% rejection after starting up or when starting a new measurement.

light transmission meter
light transmission meter

5. The test aperture of the instrument is 1mm, which can measure large thickness materials.

6. Compared with the old spectrum transmission meter, the new spectrum transmission meter is compact and easy to carry.

7. Large LCD screen display, exquisite and stylish appearance, can be used to in exhibitions and so on.

8. The spectrum transmission meter has two display interfaces in Chinese and English. Four interfaces can be selected: visible light/blue light/purple light transmission+UV400, visible light/blue light transmission+UV400, visible light/blue light/purple light transmission, visible light/blue light/purple rejection+UV400.

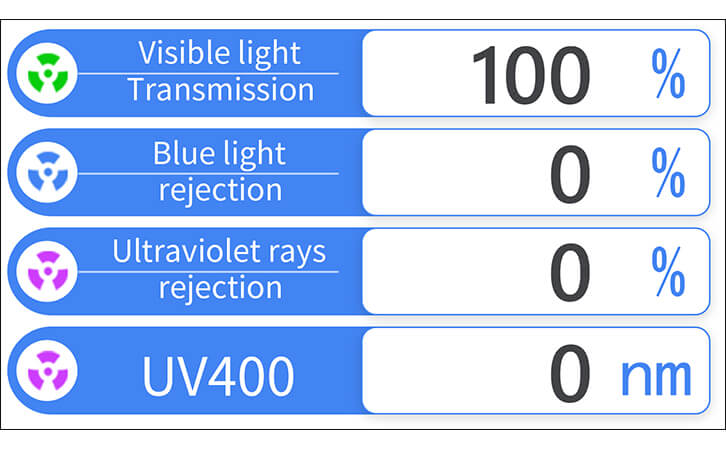

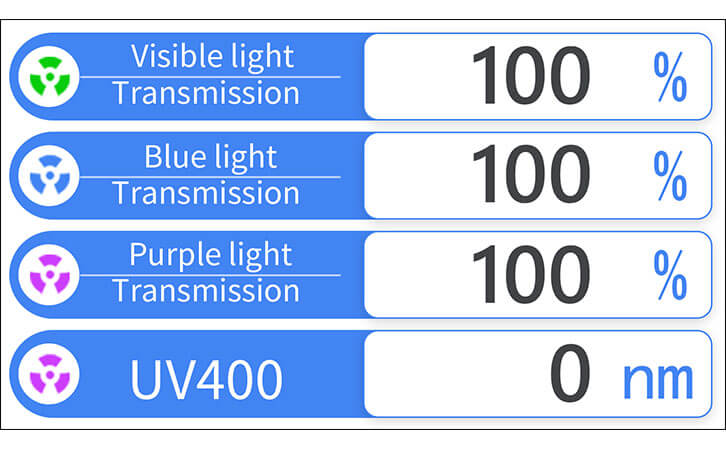

spectrum transmission meter interface
spectrum transmission meter interface

IV. LS108 Spectrum Transmission Meter Qualification

spectrum transmission meter CE certificate

spectrum transmission meter CE certificate

transmission meter utility model patents

transmission meter utility model patents

V. LS108 Spectrum Transmission Meter Operation Video

VI. LS108 Spectrum Transmission Meter Packaging Details

No. Description Quantity Unit
1 LS108 Spectrum Transmission Meter 1 pcs
2 DC5V Adapter 1 pcs
3 User Manual 1 pcs
4 Certificate / warranty card 1 pcs
5 Packing box dimension 231*241*161 cm(L*W*H) 1 pcs
LS108 Spectrum transmission meter packaging
LS108 Spectrum transmission meter packaging

VII. LS108 Spectrum Transmission Meter After-sales Service

  1. The meter has one-year warranty. If the instrument works abnormally, please send the whole instrument to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: https://www.linshangtech.com/
Service hotline: 0755-86263411 Email: sales21@linshangtech.com

For more information about the Spectrum Transmission Meter selection, please click article below for details

Light Transmission Meter Selection and FAQ.

VIII. FAQ about LS108 Spectrum Transmission Meter

  1. 1. What does the UV400 value mean?

    Maximum UV rejection wavelength. For example: UV371 indicates that the maximum ultraviolet rejection wavelength of the tested lens is 371nm, which means that the total rejection effect of the lens on ultraviolet rays is calculated at 371nm.
