I. LS108H Spectrum Transmission Meter Introduction

LS108H spectrum transmission meter is a desktop instrument, which is professionally used for optical transmittance test of various materials such as lens, glass, coating material, organic material and paint, etc. The test aperture of the meter is 1mm, which is suitable for the measurement of light transmittance, infrared and ultraviolet transmittance of small-sized materials. The flat bench-top meter is convenient for placing various test samples. The test is fast and accurate. Once the test material is placed on the meter, the test results will be displayed immediately. The meter use parallel light path design that can measure thick materials.

The LS108H optical transmittance tester use ultraviolet light source, infrared light source and visible light source to illuminate the transparent material under test. The sensor detects the incident light intensity of the three light sources and the light intensity after passing through the transparent material under test. The ratio of the over light intensity to the incident light intensity is the transmittance, expressed as a percentage.

LS108H transmission meter test small-sized materials
LS108H transmission meter test small-sized materials

II. LS108H Spectrum Transmission Meter Application

It is suitable for measuring the transmittance of various uniform transparent materials, such as glass, PC, coated glass, IR hole on the remote control window, plastic, paint, lens, organic glass (acrylic), etc. The test of some materials are described as follows:

spectrum transmission meter

spectrum transmission meter measures remote control window IR hole transmittance

light transmission meter

light transmission meter measures glass

III. LS108H Spectrum transmission meter Parameters

UV peak wavelength 365nm
IR peak wavelength 940nm
Visible light 380nm-760nm full wavelength,in line with CIE photopic luminosity function
Resolution 0.1%
Measurement accuracy Better than ± 2% (colorless and uniform transparent materials)
Minimum test sample size ¢ 1mm
Dimension 170 mm ×180 mm ×144 mm (L*W*H)
Weight about 1570 g
Power supply 5V AC / DC power supply, or powered by mobile power
spectrum transmission meter dimension

spectrum transmission meter dimension

spectrum transmission meter Type C interface

spectrum transmission meter Type C interface

1. Three light sources share a test hole, which can obtain 380nm-760nm visible light transmittance, 940nm infrared and 365nm ultraviolet transmittance in one measurement, easy to operate and save time.

LS108H Transmittance Tester Test Acrylic
LS108H Transmittance Tester Test Acrylic

2. Parallel light design, the measurement results of testing large thickness materials are also stable and accurate.

3. The test aperture is 1mm, which can test the transmittance of small-sized materials.

light transmission meter test aperture
light transmission meter test aperture

4. The light transmission meter has a real-time dynamic self-calibration function, which automatically calibrates to 100% transmittance after startup.

LS108H optical transmittance tester real-time calibration
LS108H optical transmittance tester real-time calibration

5. It is suitable for the transmission test of lens, paint, glass, mobile phone lens, organic material, etc.

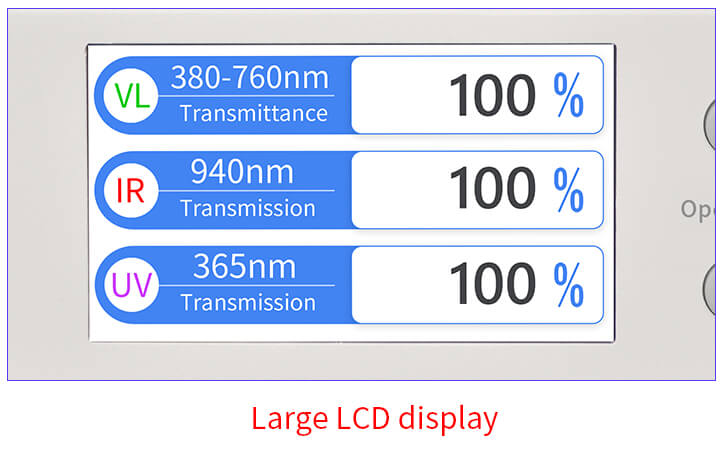

6. Large LCD display, Chinese and English interface can be selected.

light transmission meter interface
light transmission meter interface

7. 5V power supply, convenient to connect with mobile power (charging treasure).

V. LS108H Spectrum Transmission Meter Qualification

spectrum transmission meter CE certificate

spectrum transmission meter CE certificate

transmission meter utility model patent

transmission meter utility model patent

VI. LS108H Spectrum Transmission Meter Operation Video

VII. LS108H Spectrum Transmission Meter Packaging Details

No. Description Quantity Unit
1 LS108H Spectrum Transmission Meter 1 pcs
2 DC5V Adapter 1 pcs
3 User Manual 1 pcs
4 Certificate / warranty card 1 pcs
5 Packing box dimension 231*241*161cm(L*W*H) 1 pcs
LS108H PC material light transmittance tester packaging
LS108H PC material light transmittance tester packaging

VIII.LS108H Spectrum Transmission Meter After-Sales Service

  1. The meter has one-year warranty. If the instrument works abnormally, please send the whole instrument to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: https://www.linshangtech.com/
Service hotline: 0755-86263411 Email: sales21@linshangtech.com

For more information about the Spectrum Transmission Meter selection, please click article below for details

Light Transmission Meter Selection and FAQ.

IX. FAQ about LS108H Spectrum Transmission Meter

  1. 1. The difference between LS108H and LS183 spectrum transmission meter

    Both LS183 and LS108H spectrum transmission meters can measure the transmittance of infrared, ultraviolet and visible light.

    LS183 use a card slot design with a detector hole  diameter of 10mm, suitable for measuring large-sized materials;

    LS108H use a desktop design, the detector hole diameteris only 1mm. It is suitable for measuring small-sized materials, so the price is slightly higher.
