I. LS170 Colorimeter Introduction

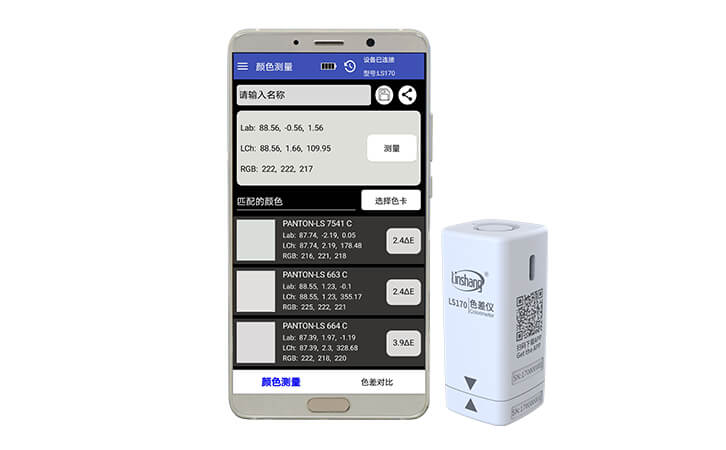

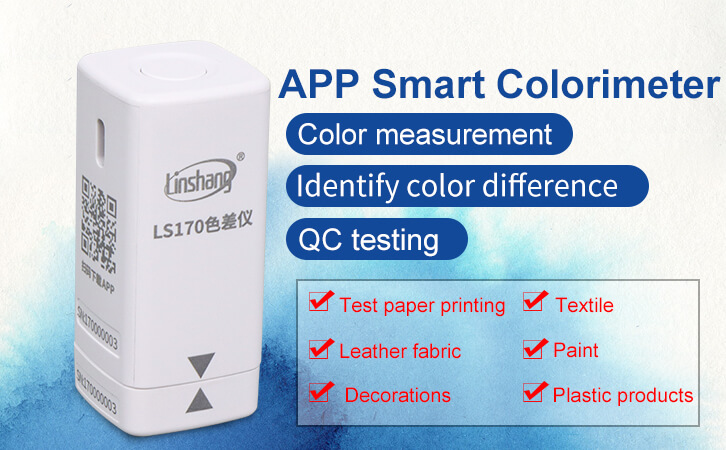

LS170 portable App smart colorimeter is designed to provide users color measurement and stable color comparisons for materials and products wherever color control is important. Linshang LS170 colorimeter is an exquisite and portable color difference measurement tool, this portable colorimeter is widely used in paint, test paper printing, decorations, leather and cotton, textile printing, plastics and other industries. LS170 portable colorimeter has Bluetooth function and it need to be used with the matching mobile APP. It has many color libraries such as Pantone. After connecting to the mobile phone APP via Bluetooth, the meter can quickly measure the color and make color comparisons using a digital method. After quickly matching the color in the color library, you can share the colors to your friends.

portable App smart colorimeter
portable App smart colorimeter

II. LS170 Colorimeter Application

As a portable colorimeter, LS170 is widely used in car paint spraying, test paper printing, leather fabrics, plastic metal, textile and clothing, hardware, furniture industry, plastics, rubber and other fields. Below are some pictures of different materials measured by the LS170 colorimeter.

colorimeter test printed paper

colorimeter test printed paper

colorimeter test paint

colorimeter test paint

colorimeter test leather products

colorimeter test leather products

colorimeter test plastics

colorimeter test plastics

III. LS170 Colorimeter Parameters

Illumination geometry 45/0 (45°annular   illumination, 0° viewing angle)
Illumination light source Full spectrum LED light source
Measuring aperture 8mm
Measurement conditions Light source D65, field of view 10°
Measuring time about 1s
Color space CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex
Color difference formula ΔE*ab, ΔE*uv,   ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
Repeatability Standard deviation ΔE*ab is within 0.03
(average value of 30 measurements on
whiteboard every 3s after calibration)
Dimension  31.7×31.7×70.4mm (L*W*H)
Weight about 51g
Power supply Rechargeable lithium battery 3.7V@700mAh,
can continuously measure 10,000 times under full   power
Data transmission Bluetooth
Charging port USB (Type-C)
Operating temperature 0~45℃, 0~85%RH (no condensation)
Storing temperature -25~55℃, 0~85%RH (no condensation)
LS170 colorimeter structure
LS170 colorimeter structure

IV. LS170 Colorimeter Characteristics

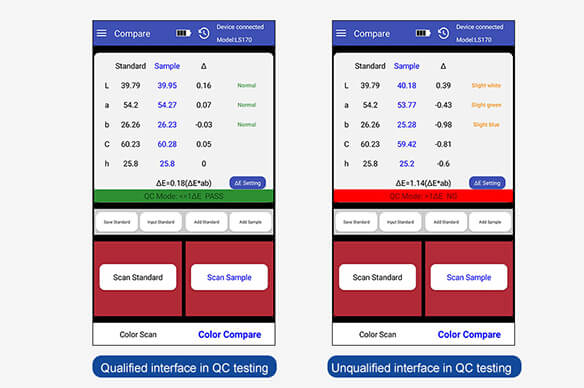

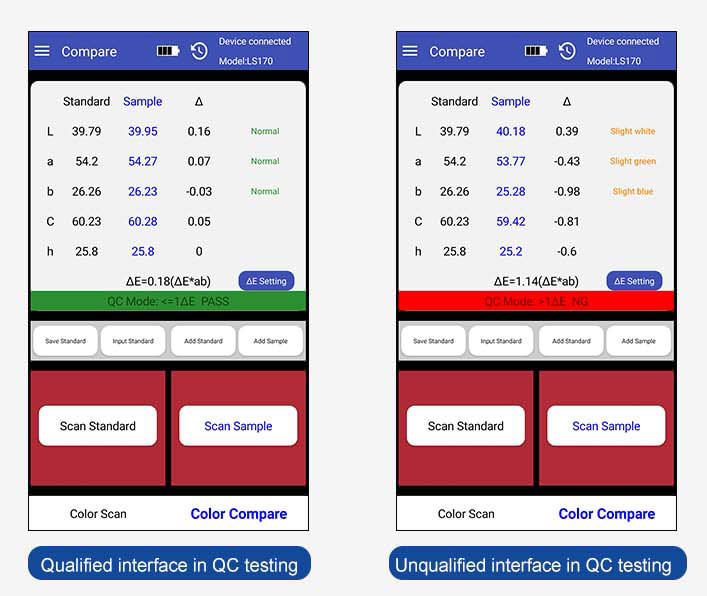

1. Achieve stable color quality using QC testing function when making color comparisons, after customizing the color difference threshold (tolerance value), it can automatically judge whether the color difference is qualified. The color cast direction is also displayed in the right of the ΔE value.

QC testing of colorimeter
QC testing of colorimeter

2. Multiple standard color libraries are stored in the mobile APP, the small colorimeter has fast measurement speed and can quickly match the color close to it. The accuracy rate is as high as 90%, heavy color cards are unnecessary.

3. A large amount of color can be stored in mobile APP and make color measurement anytime and anywhere. Before measuring the color, we can select the color chart we need first.

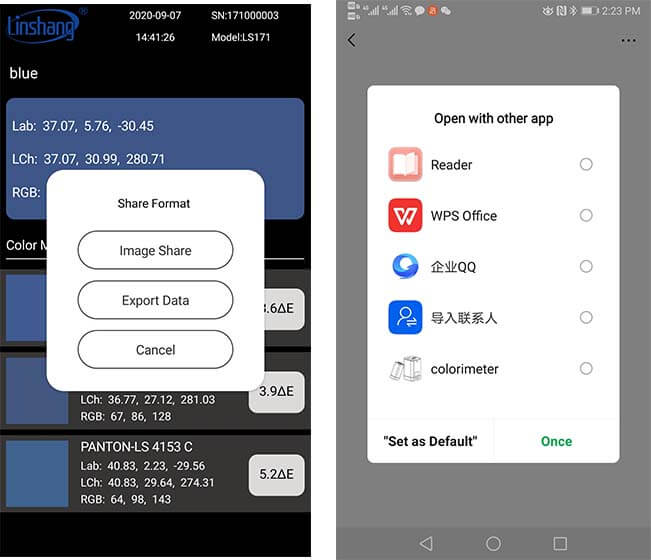

4. Import and export color data via QQ, WeChat, email and other software.

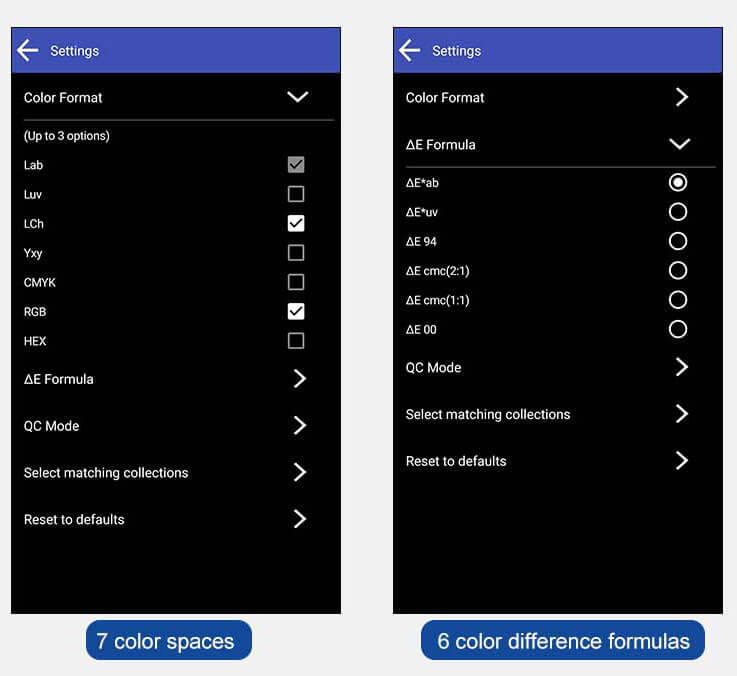

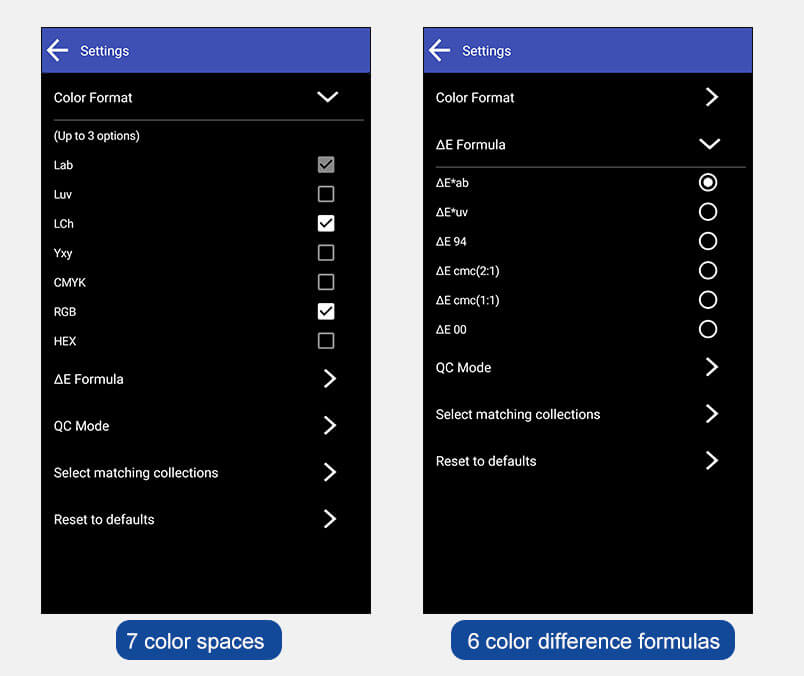

5. LS170 portable colorimeter has 7 color spaces and 6 color difference formulas to meet the needs of different industries.

color spaces and color difference formulas
color spaces and color difference formulas

6. Small as lipstick and it is easy to carry.

colorimeter of small size
colorimeter of small size

7. Support Chinese and English.

8. The built-in lithium battery makes it safer and more convenient to use. It can continuously measure 10,000 times under full power.

9. Simple white board calibration and the built-in compensation light path ensures stable measurement data.

10. The color of standard samples can be added to mobile App.

11. Focus on color measurement and color difference identification, with repeatability ΔE*ab not higher than 0.03.

colorimeter calibration report
colorimeter calibration report

12. The colorimeter is stable to ensure stable measurement data.

V. Product Qualification and Standards

LS170 colorimeter meets the following standards:

GBT 3978-2008 Standard illuminants and geometric conditions

GBT 3979-2008 Methods for the measurement of object color

GBT 7921-2008 Uniform color space and color difference formula

GBT 11186.1-1989 Methods for measuring the color of paint films-Part 1: Principles

GBT 11186.2-1989 Methods for measuring the color of paint films-Part 2: Color measurement

GBT 11186.3-1989 Methods for measuring the color of paint films-Part 3: Calculation of color differences

JJG 595-2002 Colorimeters and Color Difference Meters

VI. LS170 Colorimeter Packing details

No. Description Quantity Unit
1 LS170 Colorimeter 1 pcs
2 USB data cable 1 pcs
3 Cleaning cloth 1 pcs
4 User manual 1 pcs
5 Certificate /   Warranty card 1 pcs
colorimeter packing
colorimeter packing

VII. LS170 Colorimeter After-sales Service

1. The colorimeter has one-year warranty. If the meter works abnormally, please send the whole colorimeter to our company for maintenance

2. Provide users with spare parts and lifelong maintenance services

3. Provide the users with the meter inspection service

4. Free technical support for long term
