LS173 D/8 Colorimeter with Touch Screen

LS173 D/8 Colorimeter with Touch Screen

Details

I. Product Introduction

LS173 is a portable multifunctional colorimeter with D/8° optical geometry design. The color analyzer is equipped with a 3.5-inch IPS color capacitive touch screen, which has an excellent operating experience. The colorimeter integrates multiple natural color charts, which can quickly match the measured color to the closest color codes. The color difference meter also has a color difference comparison function, supports a variety of standard color addition methods, the color difference threshold can be set. The color difference formula can be flexibly selected, which can realize rapid QC testing.

II. Colorimeter Application

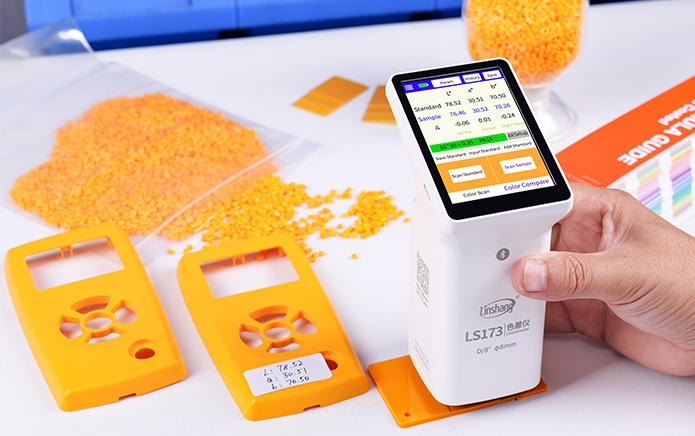

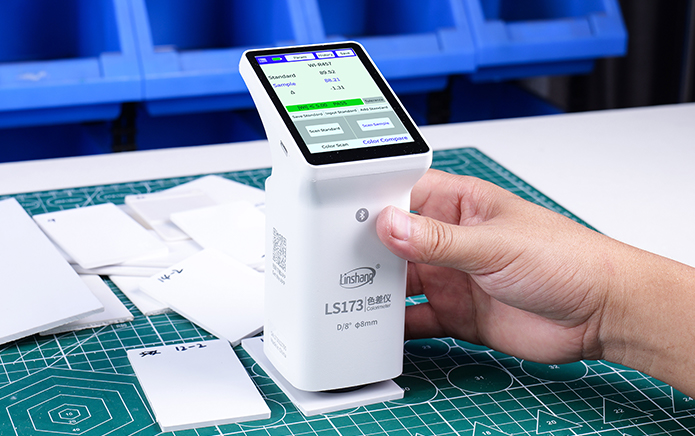

LS173 adopts D/8° specular component include (SCI) and the measured result is closer to the actual color of the object. Usually used in automotive paint, metal processing, stone, ink printing, decorative materials, leather cotton, plastics and plastics industries for product color measurement and management, product color difference quality control. The colorimeter is illuminated by an integrating sphere diffused light source, which is very suitable for color measurement of high-gloss and textured samples.

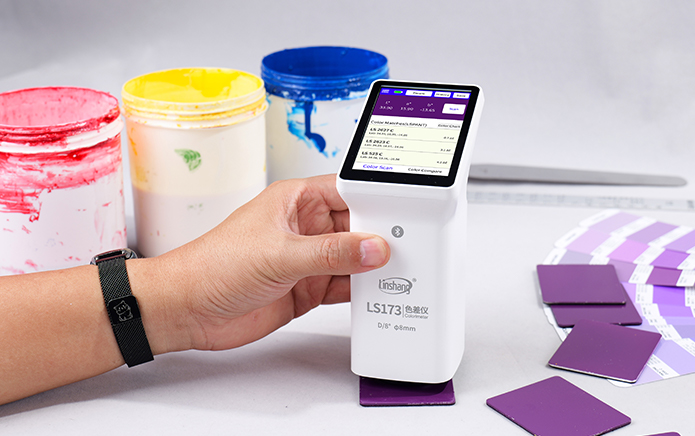

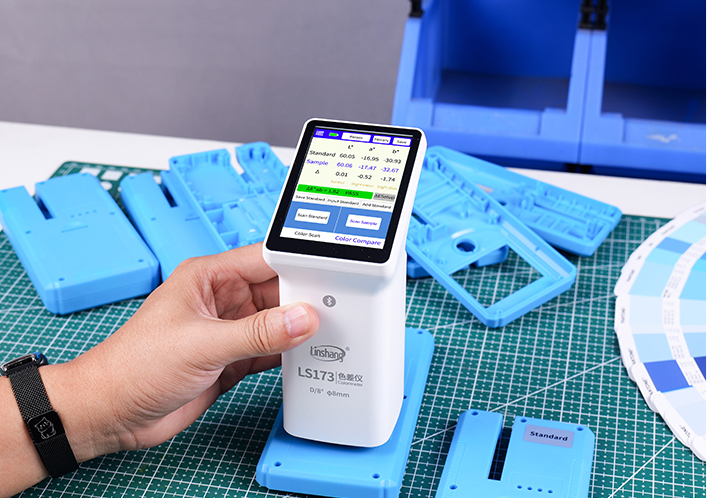

color meter measure PC color
color meter measure PC color

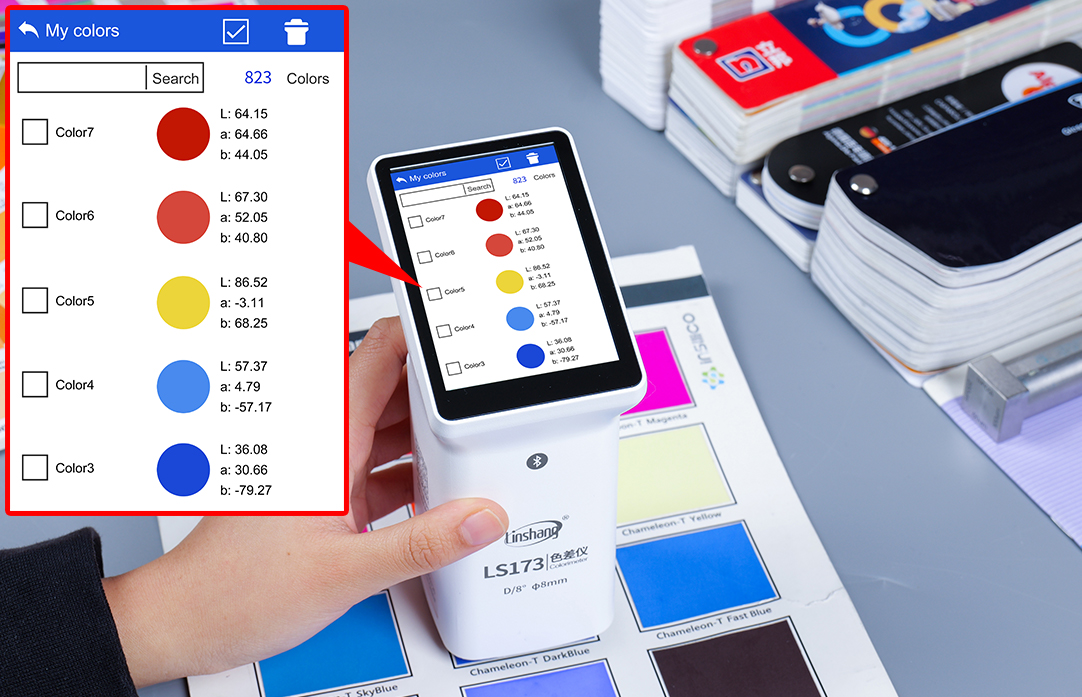

colorimeter measure color chart
colorimeter measure color chart

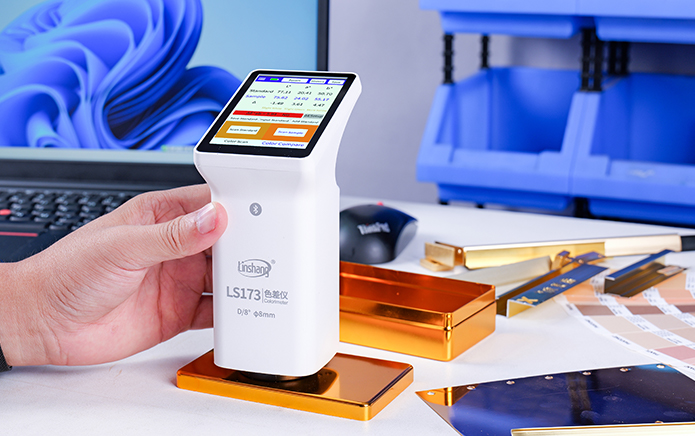

colorimeter measure high gloss materials
colorimeter measure high gloss materials
color meter measure leather
color meter measure leather

III. Parameters

Illumination geometry D/8, specular component include (SCI)

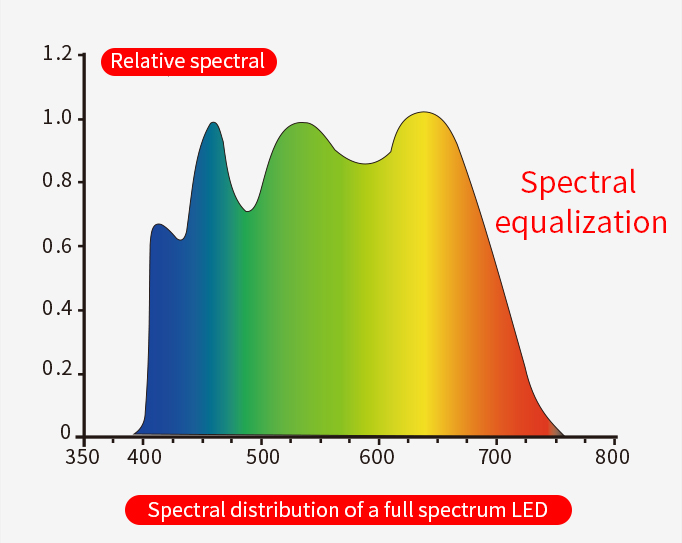

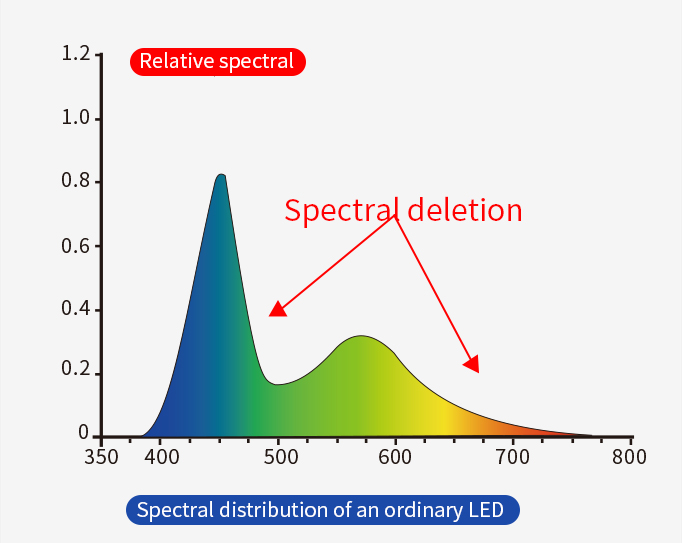

Illumination light source Full spectrum LED light source
Measuring aperture 8mm
Measurement conditions Light source D65, field of view 10°
Measuring time About 1s
Color space CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex
Color difference formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
Repeatability Standard deviation ΔE*ab is within 0.03
(Measurement condition: the average value of
30 measurements on the whiteboard at an
interval of 3s after calibration)
Dimension 86mm×62.5mm×158mm
Weight About 245g
Power supply Rechargeable lithium battery
3.7V@4000mAh, can measure 10,000 times
continuously under full charge
Display 480×320 dot matrix IPS color screen
Language Simplified Chinese, English
Charging port USB (Type-C)
Data transmission USB
Operating temperature range 0~45℃, 0~85%RH (no condensation)
Storage temperature range -25~55℃, 0~85%RH (no condensation)
colorimeter structure
colorimeter structure
colorimeter calibration board
colorimeter calibration board

IV. Features

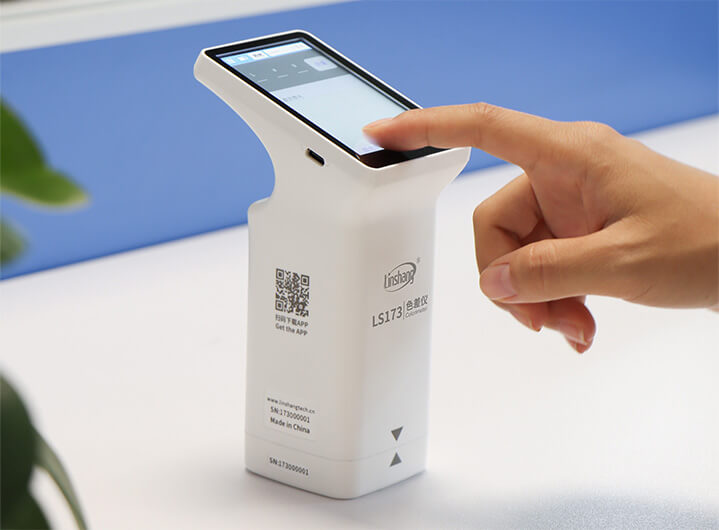

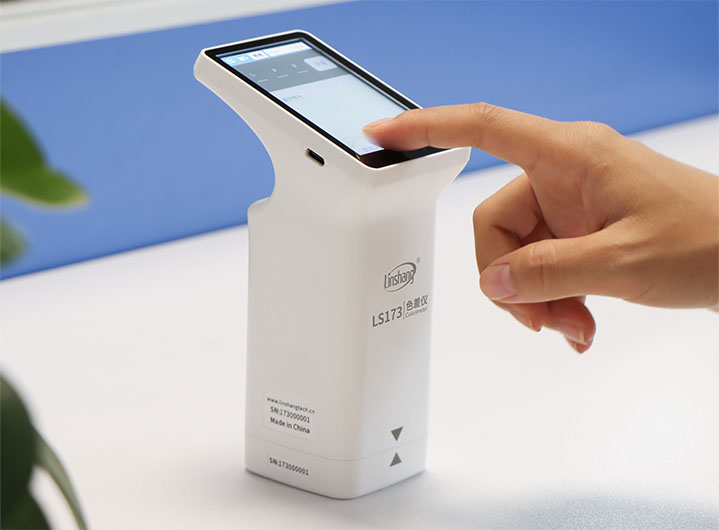

1. The large 3.5-inch touch screen makes the operation more convenient

The colorimeter comes with a 3.5-inch IPS color touch screen, no key operation is required; the screen is tilted at 20 degrees with a perfect viewing angle, convenient for reading. The color analyzer has a good user experience and human-computer interaction interface.

handheld colorimeter
handheld colorimeter

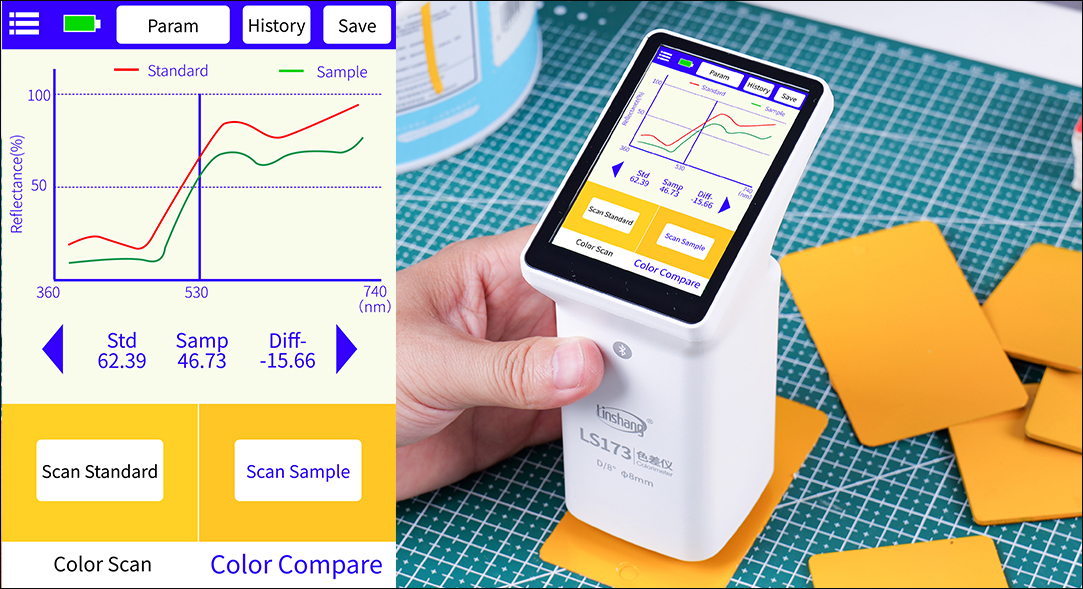

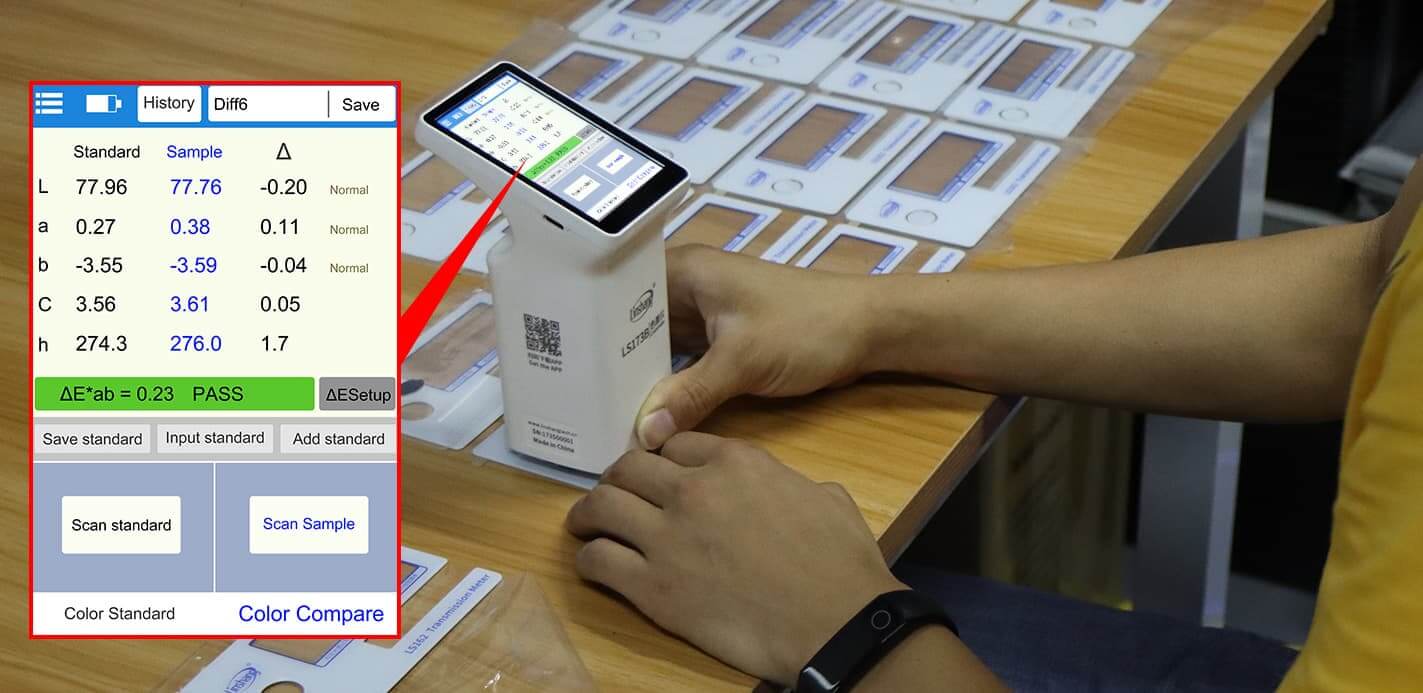

2. Color measurement and color difference comparison function

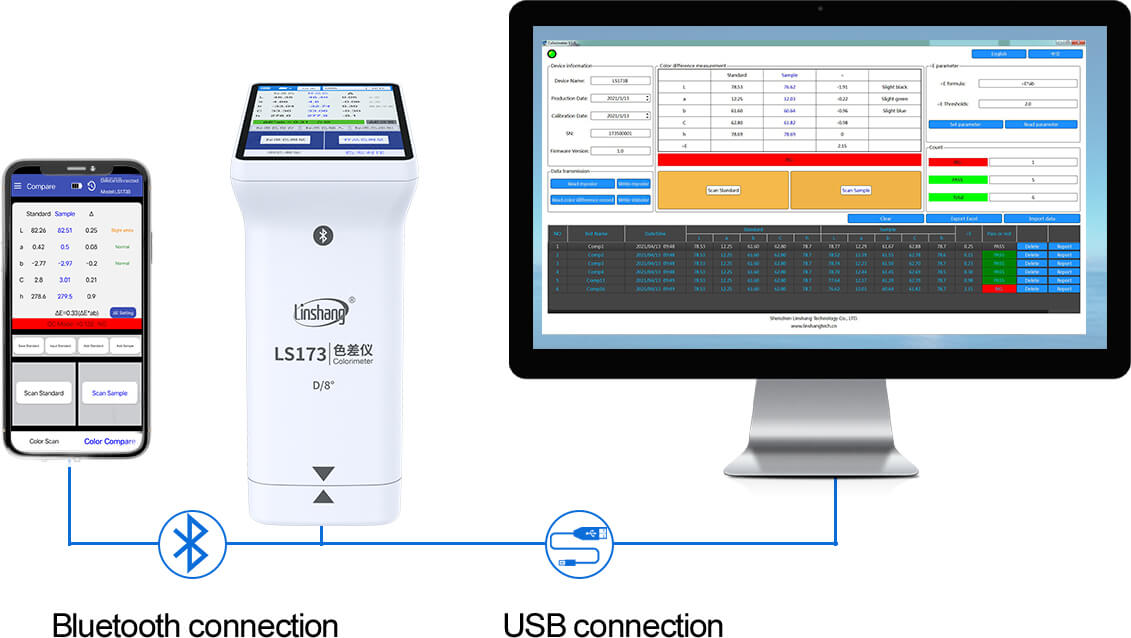

Color measurement can be achieved by touching the screen button or pressing the power button, and the color value can be measured in 1 second.

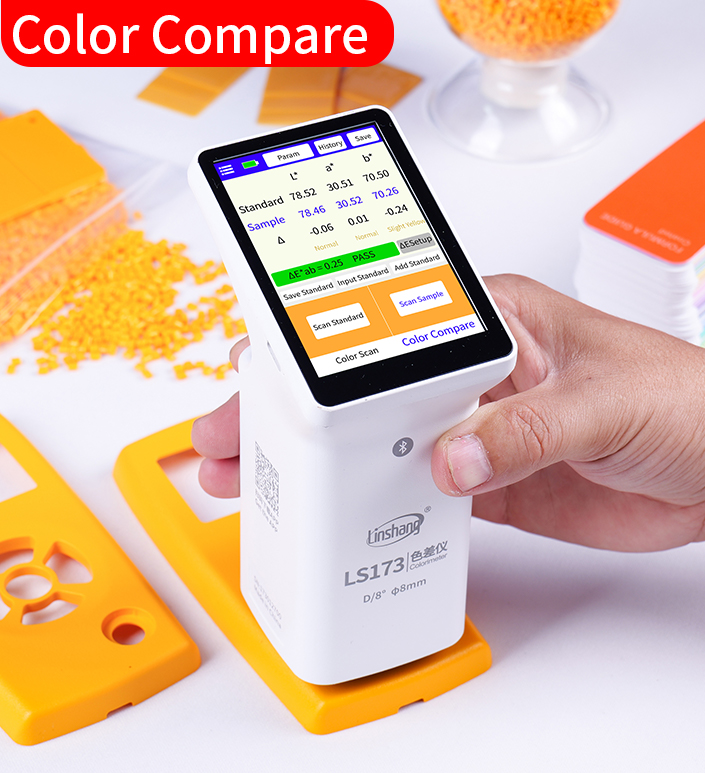

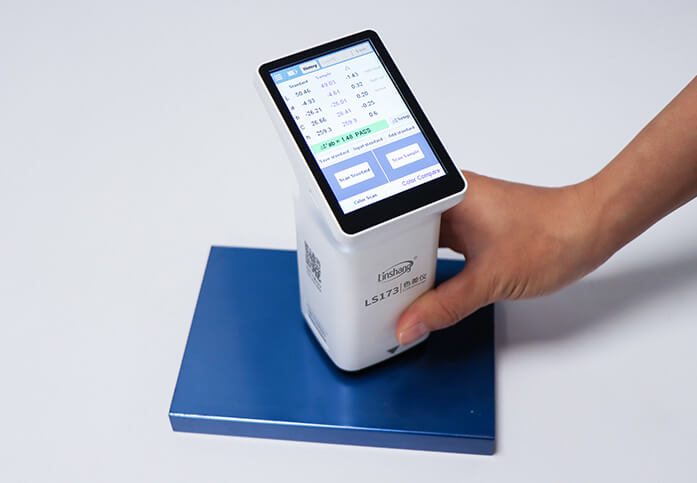

Two clicks can complete the color difference comparison, turn on the QC detection function, batch detection can be performed, and the color difference threshold can be customized to quickly achieve quality control.

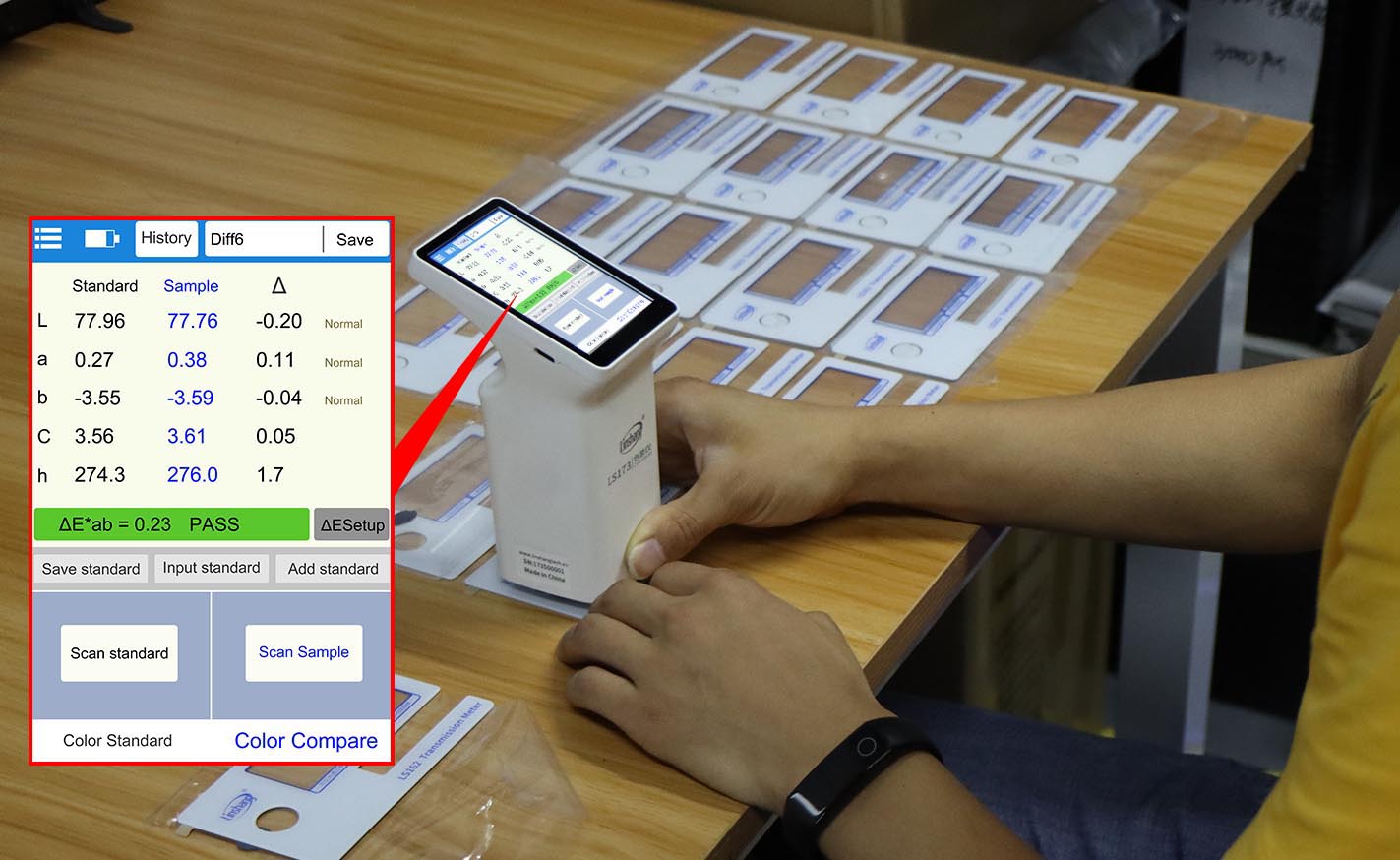

Color comparison
Digital colorimeter

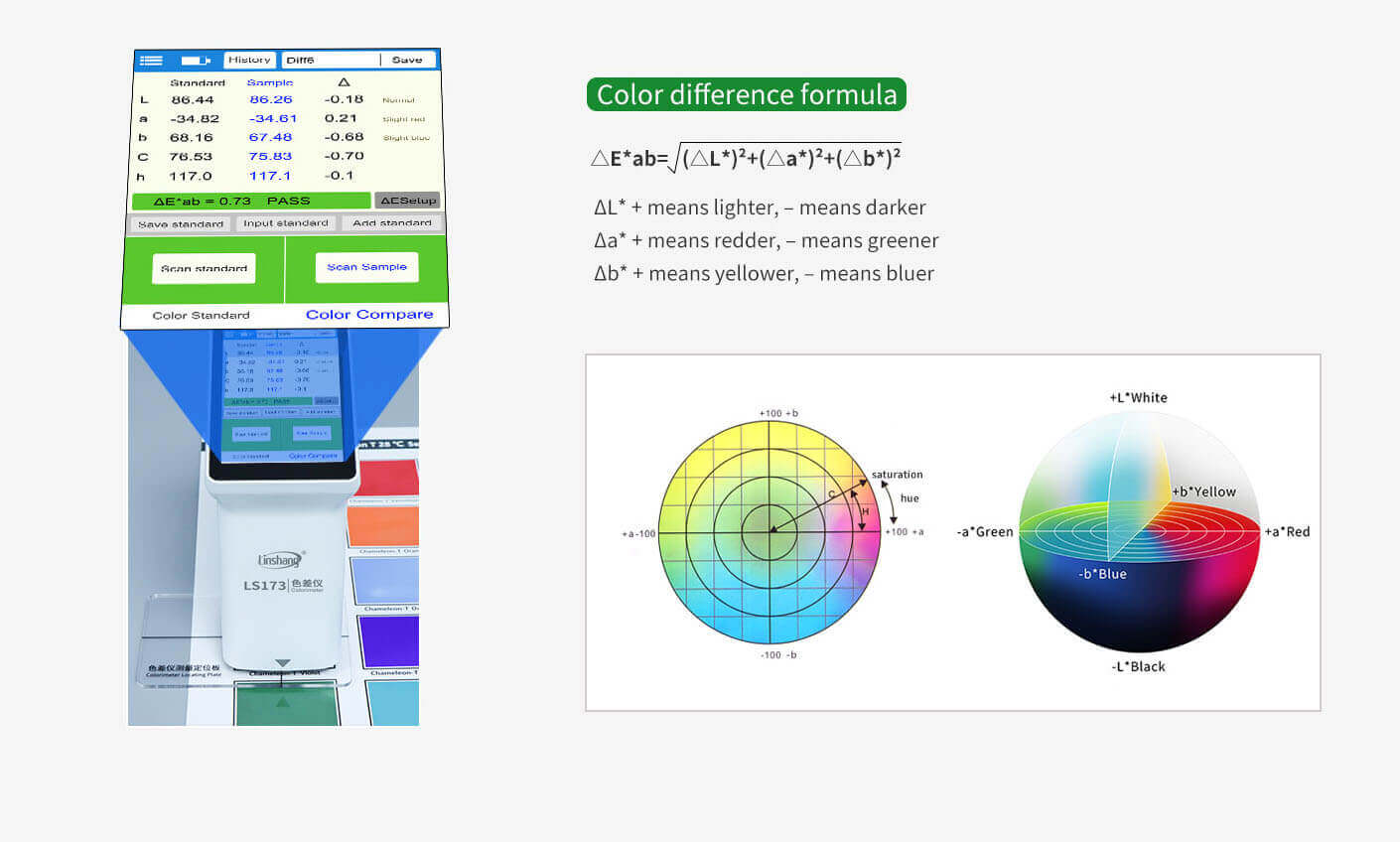

3. Lab values, making color adjustment easier

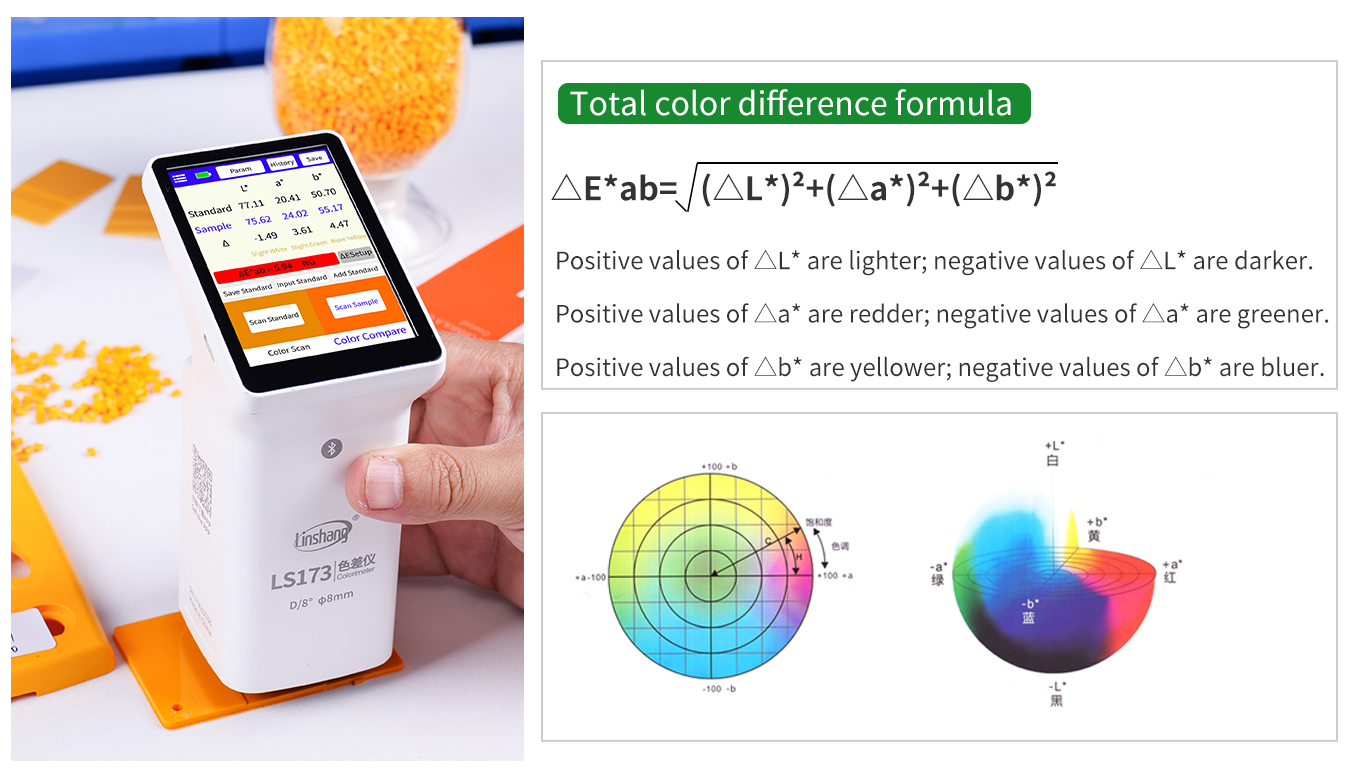

Provide the color deviation indicator of the three color channels of Lab and provides assistance for color adjustment.

4. Good repeatability, accurate and stable measurement data

Good repeatability, standard deviation △E*ab, within 0.03 (measurement conditions: after warm-up correction, the average value of 30 measurements on the whiteboard at an interval of 3s) to ensure that it can pass the inspection of China Institute of Metrology.

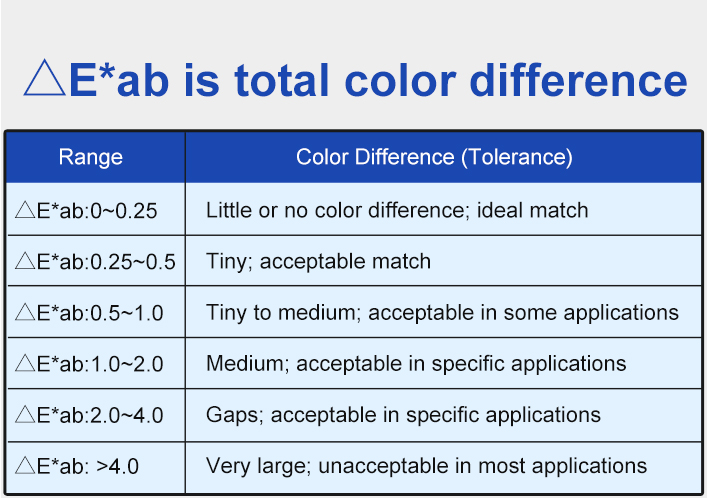

5. Seven color spaces and six color difference formulas, highly matching industry needs

The color analyzer has a variety of color spaces such as Lab\RGB\CMYK and a variety of color difference formulas to choose from, matching the color measurement needs of various industries.

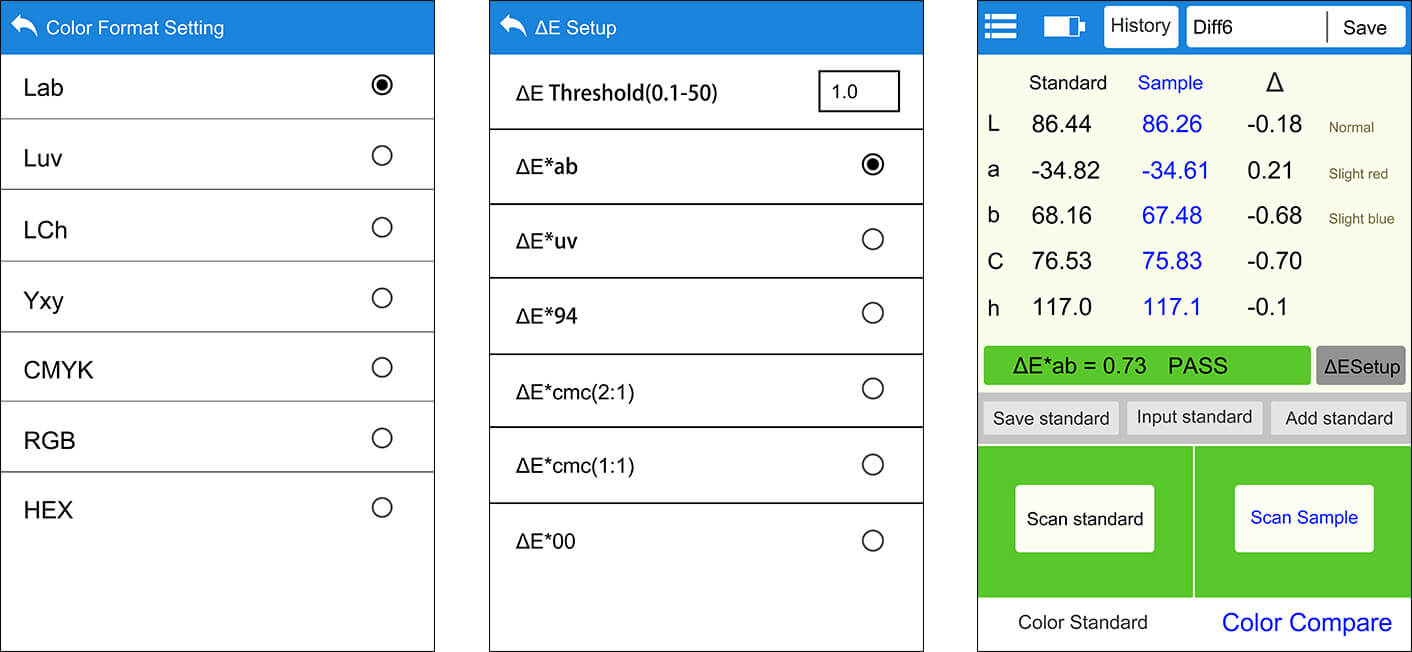

color format and color difference formulas
color format and color difference formulas

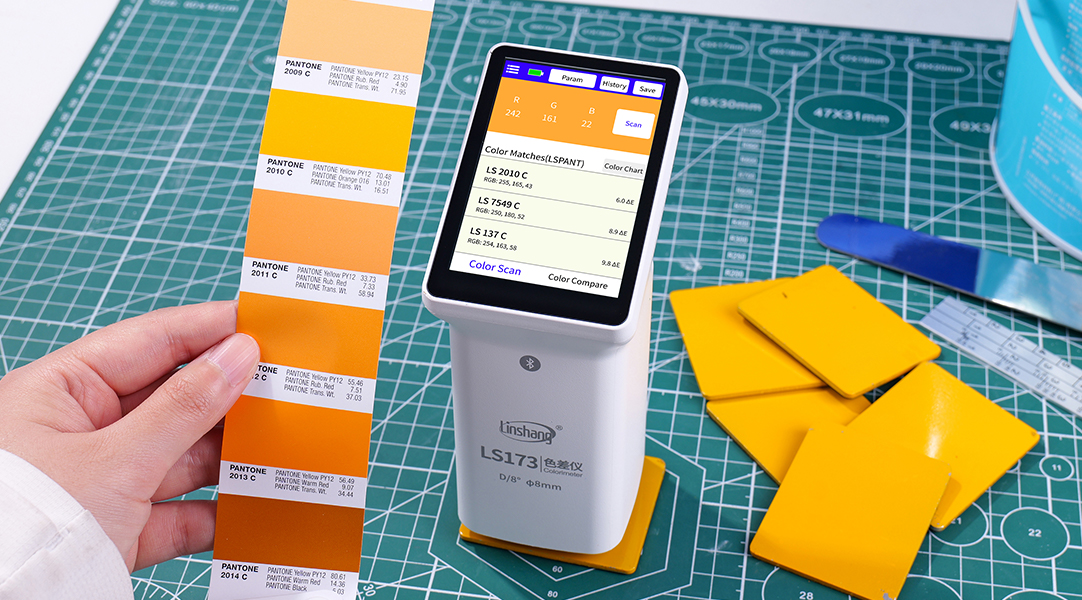

6. Built-in multiple electronic color charts

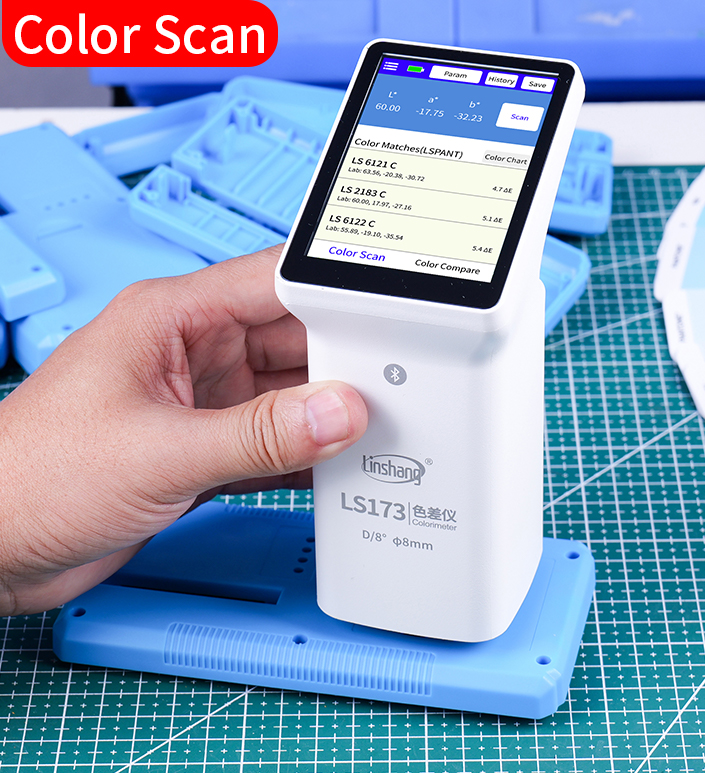

Built-in multiple standard electronic color charts, which can quickly match the 3 closest color codes, with an accuracy rate of over 90%.

color charts
color charts

7. The body is small and portable

Small and portable, easy to store and carry; stable body, ergonomic design, more stable measurement data.

handheld color meter
handheld color meter

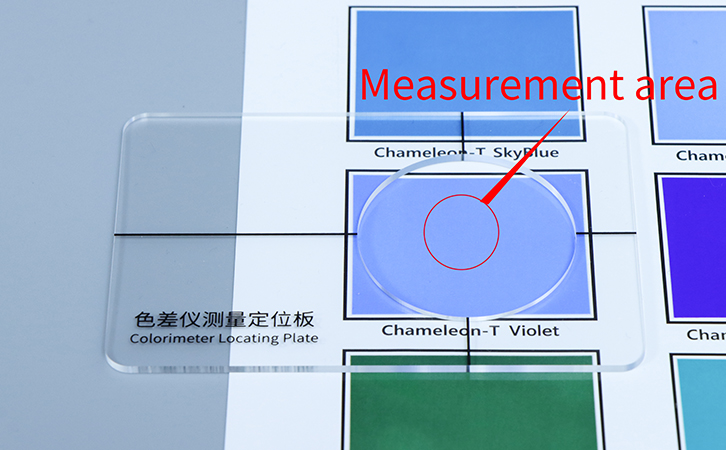

8. Measuring locating plate to make  measurement more accurate

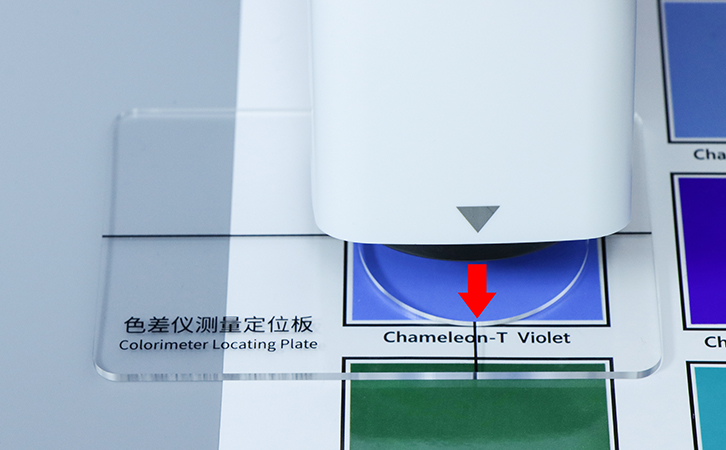

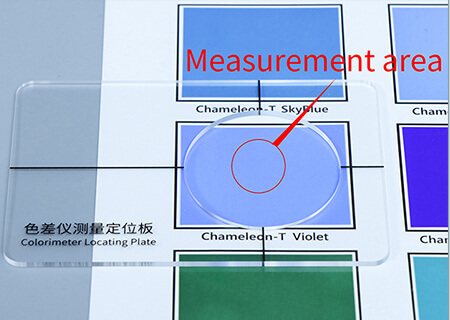

The color difference meter is equipped with a measurement locating plate to meet the needs of precise alignment and make the measurement more accurate.

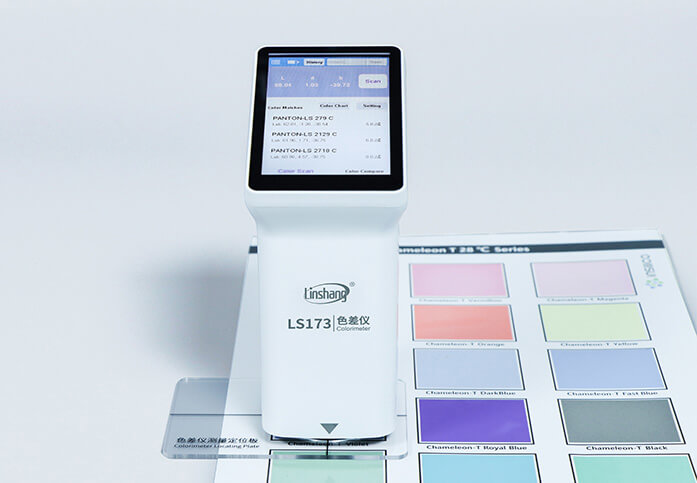

colorimeter with locating plate
white calibration board
white calibration board

9. Large storage space

The color analyzer has built-in large storage space, which can store 1000 colors and 1000 color difference comparison records respectively. Perfectly solve the consistency problem caused by the fading of the standard product after long-term storage.

10. Compensation optical path technology

The instrument has a built-in compensation optical path with stable values and allows long-period calibration.

11. Whiteboard calibration, simple operation

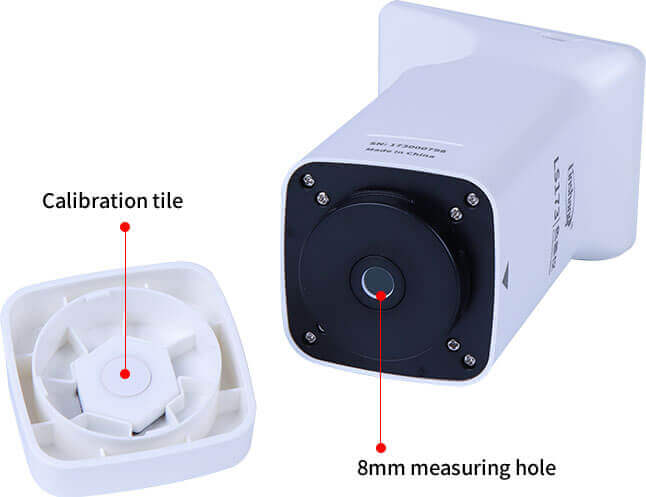

The bottom cover integrates a calibration whiteboard, so there is no need to worry about losing it. No need for tedious operations.

12. Energy saving,  low power consumption

Built-in lithium battery, fully charged, can test 10,000 times continuously. The default automatic off time can be set.

V.Product Qualifications and Standards

LS173 handheld colorimeter meets the following standards:

GBT 3978-2008 standard lighting body and geometric conditions

GBT 3979-2008 Method for measuring object color

GBT 7921-2008 Uniform color space and color difference formula

GBT 11186.1-1989 Coating Film Color Measurement Method Part 1: Principle

GBT 11186.2-1989 Coating Film Color Measurement Method Part 2: Color Measurement

GBT 11186.3-1989 Method for Measuring the Color of Coating Film Part 3 Calculation of Color Difference

JJG 595-2002 Verification Regulations for Color Measuring Colorimeter

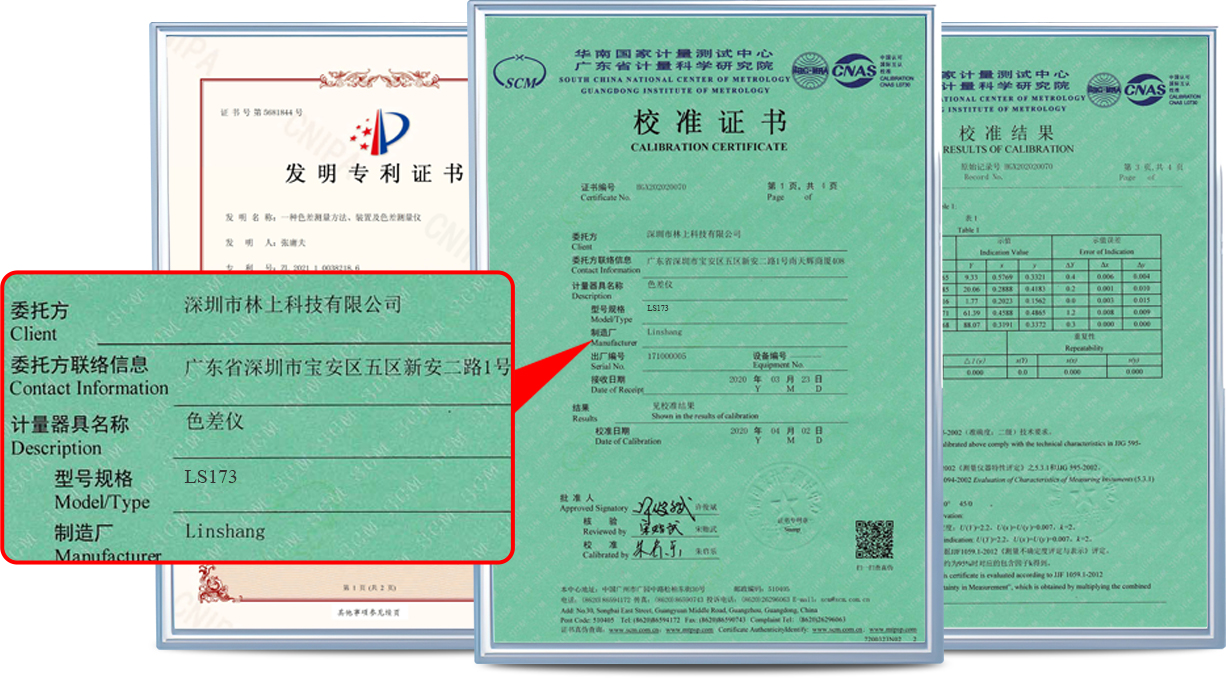

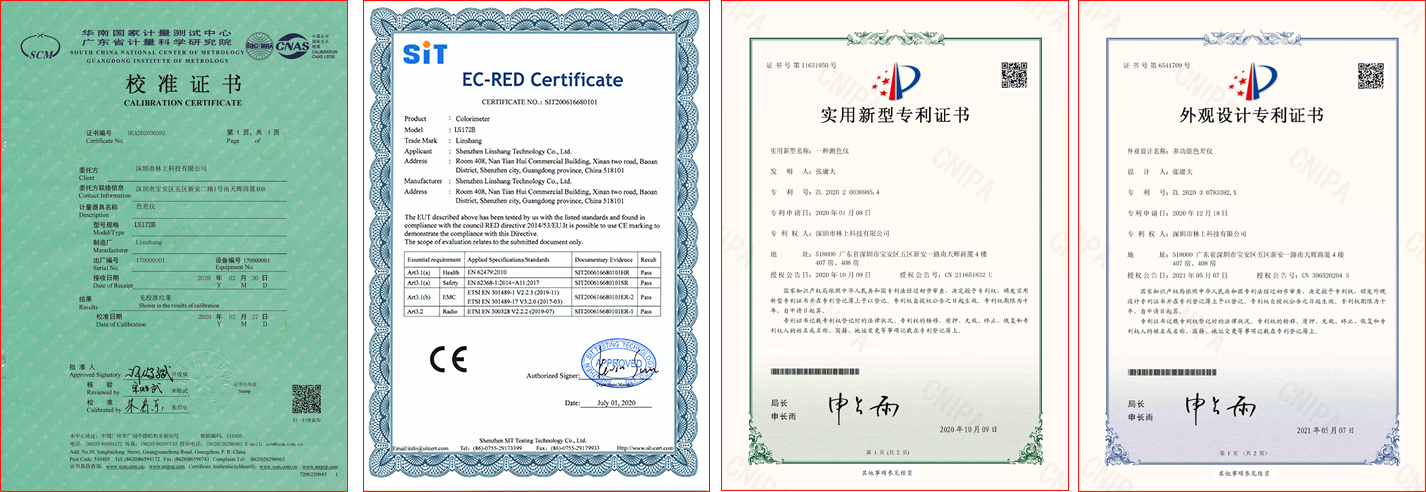

calibration report
calibration report

VI. Operation

1. operation video

2. precautions

  • When the colorimeter has not been used for a long time, it is recommended to perform calibration before using.

  • Please ensure that the sample is evenly colored with a flat and clean surface, otherwise it will affect the measurement accuracy.

  • After the base is removed from the host, it should be stored in a clean place to avoid contamination of the standard tile.

  • Do not insert any object inside the colorimeter to clean it, as this will damage it and affect measurement accuracy and operational safety.

  • Charge the colorimeter in time when the battery is out of power.

  • If not in use over 6 months, charge it regularly to prevent the battery from over-discharge and damage.

  • It's recommended to calibrate the instrument once each year. And we offer calibration service.

  • Due to different mobile phone displays, there may be a slight color difference between the actual color and the color displayed on the mobile phone App.

VII. Packing List

No. Description Quantity Unit
1 Colorimeter 1 Set
2 USB cable 1 pcs
3 Cleaning cloth 1 pcs
4 Locating plate 1 pcs
5 User manual 1 pcs
6 Certificate / Warranty card 1 pcs

VIII. After sales service

1. The colorimeter has one-year warranty. If the meter works abnormally, please send the whole colorimeter to our company for maintenance

2. Provide users with spare parts and lifelong maintenance services

3. Provide the users with the meter inspection service

4. Free technical support for long term
