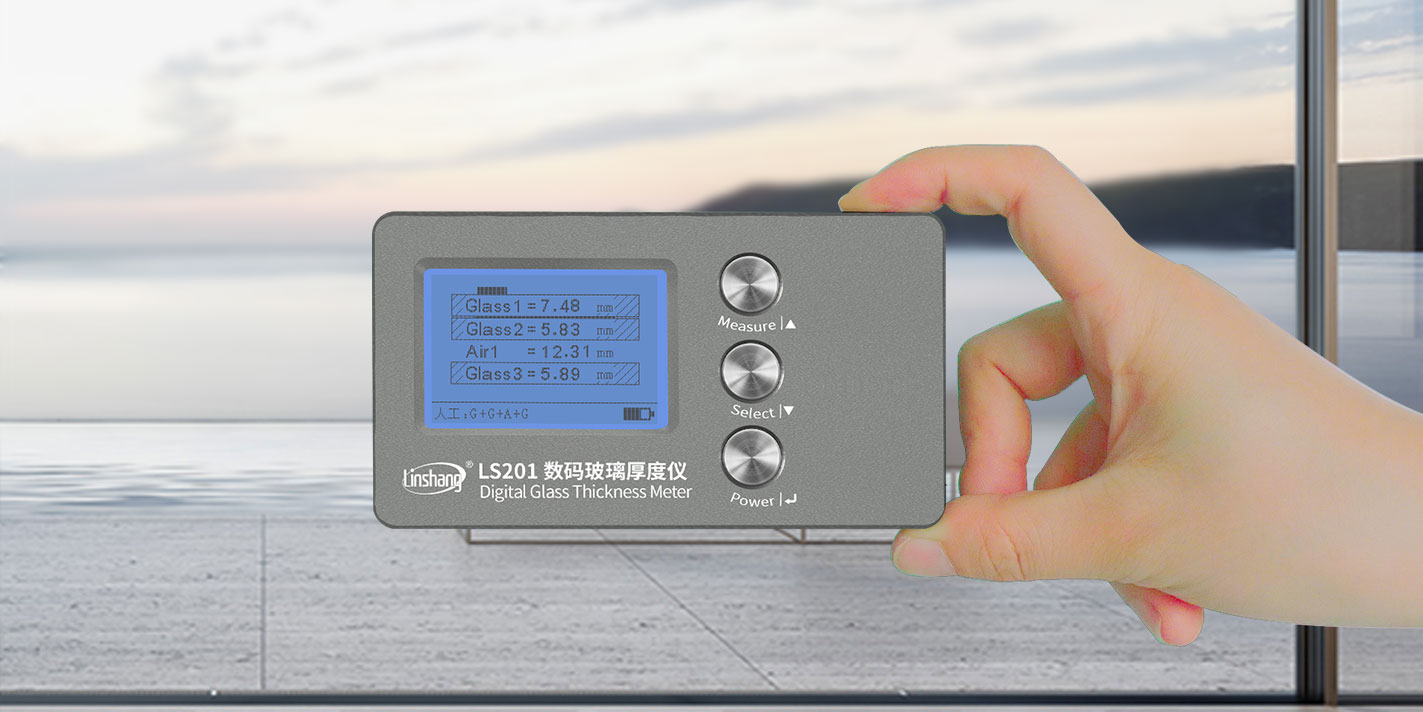

LS201 Digital Glass Thickness Meter
Measure Glass and Air Space
Glass Thickness Scale 70mm, Air Space Scale 45mm, Accuracy: ±0.1mm
Measure double glazing, triple glazing, etc
Introduction
Linshang LS201 digital glass thickness meter uses the optical reflection principle to measure the glass thickness on one side of the glass. It is especially suitable for the measurement where general measurement tools such as scales or vernier calipers that cannot or are not easy to operate. Such as the thickness measurement of laminated glass and hollow glass. For the measurement of laminated glass, the thickness of multilayer glass and intermediate air layer can also be measured at the same time. The instrument uses CCD detection, liquid crystal display. It also has simple operation, fast and reliable measurement.
Parameters
| Parameter | LS201 Digital Glass Thickness Meter |
|---|---|
| Measurement accuracy | ± 0.1mm |
| Measurement range | Glass thickness 70mm，air layer thickness 45mm |
| Weight | 330g |
| Battery | 4 AAA alkaline dry batteries |
| Display | 240 * 160 dot matrix LCD |
| Dimension | 130mm×72mm×33mm (L*W*H) |
Characteristics
1. The digital glass thickness meter can nondestructively test the glass thickness. With laser reflection principle, the glass thickness can be measured on single side of the glass.
2. The accuracy of the glass thickness meter can be 0.1mm.
3．The LS201 digital glass can measure triple glazing, laminated glass and other types of glass.
4．Automatic measurement mode and manual measurement mode can be switched, the instrument can accurately test the thickness of insulating glass of various specifications.
5. In manual mode, we can set the corresponding parameters according to the actual type of glass and get accurate data.
6. The Chinese and English display modes can be switched.
7. The instrument has high-definition large screen with backlight, the data can be read in dark environment.
Qualification
Operation Video
Packaging Details
| No. | Description | Quantity | Unit |
|---|---|---|---|
| 1 | LS201 Digital Glass Thickness Meter | 1 | pcs |
| 2 | User Manual | 1 | pcs |
| 3 | Certificate / warranty card | 1 | pcs |
| 4 | Cloth bag | 1 | pcs |
| 5 | AAA alkaline dry batteries | 4 | pcs |
| 6 | Packing box dimension 25*21*7 cm（L*W*H） | 1 | pcs |
After-Sales Service
The meter has one-year warranty. If the instrument works abnormally, please send the whole instrument to our company for maintenance
Provide users with spare parts and lifelong maintenance services
Provide the users with the meter inspection service
Free technical support for long term
Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: https://www.linshangtech.com/
Service hotline: 0755-86263411 Email: sales21@linshangtech.com
For more information about the Digital Glass Thickness Meter selection, please click article below for details
FAQ
-

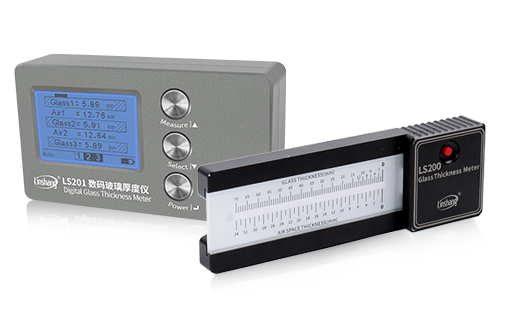

1. The difference between LS200 and LS201 glass thickness gauge
1) LS200 displays the measurement results through the scale. During the test, you need to press the measure button to manually read and calculate the thickness of the glass and air layer; LS201 displays the measurement results directly on the digital screen. Place the instrument close to the test notch of the instrument. Press the measure button, the thickness of the glass and air layer will be displayed directly on the screen, which is more convenient to use.
2) The test accuracy of LS200 is ±0.5mm, the test accuracy of LS201 is ±0.1mm. Test accuracy of LS201 is higher.
3) LS200 can only test insulating glass, LS201 can test laminated glass in addition to insulating glass, which has wider application.
-
2. The minimum glass size can be measured by LS200 and LS201 glass thickness gauge?
As long as the glass can cover the notch on the back of the glass thickness gauge, the glass can be measured.
The minimum size of the glass that LS200 can measure: 10mm*100mm, the minimum size of the glass that LS201 can measure: 5mm*50mm.
