I. LS108D Lens Transmission Meter Introduction

LS108D lens transmission meter is professionally used for mobile phone lens transmittance test and IR hole infrared transmittance test. The test aperture is 0.5mm, which can test 550nm visible light transmittance and 850nm, 940nm infrared ray transmittance. The lens transmission meter has a real-time dynamic self-calibration function. It will automatically calibrated to 100% transmittance after power-on. This lens transmission meter has a test aperture of only 0.5mm and has wide application.

The test principle of the lens transmission meter is that the light source illuminates the measured transparent material. The sensor detects the incident light intensity of the three light sources and the light intensity after passing through the measured transparent material. The ratio of the transmitted light intensity to the incident light intensity is the transmittance, expressed as a percentage.

lens transmission meter
lens transmission meter

II. LS108D Lens Transmission Meter Parameters

Measuring beam diameter ¢0.5mm (standard)
Infrared peak wavelength 850nm/940nm
Visible light peak wavelength 550nm
Resolution 0.1%
Measurement accuracy better than ±2% (colorless uniform transparent material)
Weight 1570g
Dimension 170mm × 180mm × 144mm (L*W*H)
Power supply 5V AC/DC power supply, also mobile power supply

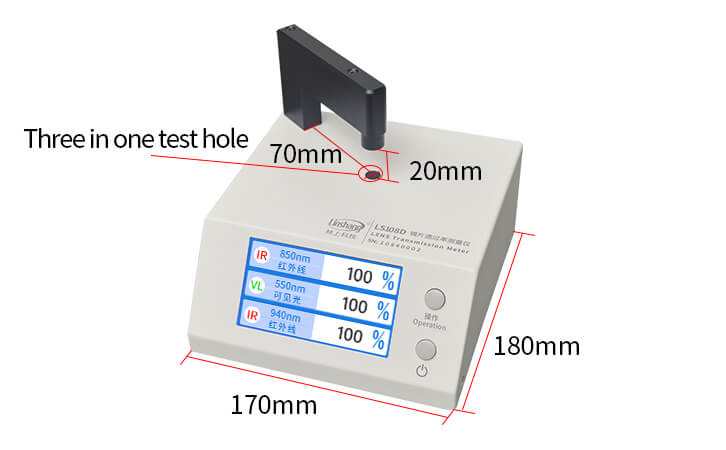

Lens transmission meter dimension

Lens transmission meter dimension

Lens transmission meter reverse view

Lens transmission meter reverse view

III. LS108D Lens Transmission Meter Features

1. The test aperture of this lens transmission meter is 0.5mm. Materials whose size are larger than 0.5mm can be measured.

LS108D lens transmission meter aperture display
LS108D lens transmission meter aperture display

2. The three light sources share a test hole. Three data can be obtained by measuring for just one time. Easy to operate and save time.

3. The test hole has an LED light for alignment, which is used to align the hole with the mobile phone lens during the test.

4. The transmission meter has real-time dynamic self-calibration function which can automatically calibrated to 100% transmittance after starting.

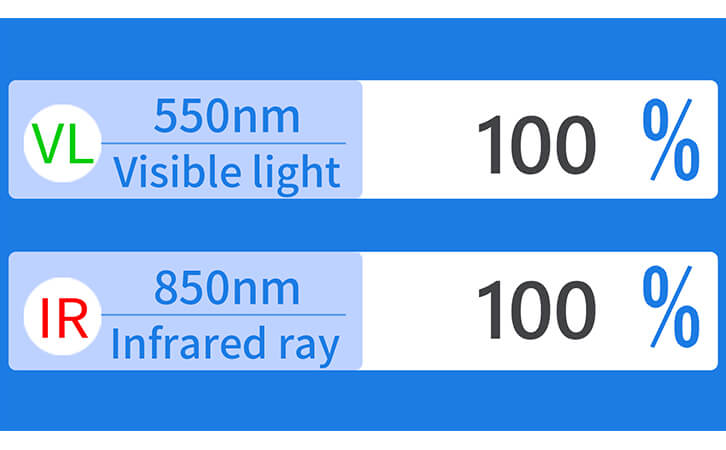

LS108D lens transmission meter real-time calibration
LS108D lens transmission meter real-time calibration

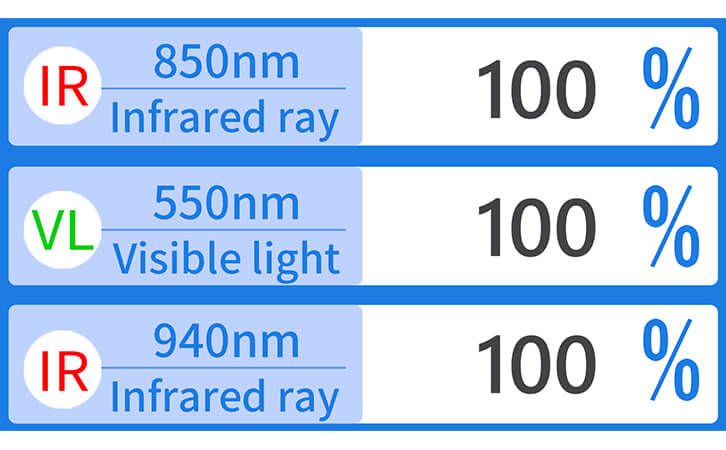

5. Large liquid crystal display, 3 kinds of display interfaces are available for selection. Both 850nm and 940nm infrared ray transmittance can be selected to display or only one of them.

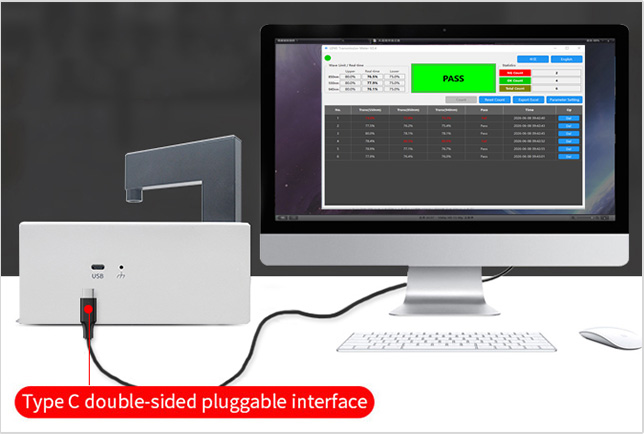

6. The meter has a Type C double-sided pluggable USB interface and free computer software is provided to complete the testing quantity, qualified and unqualified judgment during the production testing process. For details, please refer to the software and user manual in the attached U disk.

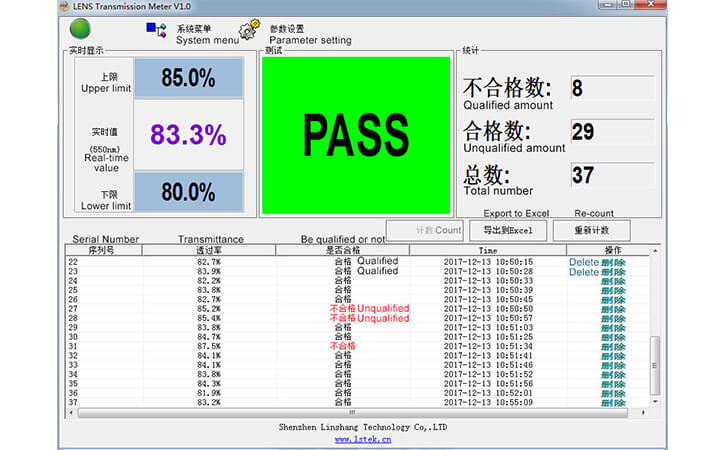

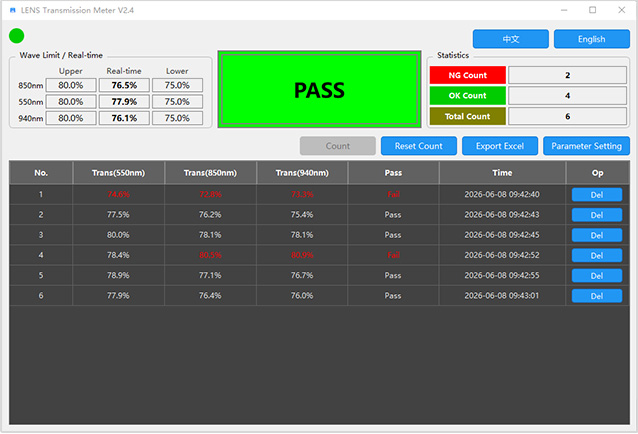

LS108D lens transmission meter PC software interface
LS108D lens transmission meter PC software interface

IV. LS108D Lens Transmission Meter Qualification

spectrum transmission meter CE certificate

spectrum transmission meter CE certificate

transmission meter utility model patents

transmission meter utility model patents

V. LS108D Lens Transmission Meter Operation

lens transmission meter software operation

lens transmission meter operation

VI. LS108D Lens Transmission Meter Packaging Details

No. Description Quantity Unit
1 LS108D lens transmission meter 1 pcs
2 DC5V Adapter 1 pcs
3 User Manual 1 pcs
4 Certificate / warranty card 1 pcs
5 USB flash disk with PC software 1 pcs
6 USB extension cable 1 pcs
7 Packing box dimension 231*241*161cm(L*W*H) 1 pcs
Packing box of 108D infrared ink tester
Packing box of 108D infrared ink tester

VII. LS108D Lens Transmission Meter After-Sales Service

  1. The meter has one-year warranty. If the instrument works abnormally, please send the whole instrument to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term

Manufacturer: Shenzhen Linshang Technology Co.,Ltd. Website: https://www.linshangtech.com/

Service hotline: 0755-86263411 Email: sales21@linshangtech.com

For more information about the Lens Transmission Meter selection, please click article below for details

Light Transmission Meter Selection and FAQ.

VIII. FAQ about LS108D Lens Transmission Meter

  1. 1. The difference between LS108A and LS108D

     The only difference is the detector hole diameter. The detector hole diameter of LS108A is 1mm, while the detector hole
    diameter of LS108D is 0.5mm. Since the detector hole diameter of LS108D lens transmission meter is smaller, so it is more
