LS172 45°/0 Colorimeter with Touch Screen

Touch screen control, no button setting required
Built-in multiple electronic color charts
Color difference comparison, QC testing

Request A Quote Buy Now

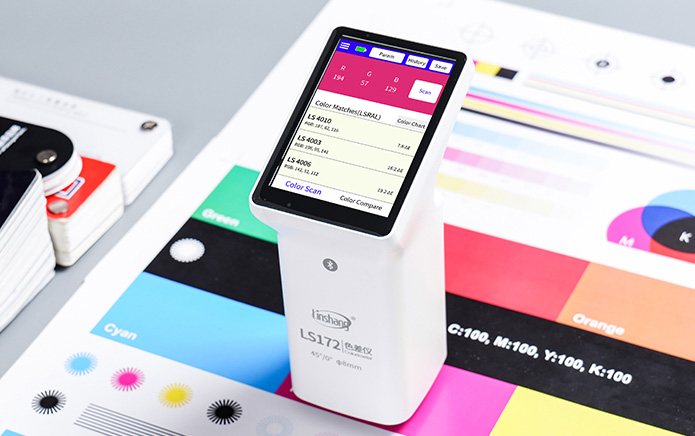

LS172 is a handheld multifunctional colorimeter designed with a 45°/0° optical geometric structure. It uses a 3.5-inch IPS color screen and a capacitive touch screen to provide an excellent operating experience. The color analyzer integrates multiple color charts, which can quickly match the three closest color codes. At the same time, it has a color difference comparison function, support multiple standard color addition methods, color difference thresholds can be set, color difference formulas can be flexibly selected. QC testing can be achieved.

Colorimeter Application

LS172 color analyzer is designed with a 45°/0° optical geometric structure and has a wide range of applications. It is usually used in product color measurement and management, product color difference quality control in paint, paper printing, decorations, leather and cotton, textile printing, plastics and other industries.

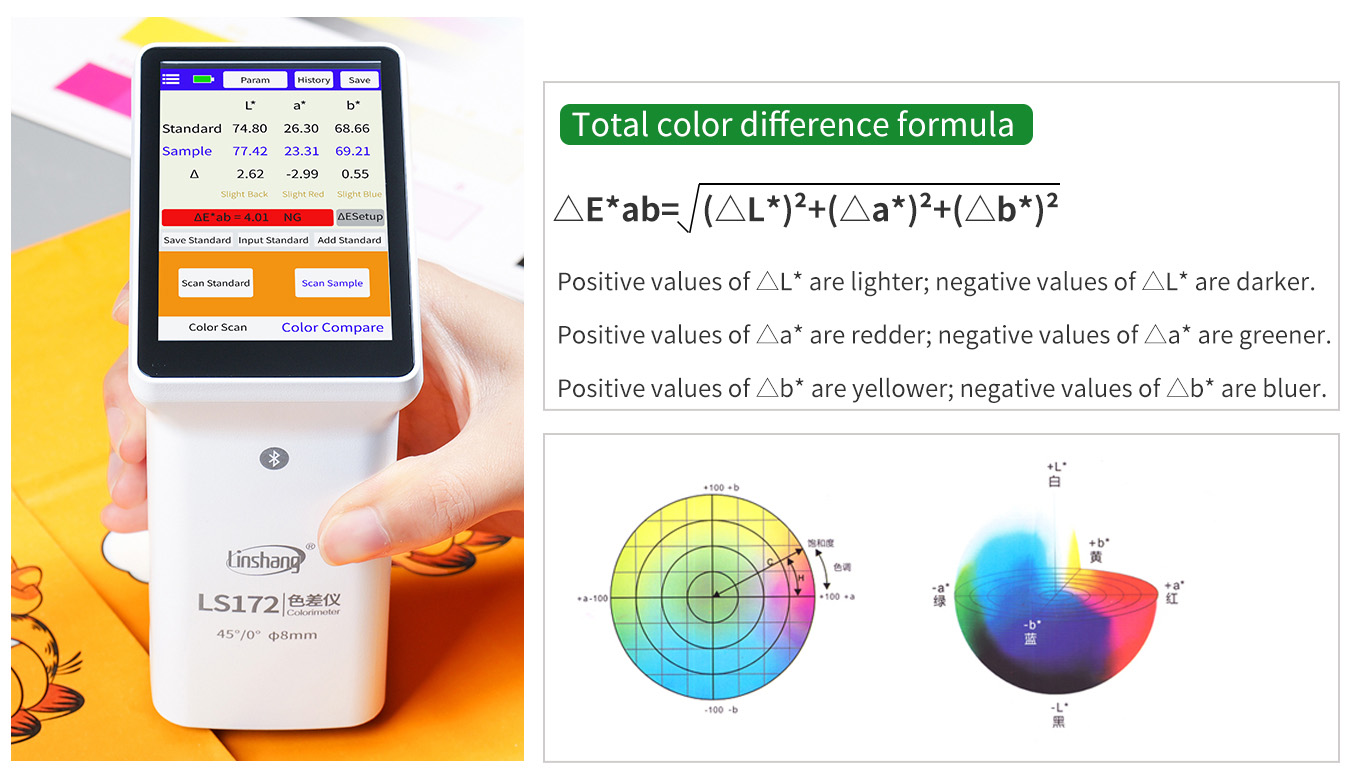

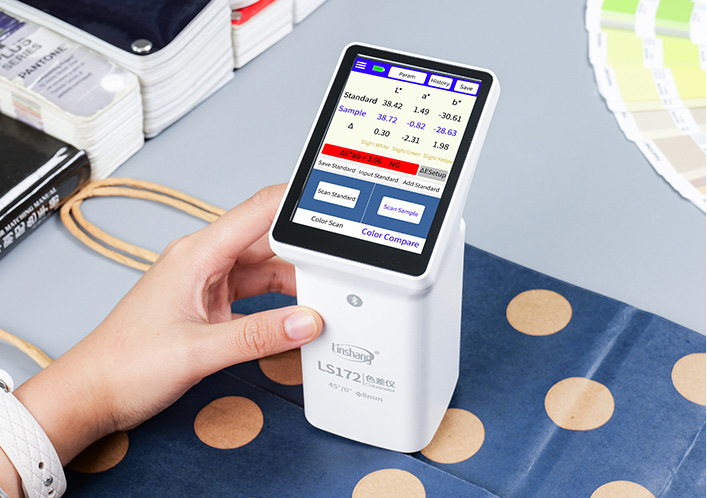

color difference comparison

color difference comparison

color difference meter measure leather

color difference meter measure leather

colorimeter test ink color difference

colorimeter test ink color difference

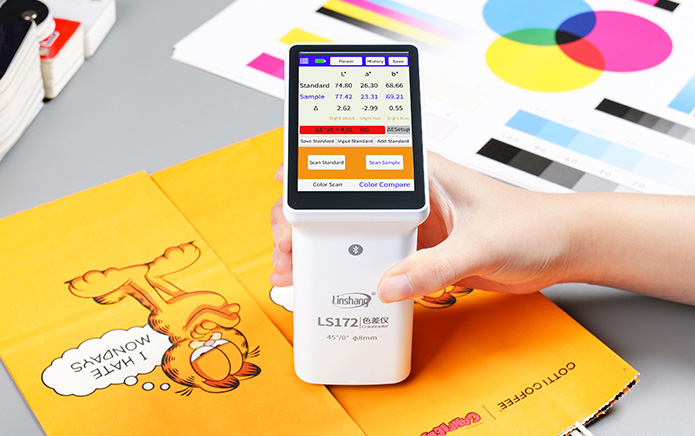

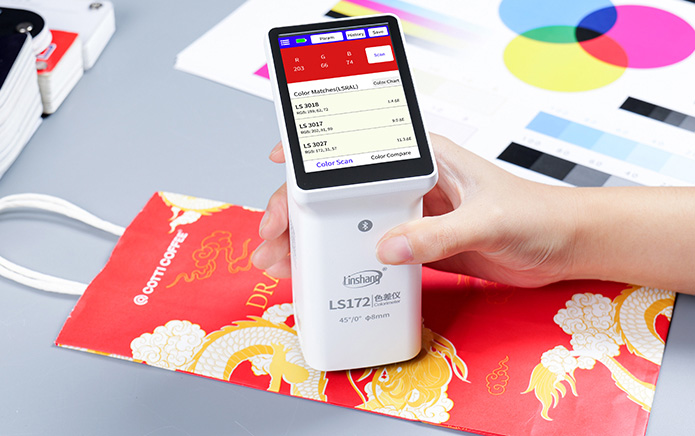

color analyzer measure printing paper

color analyzer measure printing paper

Parameters

Parameter Value
Illumination geometry 45/0 (45°annular illumination, 0° viewing angle)

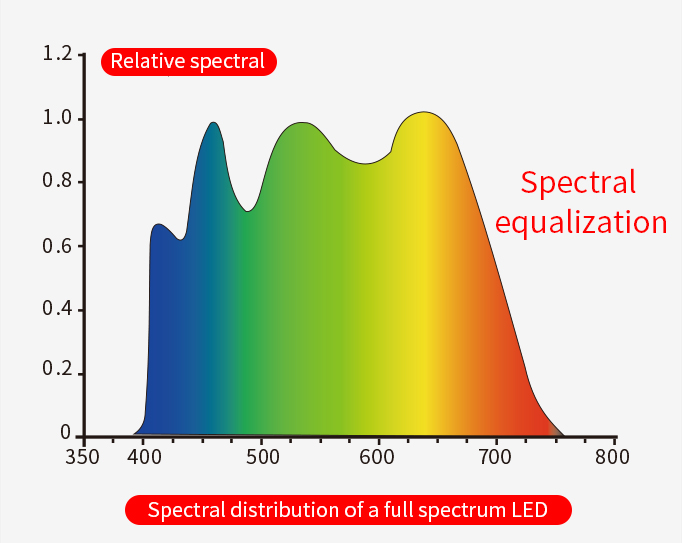

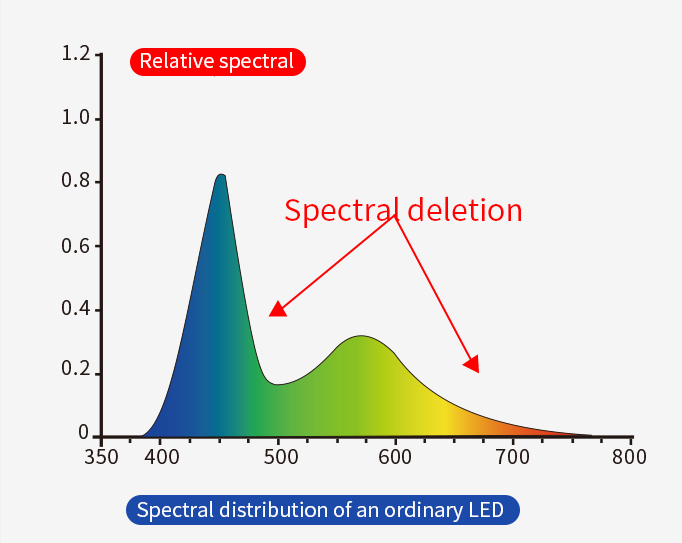

Illumination light source Full spectrum LED light source
Measuring aperture 8mm
Measurement conditions Light source D65, field of view 10°
Measuring time About 1s
Color space CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex

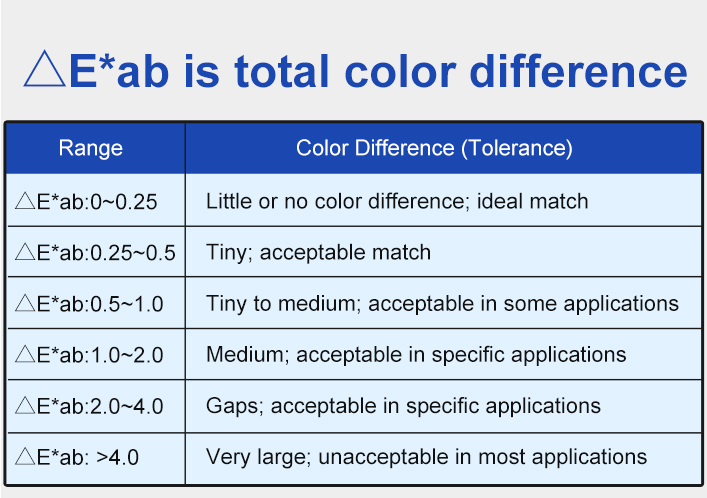

Color difference formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1),ΔE*cmc(1:1), ΔE*00
Repeatability Standard deviation ΔE*ab is within 0.03
(Measurement condition: the average value of30 measurements on the whiteboard at aninterval of 3s after calibration)

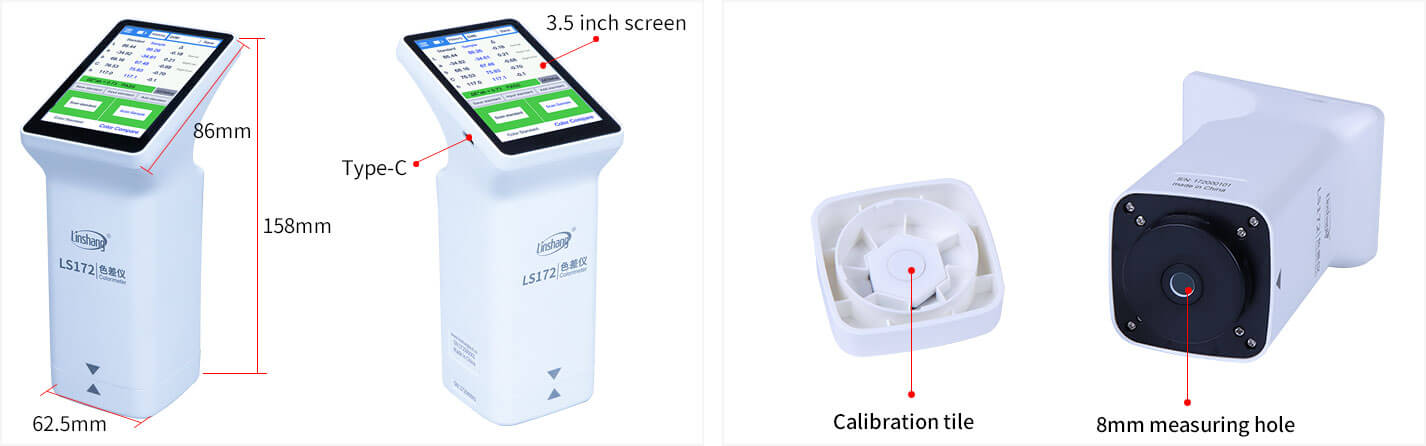

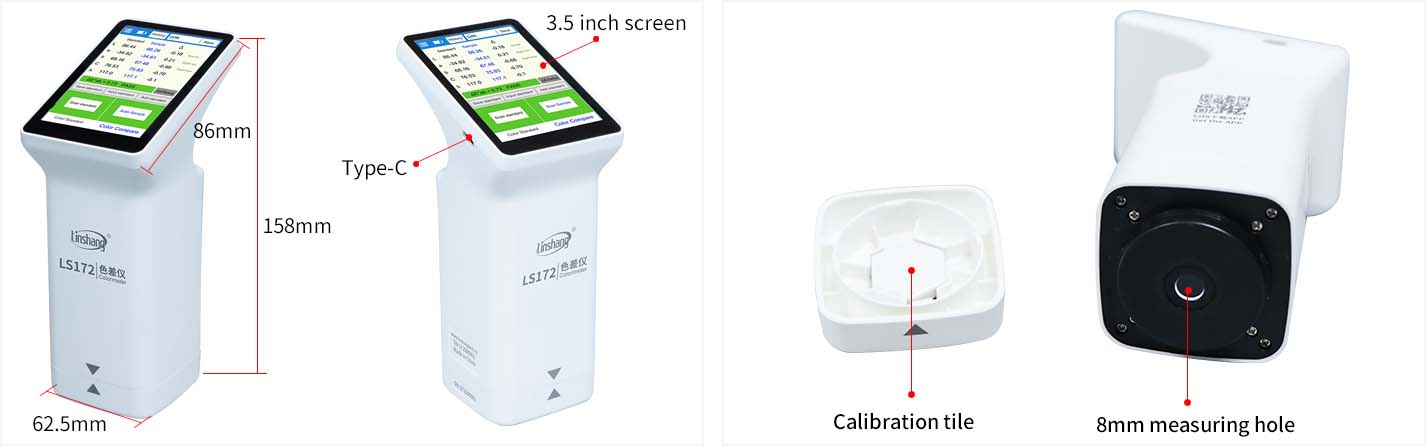

Dimension 86mm×62.5mm×158mm
Weight About 225g
Power supply Rechargeable lithium battery3.7V@4000mAh, can measure 10,000 timescontinuously under full charge
Display 480×320 dot matrix IPS color screen
Language Simplified Chinese, English
Charging port USB (Type-C)
Data transmission USB
Operating temperature range 0~45℃, 0~85%RH (no condensation)
Storage temperature range -25~55℃, 0~85%RH (no condensation)

Features

1. Touch screen control, perfect viewing angle

The instrument uses a 3.5-inch IPS color capacitive touch screen, no button settings are required; the screen is tilted at 20 degrees and has a perfect viewing angle, which has a good user experience and human-computer interaction interface.

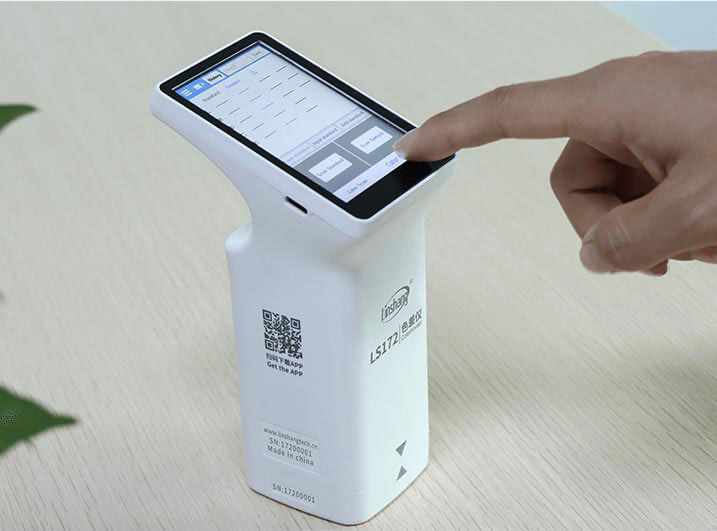

big touch screen
big touch screen

2. Portable color analyzer, easy to carry

Small and portable, easy to store and carry; stable body, ergonomic design, more stable measurement data.

handheld color difference meter
handheld color difference meter

3. Refusing to be burdensome and simple to choose

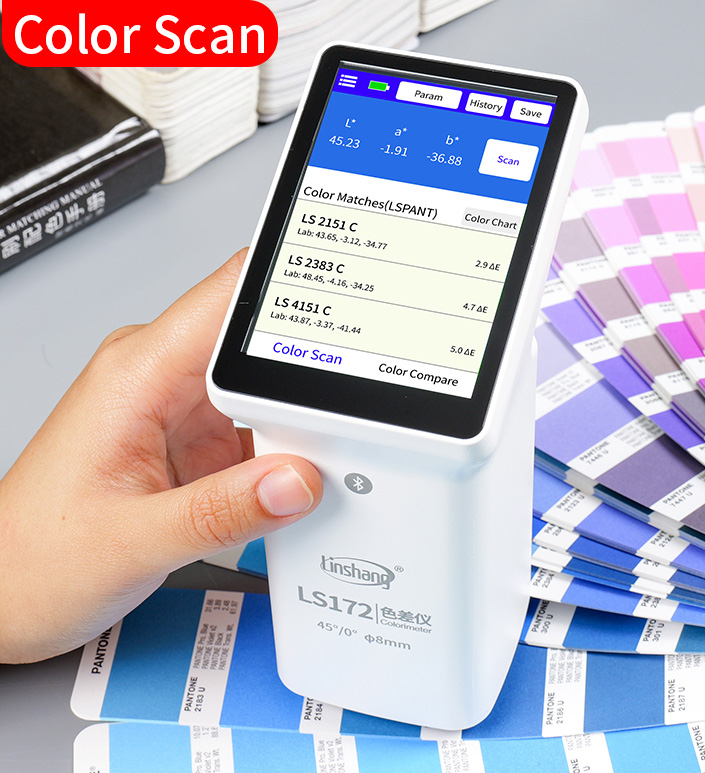

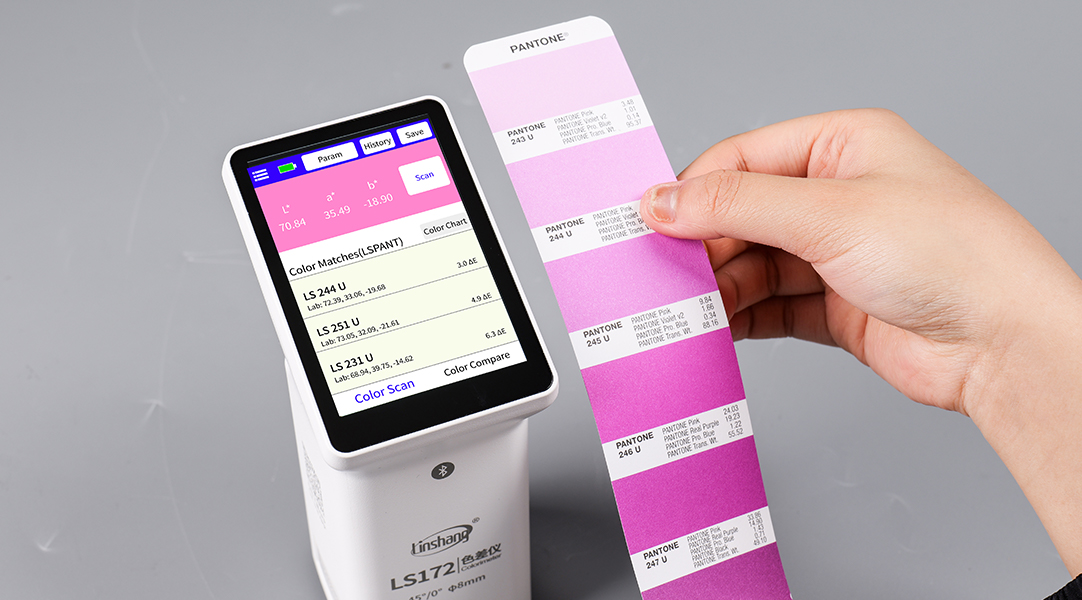

Built-in multiple electronic color charts, quickly matching the closest 3 color codes, the accuracy rate is as high as 90%.

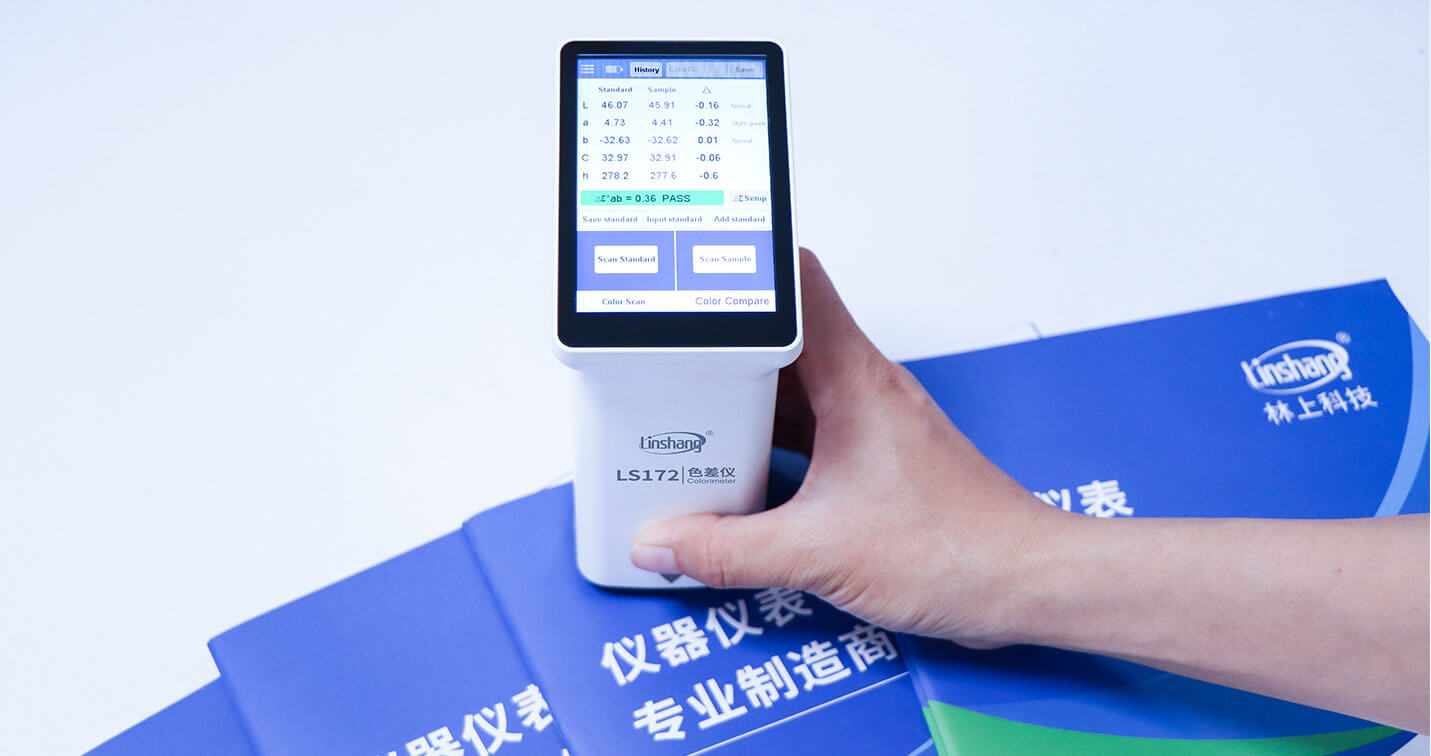

4. Color measurement and color difference comparison

Reject complex operations and make the measurement simpler. The color difference meter can be used in 5 seconds to get started. Color measurement can be achieved by touching the screen button or pressing the power button. The color values can be quickly measured in 1 second.

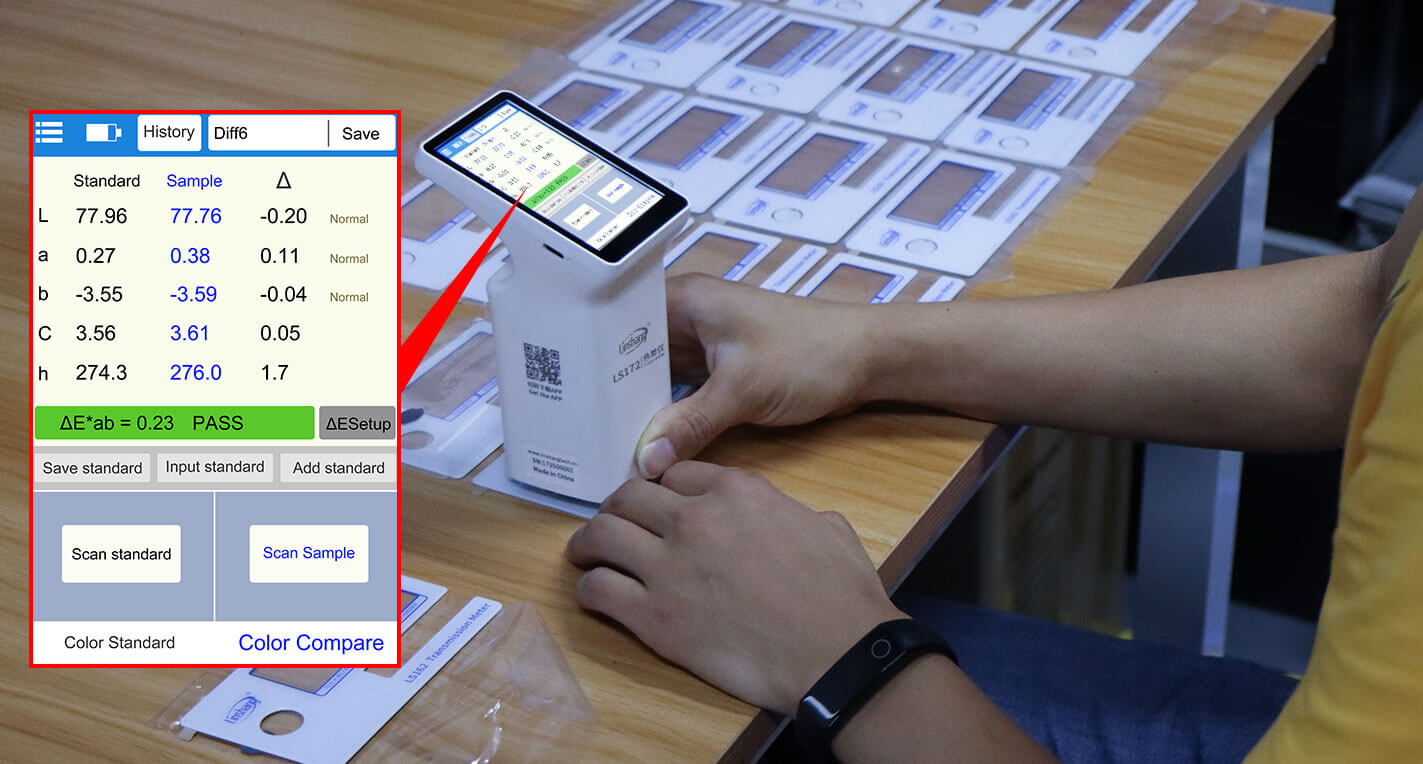

Two clicks can complete the color difference comparison, turn on the QC testing function, batch testing can be performed. The color difference threshold can be set to quickly achieve color quality control. And provide the color deviation indicator of Lab values, making color adjustment easier and more convenient.

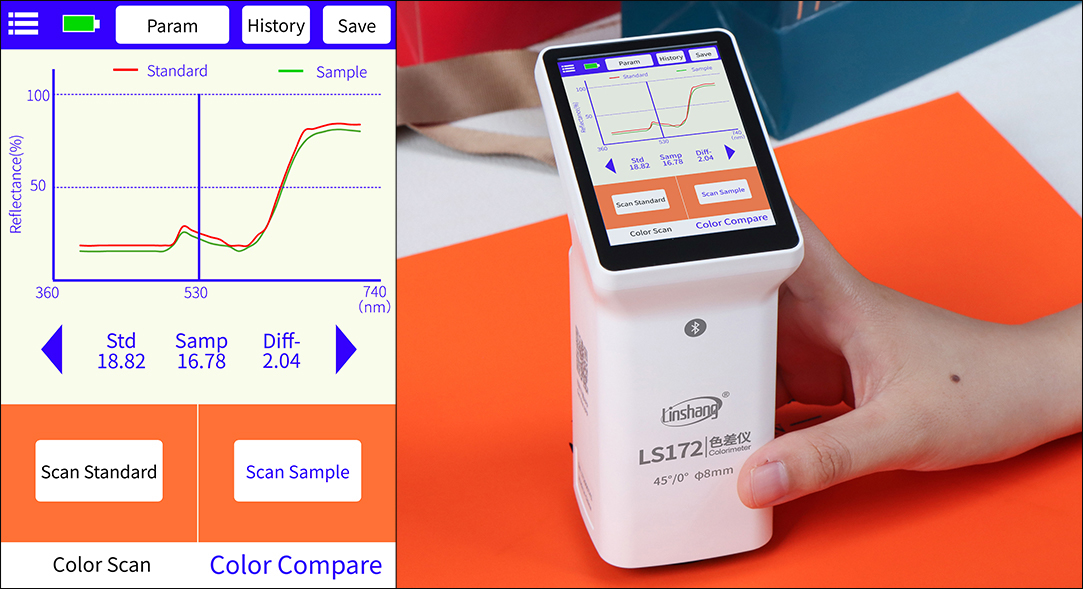

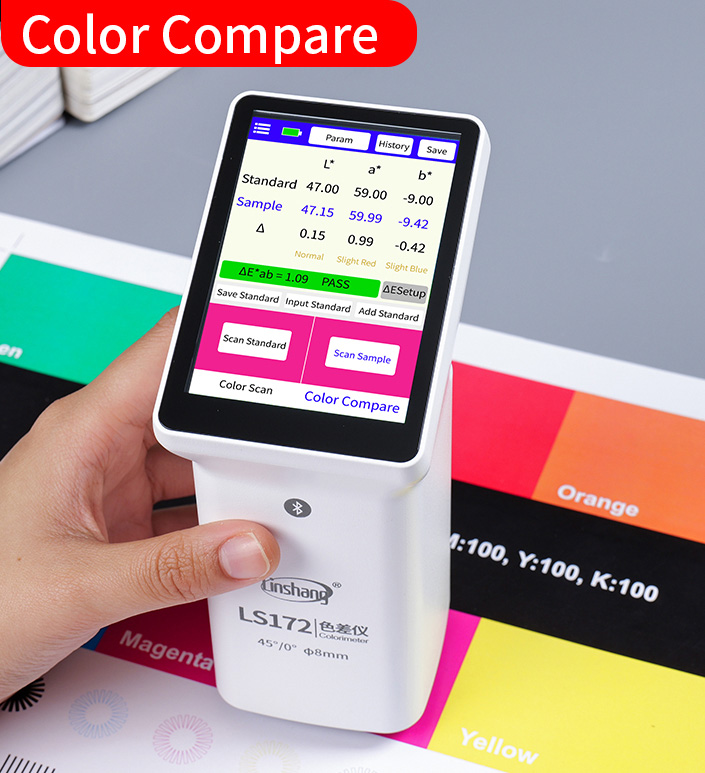

Color difference comparison
Color difference comparison

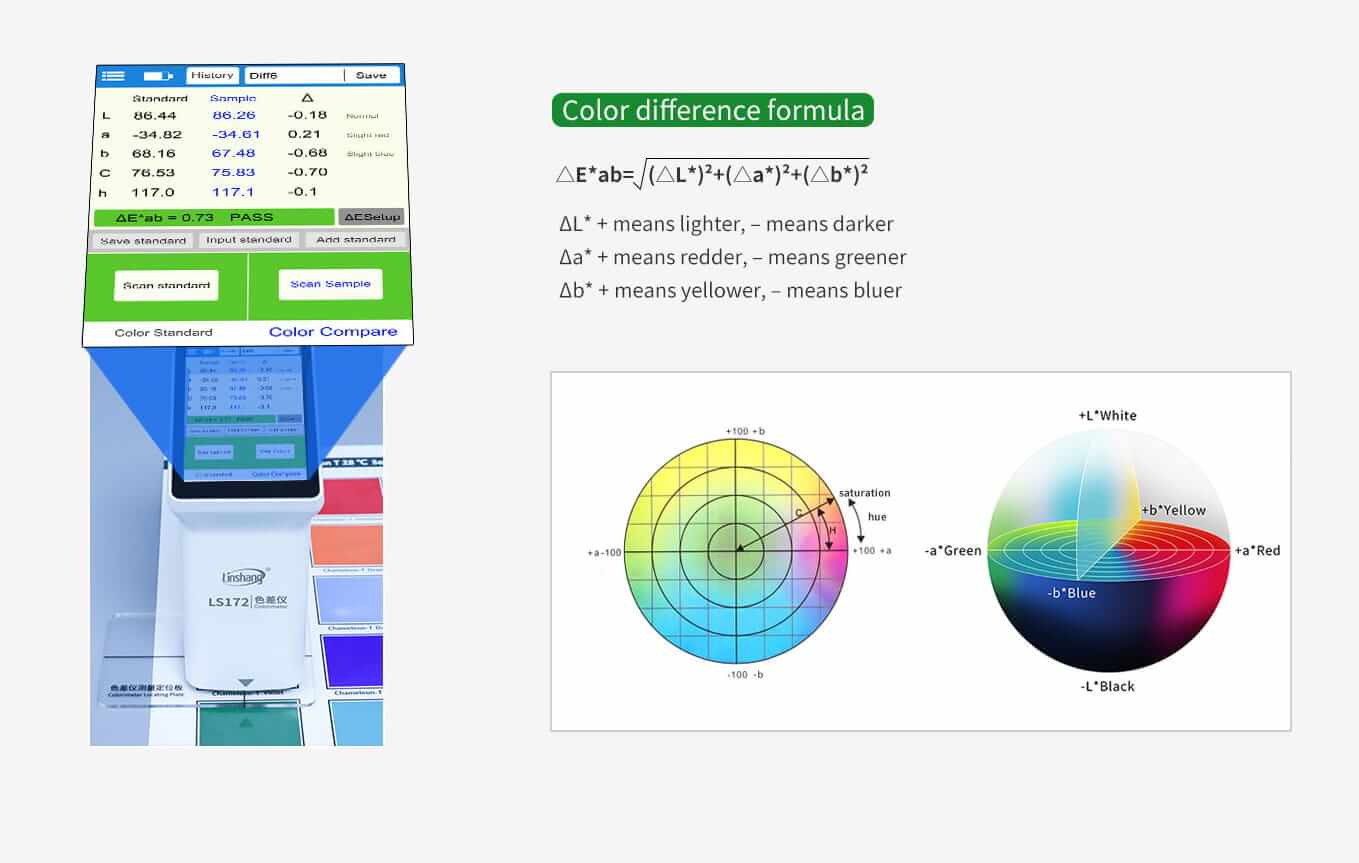

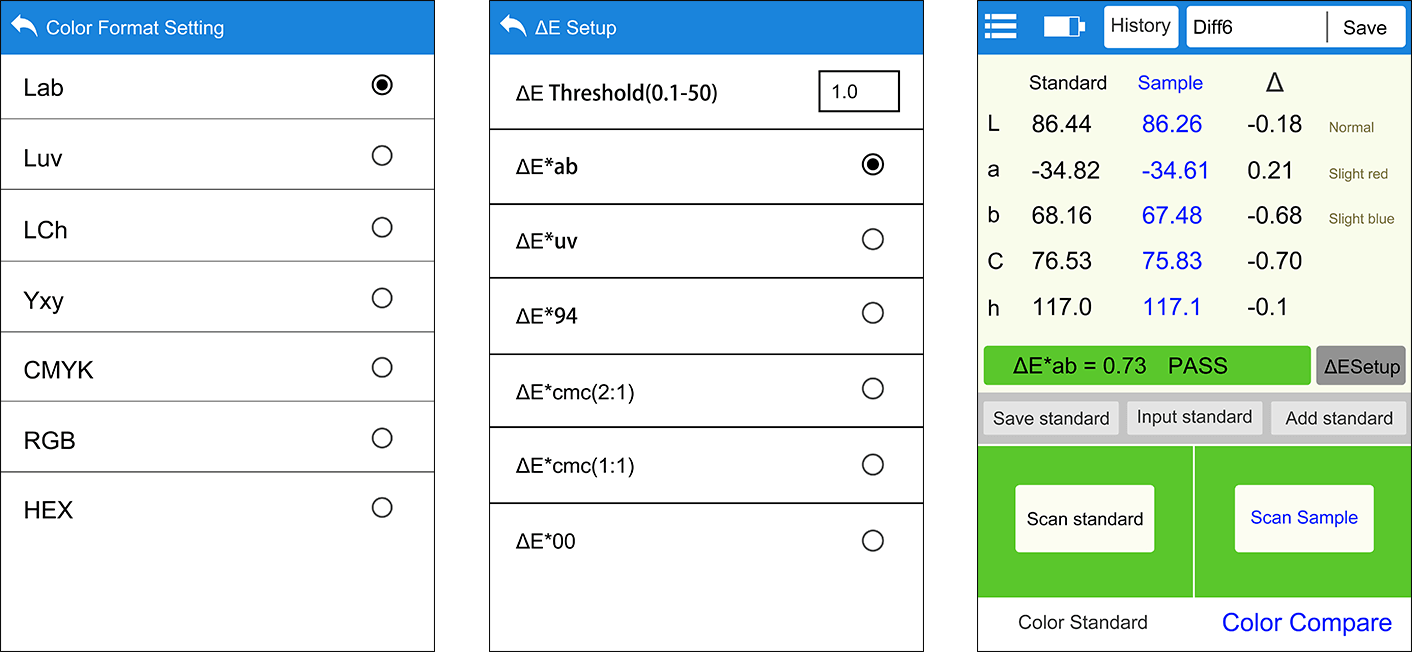

5. Seven color spaces and six color difference formulas

The color meter has a variety of color spaces such as Lab\RGB\CMYK and a variety of color difference formulas to choose from, matching the color measurement needs of various industries.

6. Large storage space

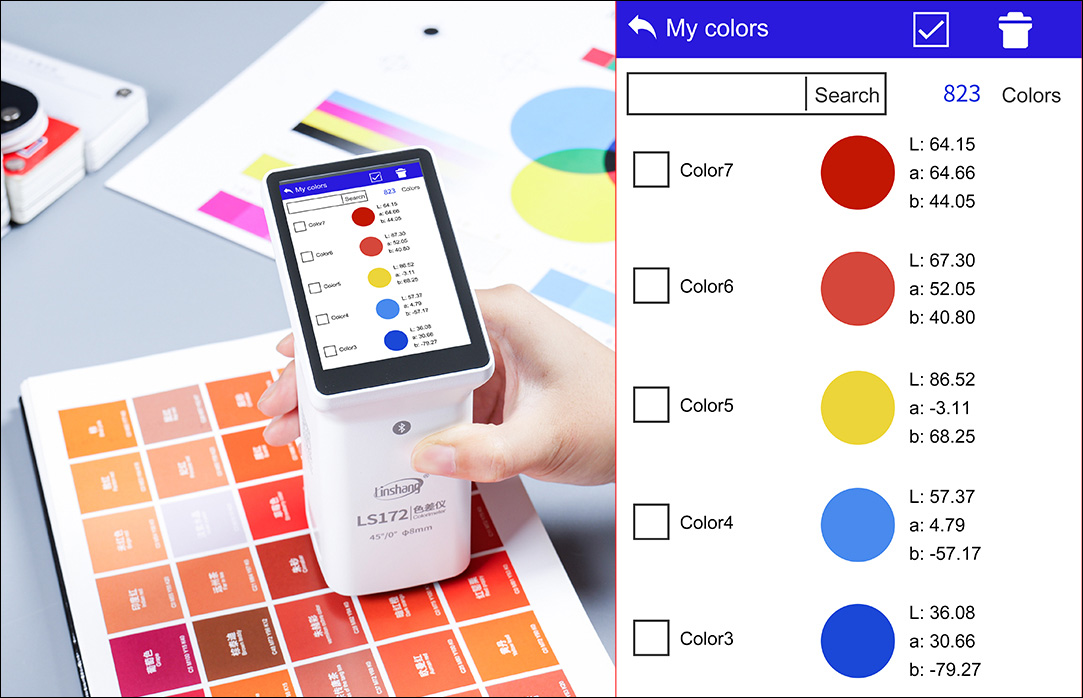

The instrument has built-in large storage space, which can store 1000 colors and 1000 color difference comparison records respectively.

7. Compensation optical path technology

The color difference meter has a built-in compensation optical path with stable values and allows long-period calibration.

8. Whiteboard calibration, simple operation

The bottom cap integrates a calibration whiteboard, so there is no need to worry about losing it. No need for tedious operations.

white board
white board

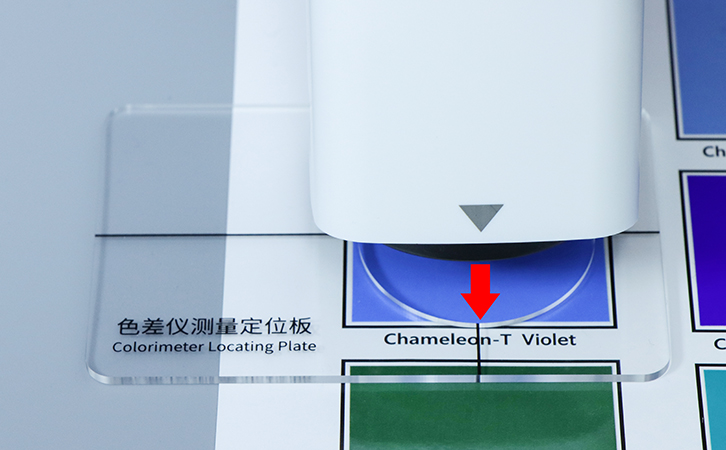

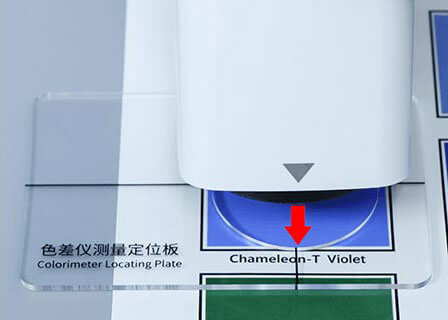

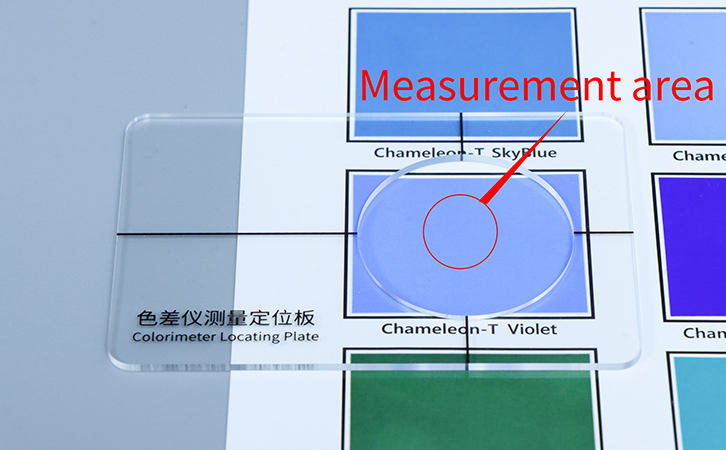

9. Locating plate makes color measurement more accurate

The color difference meter is equipped with a measurement locating plate to meet the needs of precise alignment and make the measurement more accurate.

locating plate
color meter with locating plate

10. Energy saving, low power consumption

Built-in lithium battery, can be used 10,000 times continuously under full charge. The default auto off time can be set.

Qualifications and Standards

  • LS172 handheld colorimeter meets the following standards:

  • GBT 3978-2008 standard lighting body and geometric conditions

  • GBT 3979-2008 Method for measuring object color

  • GBT 7921-2008 Uniform color space and color difference formula

  • GBT 11186.1-1989 Coating Film Color Measurement Method Part 1: Principle

  • GBT 11186.2-1989 Coating Film Color Measurement Method Part 2: Color Measurement

  • GBT 11186.3-1989 Method for Measuring the Color of Coating Film Part 3 Calculation of Color Difference

  • JJG 595-2002 Verification Regulations for Color Measuring Colorimeter

color difference meter calibration report
color difference meter calibration report
patent certificate
patent certificate

Operation

1. operation video

2. precautions

  • When the colorimeter has not been used for a long time, it is recommended to perform calibration before using.

  • Please ensure that the sample is evenly colored with a flat and clean surface, otherwise it will affect the measurement accuracy.

  • After the base is removed from the host, it should be stored in a clean place to avoid contamination of the standard tile.

  • Do not insert any object inside the colorimeter to clean it, as this will damage it and affect measurement accuracy and operational safety.

  • Charge the colorimeter in time when the battery is out of power.

  • If not in use over 6 months, charge it regularly to prevent the battery from over-discharge and damage.

  • It's recommended to calibrate the instrument once each year. And we offer calibration service.

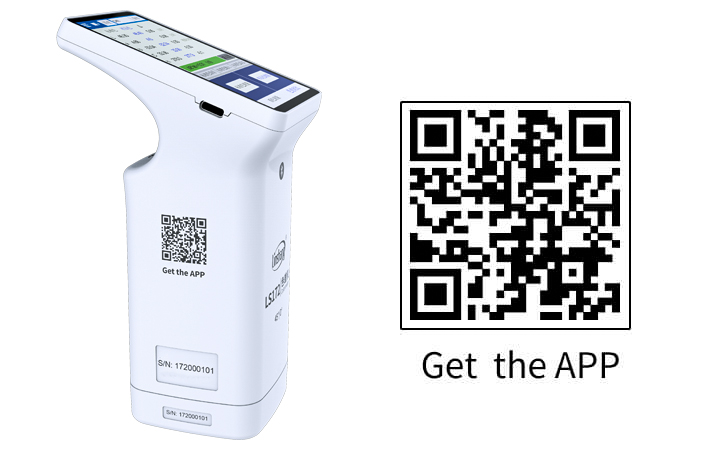

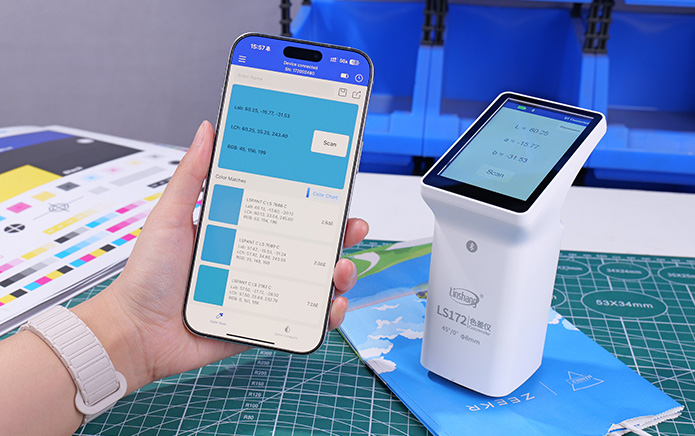

  • Due to different mobile phone displays, there may be a slight color difference between the actual color and the color displayed on the mobile phone App.

Packaging List

No. Description Quantity Unit
1 Colorimeter 1 Set
2 USB cable 1 pcs
3 Cleaning cloth 1 pcs
4 Locating plate 1 pcs
5 User manual 1 pcs
6 Certificate / Warranty card 1 pcs
colorimeter packing
colorimeter packing

After sales service

  1. The colorimeter has one-year warranty. If the meter works abnormally, please send the whole colorimeter to our company for maintenance

  2. Provide users with spare parts and lifelong maintenance services

  3. Provide the users with the meter inspection service

  4. Free technical support for long term
