What Is a UV Radiometer / UV Light Meter? Applications and Selection Guide

A UV radiometer, also known as a UV light meter, is a device used for UV light measurement, including both intensity and energy. It converts invisible UV radiation into clear, measurable data, making it easier to monitor and control UV output.

Unlike a standard light meter that measures visible light, a UV light radiometer is designed to measure ultraviolet radiation across different bands such as UVA, UVB, and UVC. This makes it an essential radiometer for UV light in many industrial and scientific applications.

A digital UV radiometer typically measures two key parameters:

• UV light intensity (irradiance), usually in mW/cm²

• UV energy (dose), usually in mJ/cm²

Depending on the application, units can also be displayed in μW/cm² or W/m² for more flexible UV light intensity measurement.

Measurement Principle: A UV radiometer (or UV light meter) uses a microcontroller-based data acquisition system to perform accurate UV light measurement. First, the UV detector converts incoming UV light into a weak electrical current. This analog signal is then converted into a digital signal by an ADC (Analog-to-Digital Converter). The microcontroller processes this digital signal and, through calibration algorithms, calculates the UV light intensity (irradiance). By integrating UV irradiance over time, the device also calculates the total UV energy (dose). In simple terms, the photodetector converts light into electrical current, and the instrument processes and displays the result.

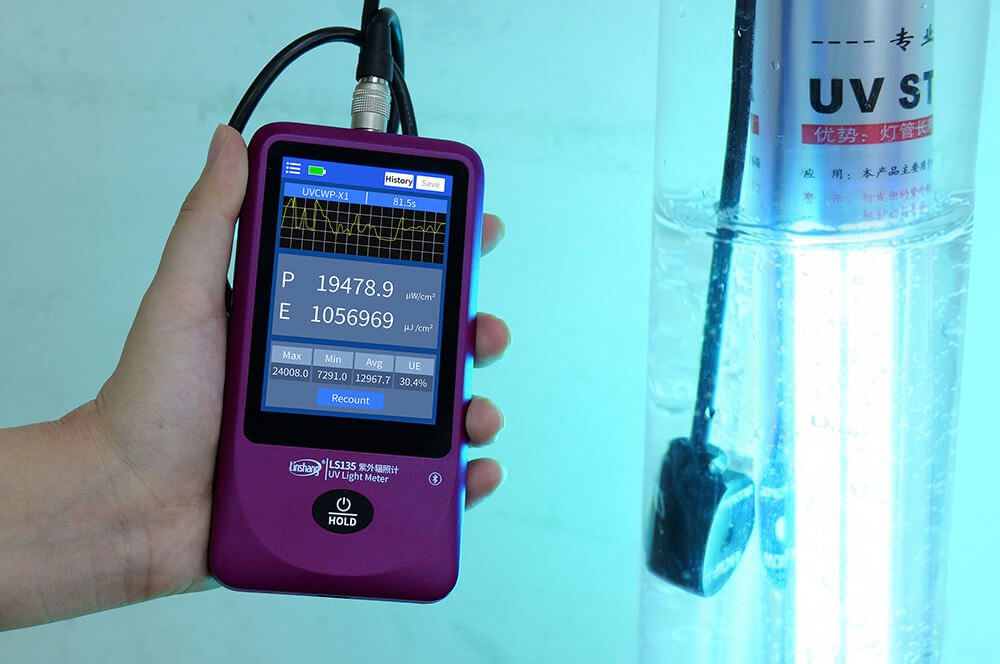

With this intelligent measurement method, a UV light meter can display real-time irradiance, maximum value, and accumulated energy at the same time. It also supports high-speed multi-point sampling, allowing multiple data points to be collected and displayed as a dynamic curve for better analysis of UV light intensity measurement trends.

A UV radiometer (or UV light meter) is essential for quality control, cost management, and compliance in UV curing and disinfection processes.

1. Ensure Consistent Product Quality

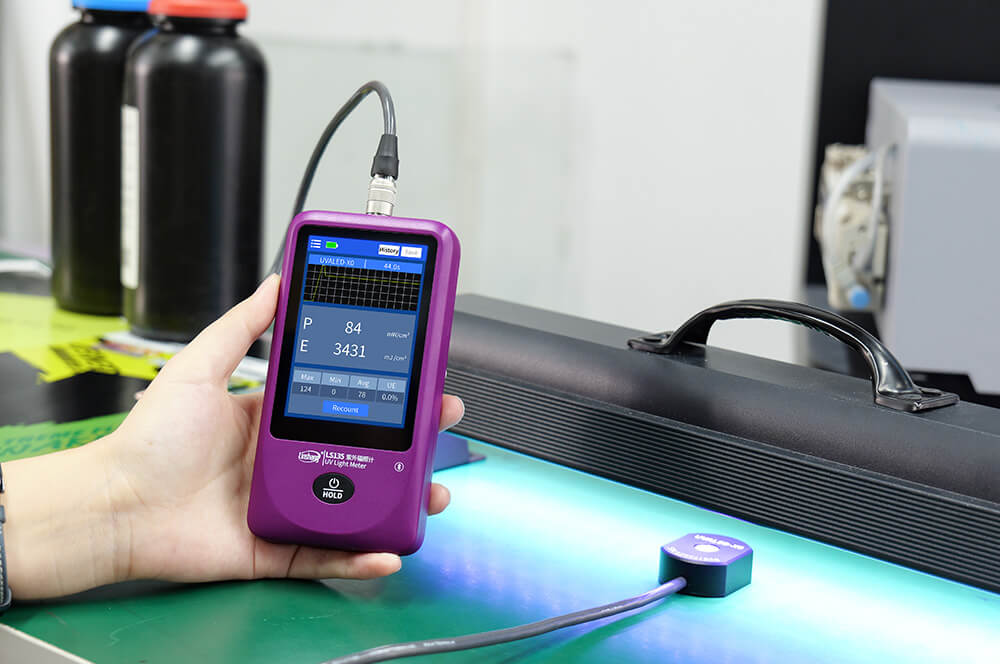

   In UV curing and sterilization, UV intensity directly affects the final result. A UV radiometer allows accurate UV light measurement of intensity and energy, helping you control process parameters and keep product quality consistent across batches.

2. Monitor Light Source Degradation

   Both UV mercury lamps and UV LED lights lose output over time. This can lead to incomplete curing or reduced disinfection performance. A UV light radiometer helps track changes in UV light intensity and lets you know when to replace the lamp or adjust exposure time.

3. Improve Production Efficiency

   With a UV radiometer, you can set the right curing time without repeated testing. This reduces rework and improves efficiency. It also prevents overexposure, helping save energy and lower costs.

4. Ensure Safety and Compliance

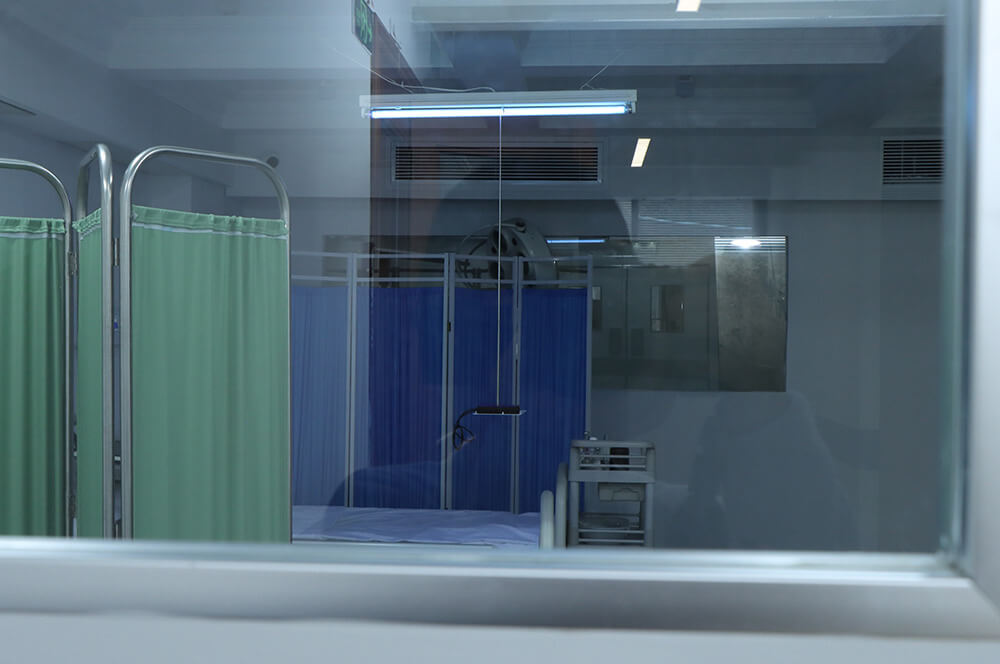

   UV radiation, especially UVC, can harm skin and eyes. A radiometer for UV light helps monitor exposure levels in the workplace. This reduces risk and helps meet safety standards and regulations.

5. Support Data-Driven Management

   A digital UV radiometer provides accurate data instead of relying on experience. It can track UV light intensity measurement over time, display trends, and store data. This supports better process control and traceability in modern production.

Choosing the right UV radiometer (or UV light meter) requires evaluating several key factors, including light source, performance parameters, application needs, and reliability. Here are the essential selection points:

1. Light Source

   First, identify the type and wavelength of the UV source, such as mercury lamps or UV LEDs, and whether you need to measure UVA, UVB, UVC, or multiple bands.

   The instrument’s spectral response must match the light source; otherwise, measurement results will be inaccurate.

2. Core Parameters

   Decide what you need to measure: whether only irradiance (power) for real-time intensity, or energy (dose) for accumulated exposure as well.

   Also check accuracy, resolution, measurement range, and sampling speed. These factors determine whether the device meets industry standards and ensures reliable UV light intensity measurement.

3. Application Scenario

   Choose the right structure based on your usage, such as split probe vs. integrated design, and whether it is used for online real-time monitoring or handheld spot checks.

   Consider environmental conditions such as high temperature, confined space, or continuous operation. Equipment should be suitable for the actual working environment.

4. Features and Functions

   Consider your needs for user experience and data management. Decide whether you need features like a touchscreen, data storage, or connectivity to a PC or mobile app for data import and export. These functions improve efficiency and enable better data analysis and traceability.

5. Calibration and Certification

   Choose a UV radiometer with certified calibration. Instruments verified by national or accredited laboratories ensure accuracy and traceability of measurements over time.

6. Brand and After-Sales Support

   Select a reliable manufacturer based on your budget and requirements. Good technical support, calibration services, and after-sales service are essential for long-term stable use.

In short, selecting a UV light meter is not just about price. It’s about matching the device to your application, ensuring accuracy, and supporting long-term process control.
